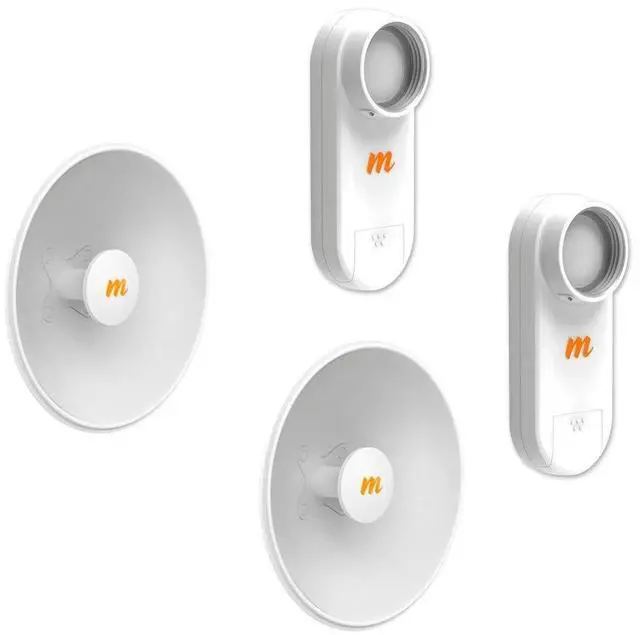

Mimosa Networks N5-X25 4.9-6.4 GHz Modular Twist-on Antenna 400mm Dish for C5x only 25 dBi gain 2Units with C5x 4.9-6.4GHz 8dBi Radio for PTMP/PTP 2Units

MODEL: N5-X25
(2Units) #Part number: 100-00089 The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection. The C5xs native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosas modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.
MODEL: C5x
(2Units) #Part number: 100-00085 The Mimosa C5x is the industrys most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra rugged solution provides extended frequency operation from 4.96. 4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased. Integrated Radio with Modular Antenna Options The C5x radios native 8 dBi gain can be increased to 12, 16, 20 or 25 dBi using Mimosas modular, N5-X, twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility! Incredible RF Performance Available with either Cassegrain or horn antenna options, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance.

Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection. Ultra Rugged The C5x, with its die-cast aluminum metal enclosure, dual pole mounts, and industrial-grade twist-on antenna options, is custom-engineered to reduce noise, withstand the outdoor elements and stay mounted in harsh wind and extreme weather.
