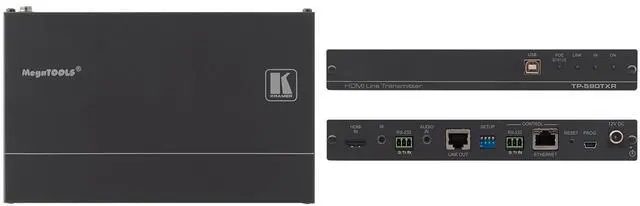

Kramer Electronics TP-590TXR

TP? 590TXR is a high? performance, extended? reach HDBaseT 2.0 transmitter for 4K60Hz (420) HDMI, USB, Ethernet, RS? 232, IR and stereo audio signals over twisted pair. The TP? 590TXR converts all input signals into the transmitted HDBaseT 2.0 signal. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (420) 24bpp video resolution and provides even further reach for lower HD video resolutions. FeaturesHigh Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures.

TP-590TXR is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables. HDMI Signal Extension - HDCP 1.4 compliant. Supports deep color, x. v. Color (TM), lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display. I-EDIDPro (TM) Kramer Intelligent EDID Processing (TM) - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.

Multi-channel Audio Transmission - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound. Audio Embedding (Adding) - A selectable analog unbalanced stereo audio input is converted into a digital signal and embedded (added) to the transmitted HDMI signal, replacing the embedded HDMI audio input signal. This enables embedding a selectable audio source over HDMI. For example, a presenter can display a video clip and temporarily override the audio of the source media with another audio source, such as from a microphone. USB Extension - USB 2.0 interface data flows in both directions, allowing extension of HID (Human Interface Devices) peripheral devices, such as a mouse or a keyboard.

High-bandwidth USB peripheral devices, such as
