Altronix AL400ULXB2 Power Supply Charger, Single Class 2 Power Output, Filtered and Electronically Regulated Output, 12VDC @ 4A or 24VDC @ 3A Supply Current, Input 115VAC, Board

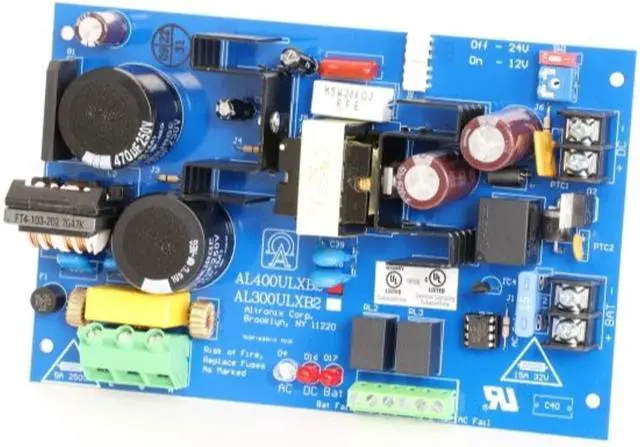

Altronix AL400ULXB2 Power Supply Charger, Single Class 2 Power Output, Filtered and Electronically Regulated Output, 12VDC @ 4A or 24VDC @ 3A Supply Current, Input 115VAC, BoardAltronix AL400ULXB2 UL Listed Sub-Assembly power supply/charger converts a 115VAC, 60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision. Key Features- Input 115VAC, 60Hz, 3A- Input fuse rated @ 3.5A /250V- 12VDC or 24VDC selectable output- 12VDC @ 4A or 24VDC @ 3A supply current- Class 2 Rated power limited output- Filtered and electronically regulated output- Short circuit and thermal overload protection- Built-in charger for sealed lead acid or gel type batteries- Automatic switch over to stand-by battery when AC fails- AC fail supervision (form "C" contacts)- Notification trigger is selectable for 30 seconds (factory set) or 6 hours- Low battery supervision (form "C" contacts)- Battery presence supervision (form "C" contacts)- AC input, DC outputand Battery LED indicatorsSpecifications-
Operating: 0C to 49C (32F to 120F) -
Storage: - 20 C to 70 C (-4F to 158F)- Relative Humidity 85% +/- 5%- BTU/Hr (approx. ):
12VDC: 25 BTU/Hr.,
24VDC: 37 BTU/Hr. - System AC input
VA requirement: 402.5VA -
Dimensions: 4.5"W x 7.1"L x 1.44"H (114 x 180 x 37mm) -
Weight: 1.4 Lbs ( 0.64 kg)-
Shipping Weight: 1.6 Lbs ( 0.73 kg)
