$51.99
Most customers receive within 5-9 days.
Meet Your Seller

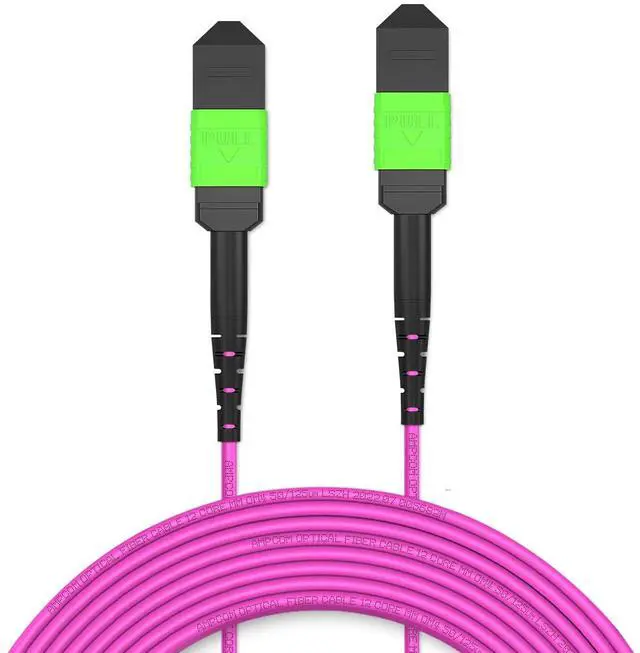

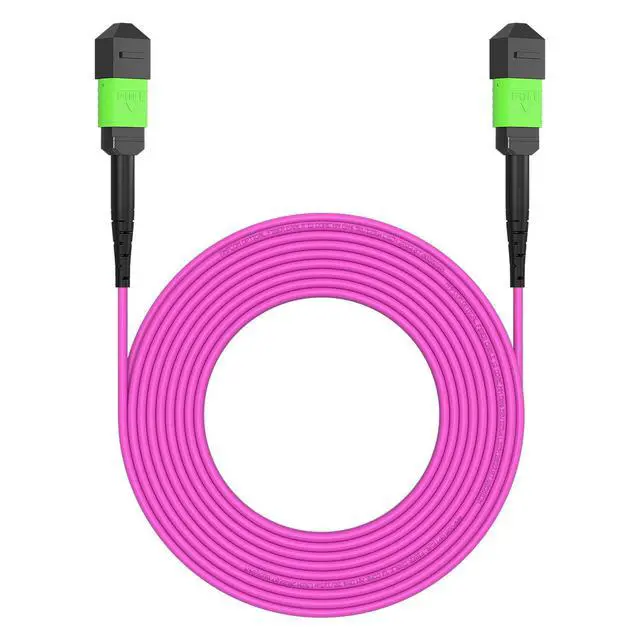

AMPCOM MPO to MPO Trunk Cable 50/125m Multimode OM4 (12 Fiber, MPO to MPO Female, Type B, LSZH/Riser, APC, Magenta) 3m (9ft)
- High quality grade A fiber cable with 10mm Min. Bend Radius
- LSZH OFNR rated outer jacket, fire resistance and low smoke to minimize damage
- IEC-61754-7 and TIA-604-5 (FOCIS-5)
- Ideal for 1G/10G/40G/100G Indoor Connections
- High density cabling for various environments
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AMPCOM 40GB 50/125 Multimode OM4 MPO Fiber Optic Trunk Cable ( 8, 12, 24 Fiber, MPO to MPO Female, Type B, LSZH, APC, Magenta)Fiber
Type: 50/125mInsertion
Loss: 0.3 dBReturn
Loss:
30dBColor:
MagentaWavelength: 850/1300nm1G
Ethernet Distance: 400m at 850nm10G
Ethernet Distance: 150m at 850nmGlass
Fiber: Corning
ClearCurve FiberAramid Yarn: DuPont
KevlarCable OD:
3MMJacket: LSZH
Bend Radius (Fiber core): 10mm Min.
Tensile Strength: 80NOperating
Temperature: -10 to +70C (14 to 158)
Storage Temperature: -40 to +85C (-40 to 185)FeaturesFactory-terminated provide consistent quality, high performance and reduce installation time100% tested for low insertion loss performance and high back reflectionFiber
Count: 12 Fiber trunk cableType B polarity use in 1G SFP SR4, 10G SFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver opticsOptimized performance available in elite MTP and discrete premium connector upon requestStandards
Compliance: RoHS, CE (EN 50575 CPR), ISO9001, WEEE Compliant EIA/TIA, Telecocordia GR-326-CORE Standards, IEC61754-7, TIA 605-4 (FOCIS 5), YD/T 1272.5LSZH Jacket by Default
Type: 50/125mInsertion
Loss: 0.3 dBReturn
Loss:
30dBColor:
MagentaWavelength: 850/1300nm1G
Ethernet Distance: 400m at 850nm10G
Ethernet Distance: 150m at 850nmGlass
Fiber: Corning
ClearCurve FiberAramid Yarn: DuPont
KevlarCable OD:
3MMJacket: LSZH
Bend Radius (Fiber core): 10mm Min.
Tensile Strength: 80NOperating
Temperature: -10 to +70C (14 to 158)
Storage Temperature: -40 to +85C (-40 to 185)FeaturesFactory-terminated provide consistent quality, high performance and reduce installation time100% tested for low insertion loss performance and high back reflectionFiber
Count: 12 Fiber trunk cableType B polarity use in 1G SFP SR4, 10G SFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver opticsOptimized performance available in elite MTP and discrete premium connector upon requestStandards
Compliance: RoHS, CE (EN 50575 CPR), ISO9001, WEEE Compliant EIA/TIA, Telecocordia GR-326-CORE Standards, IEC61754-7, TIA 605-4 (FOCIS 5), YD/T 1272.5LSZH Jacket by Default
