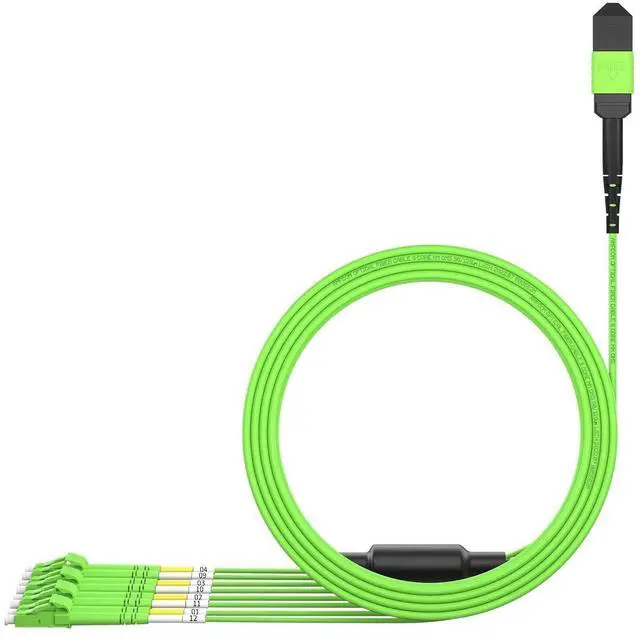

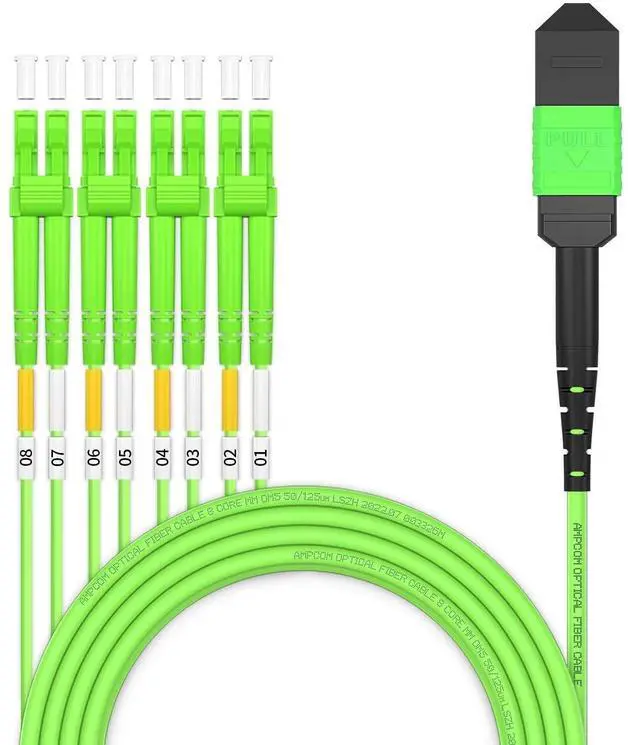

AMPCOM MPO to LC Breakout Cable 50/125m Multimode OM5(8 Fiber, MPO to LC, Type B, LSZH/Riser, UPC, Lime Green) 2m (6ft)
- High quality grade A fiber cable with 10mm Min. Bend Radius
- LSZH OFNR rated outer jacket, fire resistance and low smoke to minimize damage
- IEC-61754-7 and TIA-604-5 (FOCIS-5)
- Ideal for 1G/10G/40G/100G Indoor Connections
- High density cabling for various environments
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AMPCOM 10/40Gb OM5 50/125 Multimode MPO Female to LC UPC Breakout Cable ( 12 Fibers, Type B, LSZH, UPC, Aqua)

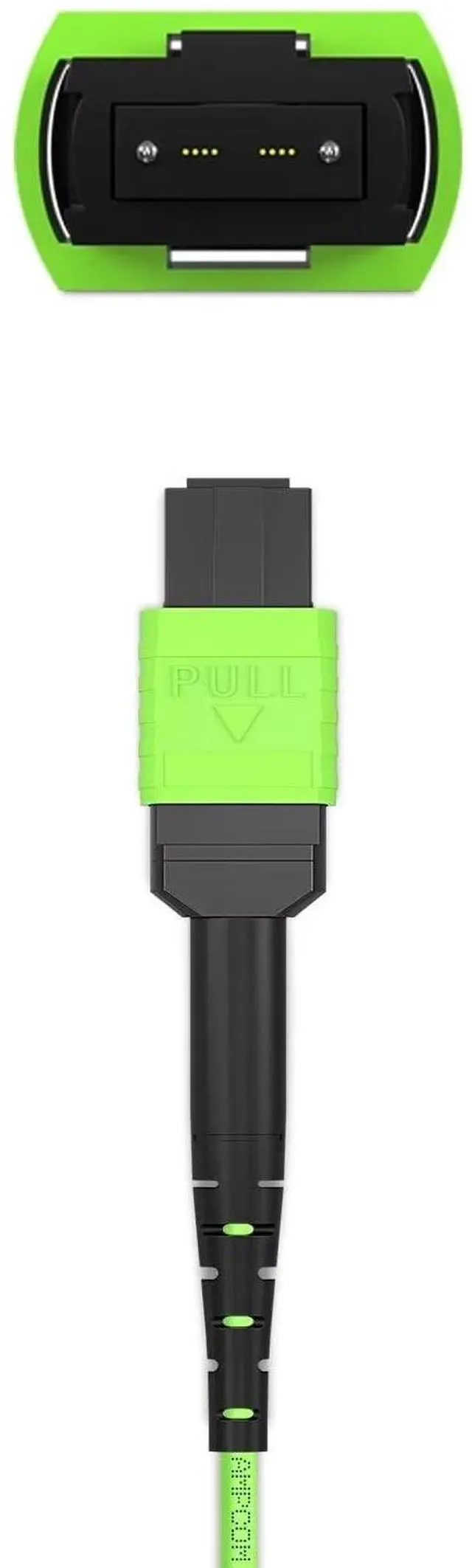

Connector A: MPO UPC
Connector B: LC
Glass Fiber: Corning
ClearCurveR Fiber Fiber Type: 50/125um
Insertion Loss: 0.3 dB
Return Loss: 30dB
Color: Aqua
Wavelength: 850/1300nm 10G
Ethernet Distance: 300m at 850nm 40G
Ethernet Distance: 100m at 850nm
Glass Fiber: Corning
ClearCurveR Fiber Aramid Yarn: DuPont KevlarR
Cable OD: 3MM
Jacket: LSZH
Bend Radius (Fiber core): 10mm Min.
Tensile Strength: 80N
Operating Temperature: -10 to +70C (14 to 158)
Storage Temperature: -40 to +85C (-40 to 185) Features Factory-terminated provide consistent quality, high performance and reduce installation time 100% tested for low insertion loss performance and high back reflection
Fiber Count: 12 Fiber breakout cable Type B polarity use in 1G SFP SR4, 10G SFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver optics Optimized performance available in elite MTP and discrete premium connector upon request
Standards Compliance: RoHS, CE (EN 50575 CPR), ISO9001, WEEE Compliant EIA/TIA, Telecocordia GR-326-CORE Standards, IEC61754-7, TIA 605-4 (FOCIS 5), YD/T 1272.5 LSZH Jacket by Default
Connector A: MPO UPC
Connector B: LC
Glass Fiber: Corning
ClearCurveR Fiber Fiber Type: 50/125um
Insertion Loss: 0.3 dB
Return Loss: 30dB
Color: Aqua
Wavelength: 850/1300nm 10G
Ethernet Distance: 300m at 850nm 40G
Ethernet Distance: 100m at 850nm
Glass Fiber: Corning
ClearCurveR Fiber Aramid Yarn: DuPont KevlarR
Cable OD: 3MM
Jacket: LSZH
Bend Radius (Fiber core): 10mm Min.
Tensile Strength: 80N
Operating Temperature: -10 to +70C (14 to 158)
Storage Temperature: -40 to +85C (-40 to 185) Features Factory-terminated provide consistent quality, high performance and reduce installation time 100% tested for low insertion loss performance and high back reflection
Fiber Count: 12 Fiber breakout cable Type B polarity use in 1G SFP SR4, 10G SFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver optics Optimized performance available in elite MTP and discrete premium connector upon request
Standards Compliance: RoHS, CE (EN 50575 CPR), ISO9001, WEEE Compliant EIA/TIA, Telecocordia GR-326-CORE Standards, IEC61754-7, TIA 605-4 (FOCIS 5), YD/T 1272.5 LSZH Jacket by Default
