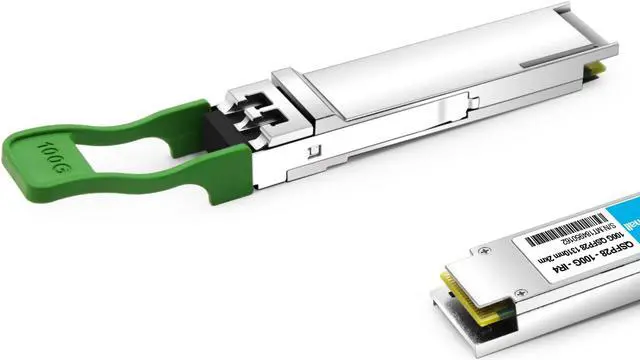

100G QSFP28 CWDM4 for Mellanox MMA1L30-CM, 100GBASE-CWDM4,QSFP28 Optical Transceiver Module 1310nm 2km LC SMF DOM
- [(100G QSFP28)] Mellanox 100Gigabit Ethernet, coding asMellanox MMA1L30-CM, also compatible
- [(100GBASE-CWDM4)] QSFP28 transceiver module, 100Gbps, single mode,1271nm, 1291nm, 1311nm and 1331nm, 2km, LC connector, full-duplex, Hot Pluggable, support DOM
- [(Protocols)] IEEE 802.3ba, MSA Compliant QSFP28 MSA and 100GBASE-CWDM4 and ITU-T G.694.2 standard.
- [(3 Warranty)] 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
- [(Customization)] Fibermall supports regular custom service for your options
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
As a QSFP28 transceiver module, Fiber Mall QSFP-100G-SM-SR-Me is applied for 2km transmission in 100 Gigabit Ethernet links over single mode fiber (SMF) with duplex LC connectors. The module adopts multiplexing and demultiplexing of the four wavelengths to achieve signal transfer.
It is fully compliant with the IEEE 802.3 ba 100GBASE-CWDM4 standard and QSFP28 MSA.
Product Features
v Mellanox Genuine: QSFP-100G-CWDM4-S
v Vendor Name: Fiber Mall
v Hot-pluggable QSFP28 form factor
v Supports 103.1G b/s, each lane bit rate 25.78 Gb/s
v Up to 2km transmission on single mode fiber (SMF) with FEC
v LAN WDM DFB laser and PIN receiver
v I2C interface with integrated Digital Diagnostic monitoring
v QSFP28 MSA package with duplex LC connector
v Single + 3.3V power supply
v 4 CWDM lanes MUX/DEMUX design
v 100G CWDM4 MSA Technical Spec Rev 1.1
v Maximum power consumption 3.5W
v Operating case temperature: 0 to +70degC
v Complies with EU Directive 2011/65/EU (RoHS 6/6)
Application
v Data Center Interconnect
v 100G Ethernet
v Infiniband QDR and DDR interconnects
v Enterprise networking
Package

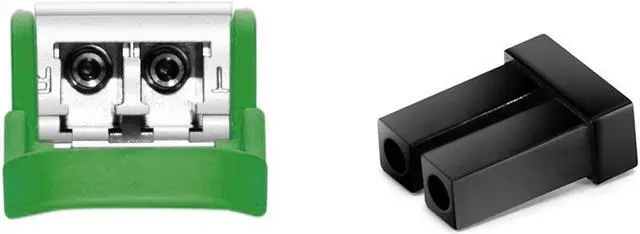

v 1*sfp dust cover
v 1 *pair 100Gbps cwdm4 fiber transceiver module
v 1* package box
It is fully compliant with the IEEE 802.3 ba 100GBASE-CWDM4 standard and QSFP28 MSA.
Product Features
v Mellanox Genuine: QSFP-100G-CWDM4-S
v Vendor Name: Fiber Mall
v Hot-pluggable QSFP28 form factor
v Supports 103.1G b/s, each lane bit rate 25.78 Gb/s
v Up to 2km transmission on single mode fiber (SMF) with FEC
v LAN WDM DFB laser and PIN receiver
v I2C interface with integrated Digital Diagnostic monitoring
v QSFP28 MSA package with duplex LC connector
v Single + 3.3V power supply
v 4 CWDM lanes MUX/DEMUX design
v 100G CWDM4 MSA Technical Spec Rev 1.1
v Maximum power consumption 3.5W
v Operating case temperature: 0 to +70degC
v Complies with EU Directive 2011/65/EU (RoHS 6/6)
Application
v Data Center Interconnect
v 100G Ethernet
v Infiniband QDR and DDR interconnects
v Enterprise networking
Package
v 1*sfp dust cover
v 1 *pair 100Gbps cwdm4 fiber transceiver module
v 1* package box
