4 Doors IP Based Security Access Control Kit with Metal Case 110V Power Box RFID Reader+Infrared Exit Button+Desktop Enroll Reader+RFID Keychains/Cards Phone APP remotely Open Door
- Control 4 doors, get in door by swiping card, and get out door by Infrared button,Can Store/download/check Entry records. Exit button can perfect install on US electrical box.
- Control capacity up to 20,000 user / up to 100,000 logs. Auto Open/Close at any pre-set time during any day.
- Have smart phone APP to open lock remotely for iPhone and Android. Have Desktop USB reader,read card number into software so that easy programming/register user. Detail video guide and wire diagram make all easily. You can DIY.
- Reader is weatherproof. <0.2 second read Speed, 5-10cm Proximity Range.Support "who" can enter which door at certain time, Authorized access control.
- Network communication via TCP/IP. Software Supportable Database: Access & SQL Server. Support Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system.
+
+
Overview
Specs
Reviews
We provide video guide+Detail wire diagram, so you can easily setup System, also provide live support.

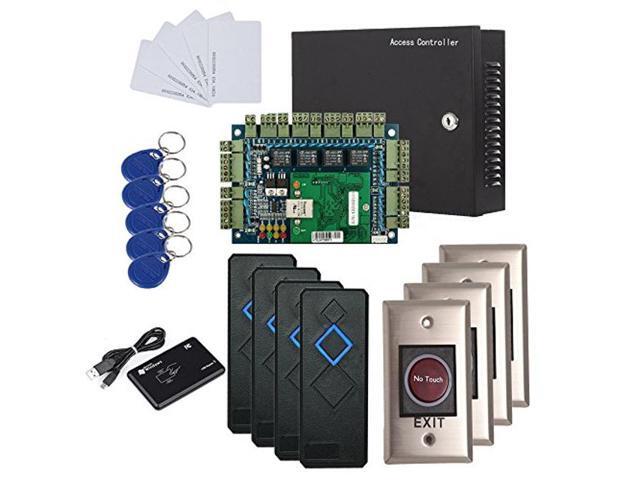

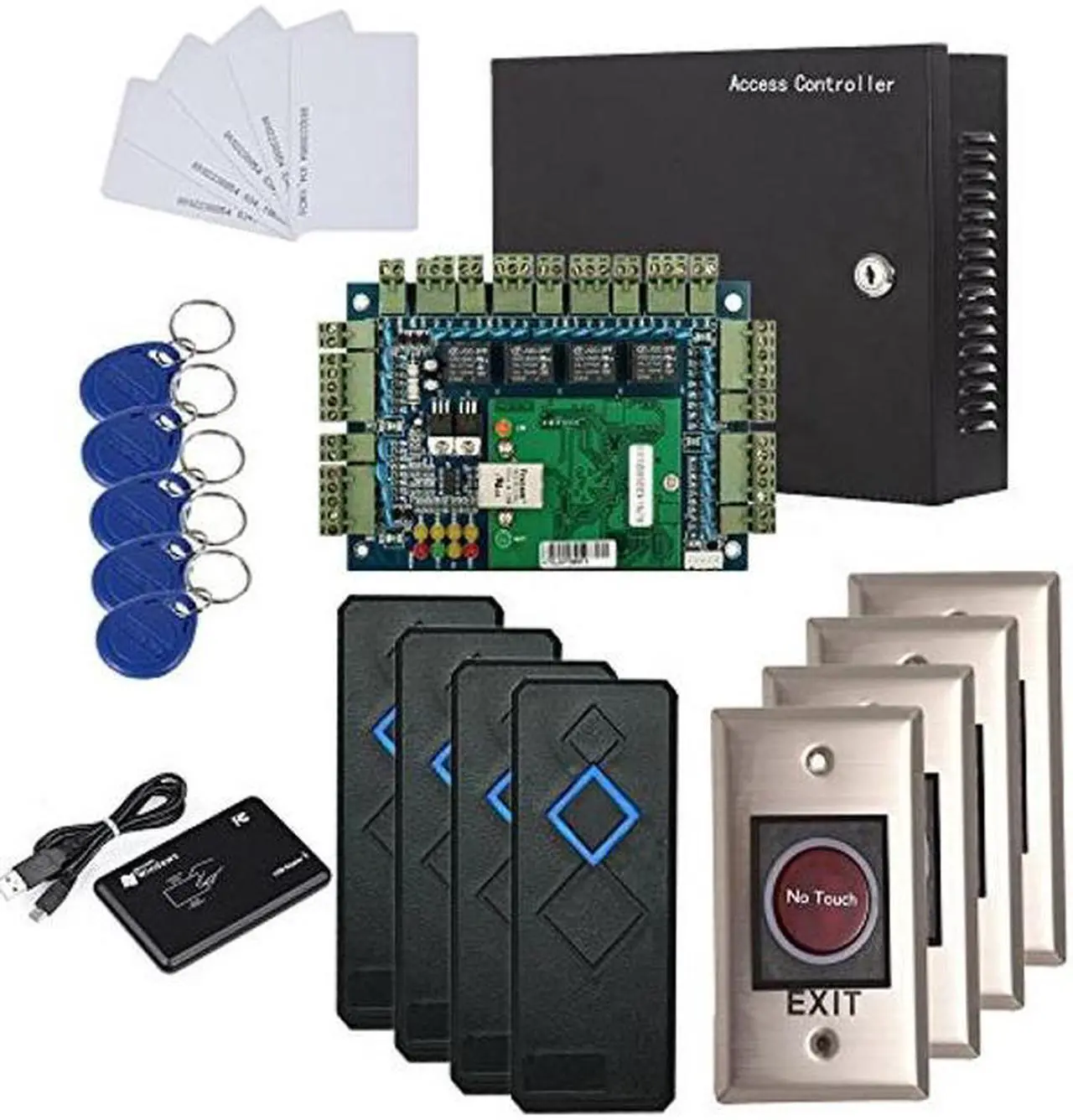

Package: 1 x 4 Door Access control Panel4 x RFID Reader (waterproof) 1 x Power supply Box( 110-240V input, 5A output, to power the system, also as cabinet for control board)1 x RFID Enroll USB Reader4 x Infrared Exit Button50 x RFID Keychains50 x RFID Cards1 x CD for Software/User manual/Wire diagram/Video
GuideUSB RFID Card Reader: Desktop USB reader, read card number into software so that easy programming/register userSupport: EM4100/EM4001/TK4100
ID cardDimension: 105x70x12mmPower

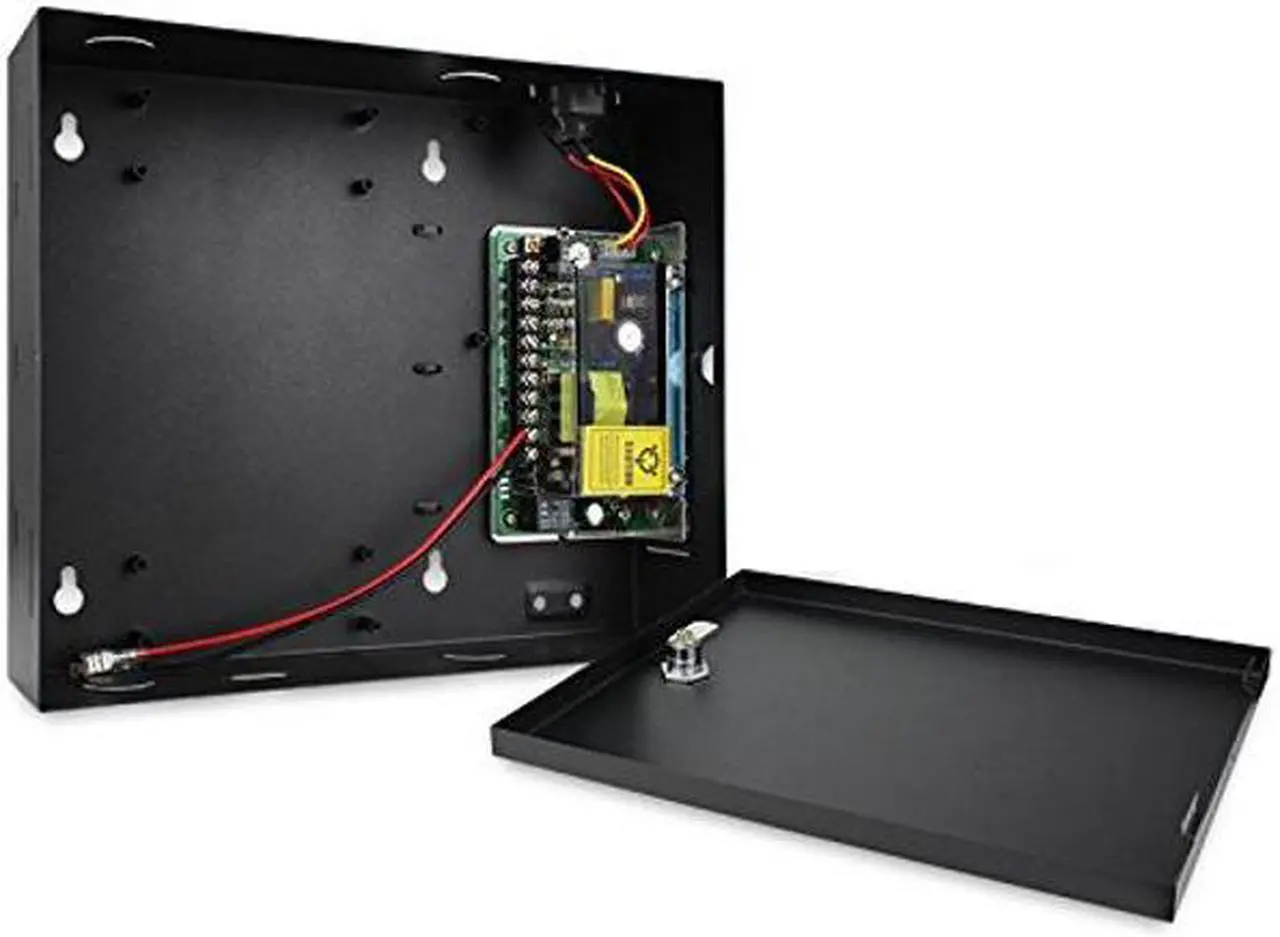

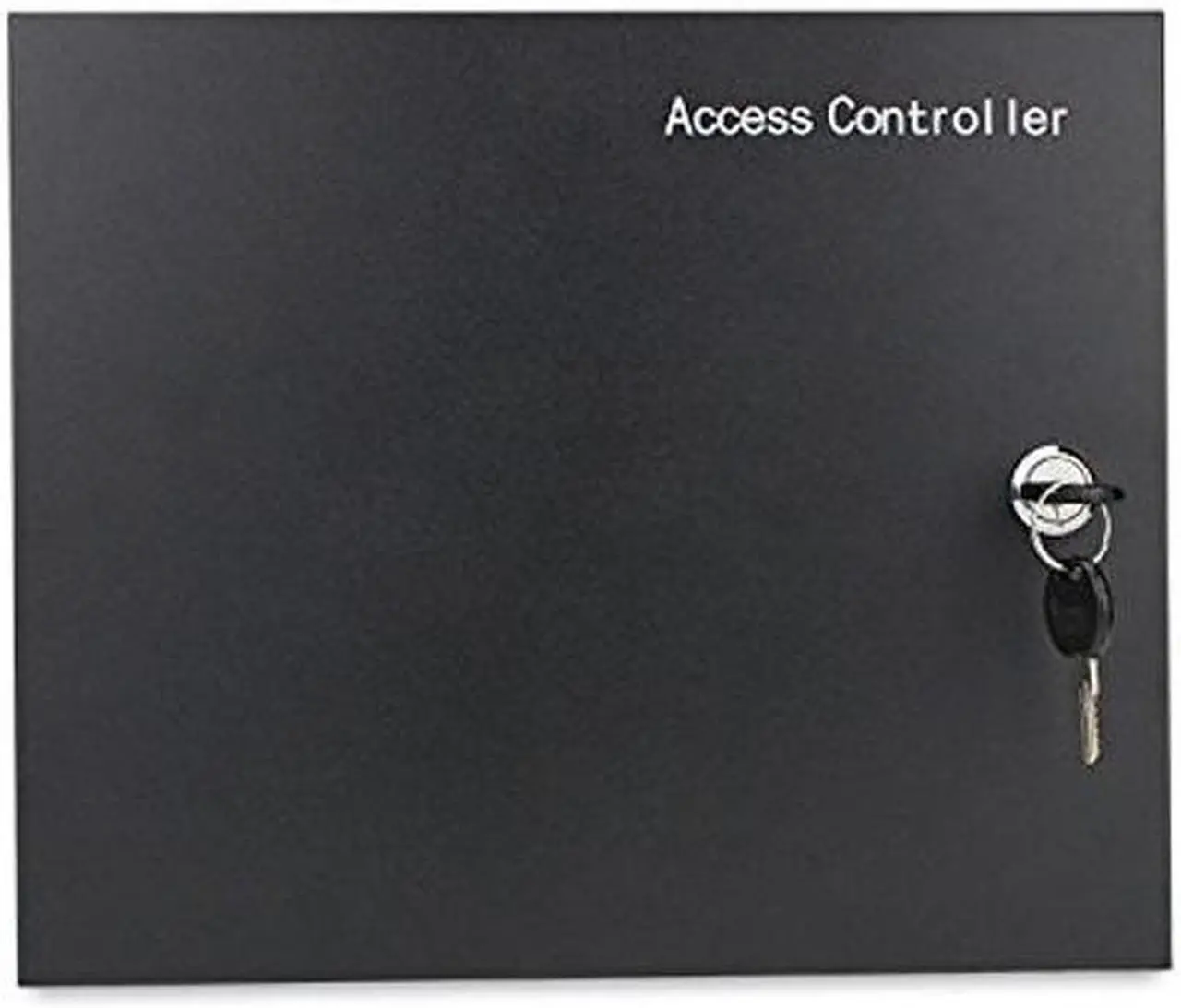

Supply Box:
Power: 60W,
Rated Current: 5AInput
Voltage: 110V-240V,
Output Voltage: 12VDC
Color of the box: blackSize

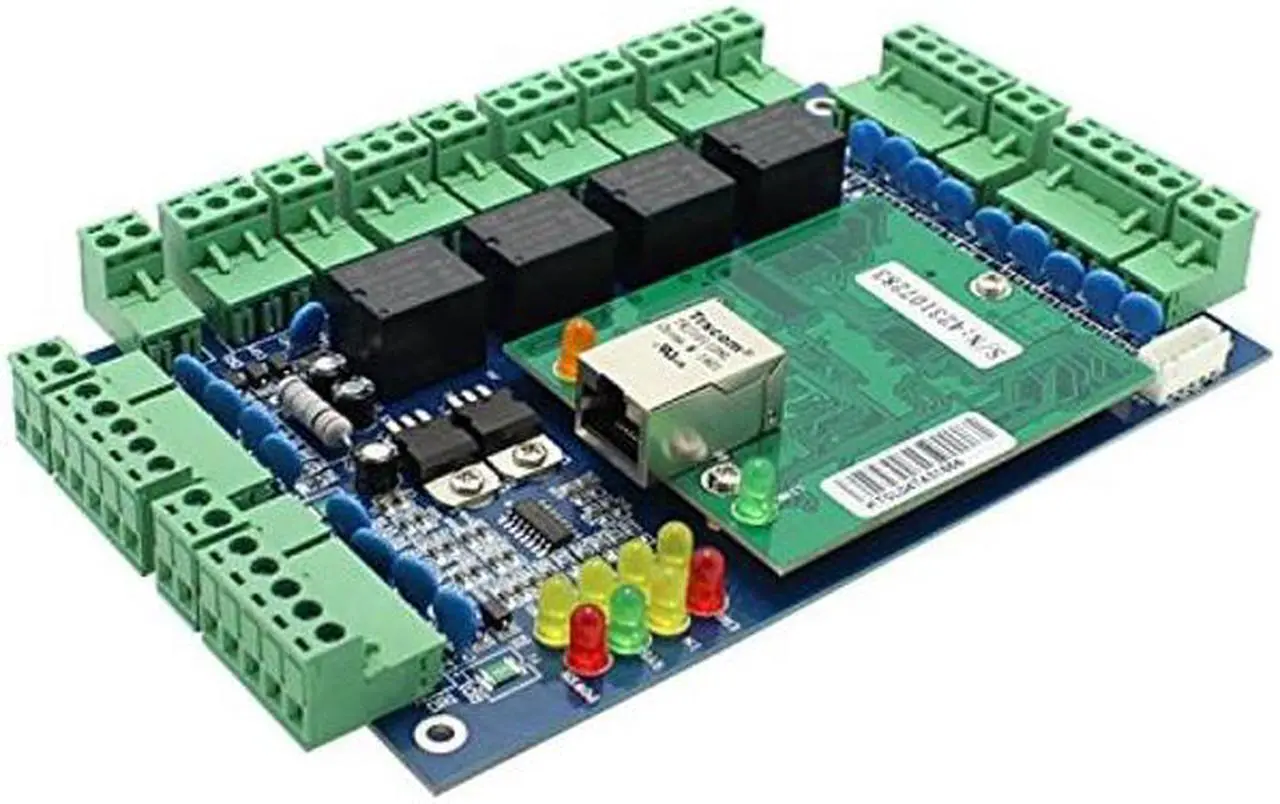

of the box: 279mm * 234mm * 67mmAccess-Control-Panel-Controller
Feature: Control 4 door, get in by swiping card and get out door by buttonDoor controlled: 4Support 4 readersControl of memory up to 40, 000 user / up to 100, 000 event buffersNetwork communication via
TCP/IPThe RFID Proximity Reader:

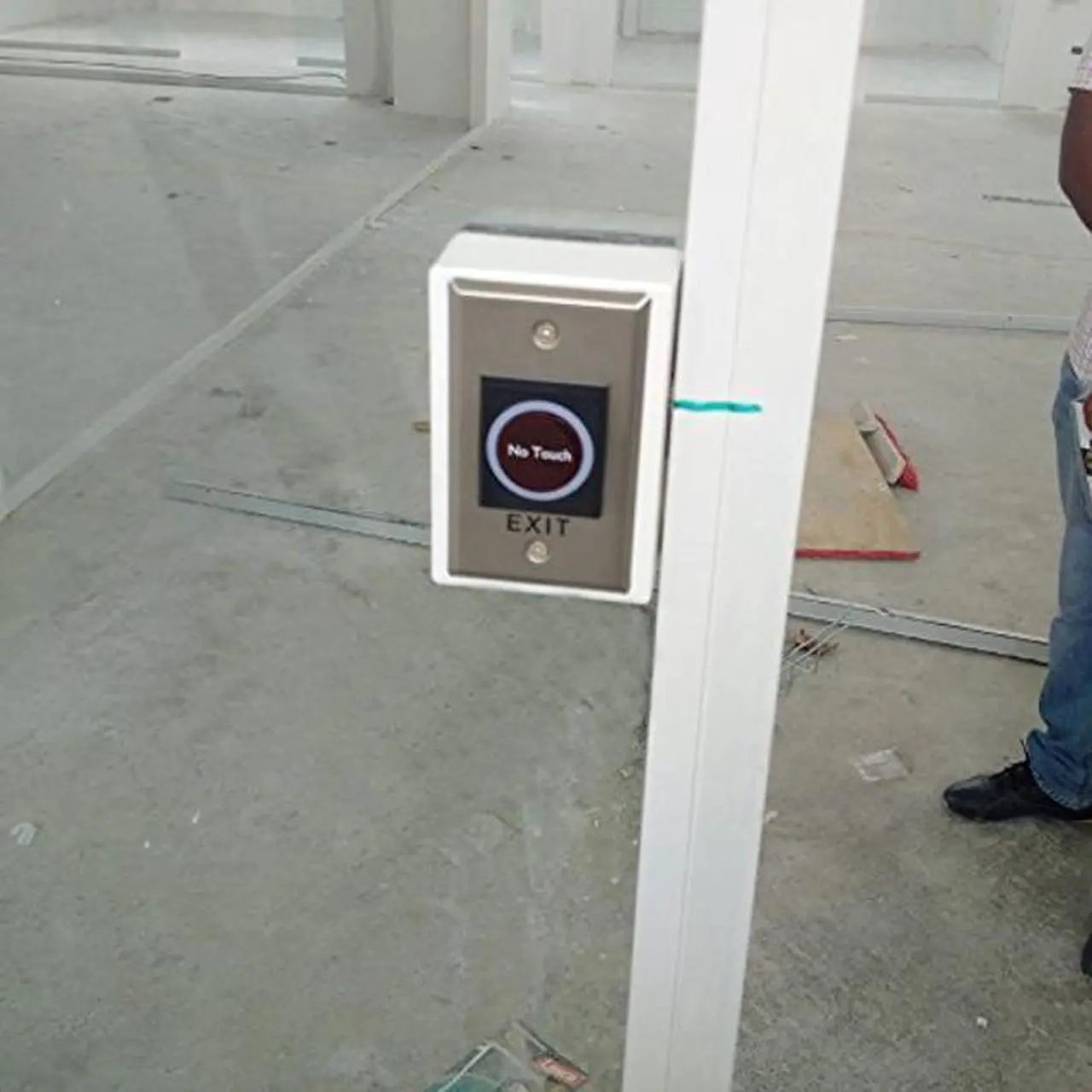

Size: 102*43*16 (mm) Less than 0.2 second Response Speed, 5-10cm Proximity RangeBuilt-in Antenna& LED (Double Color LED) &Loud Speaker (Buzzer) DC 9V-16V Working Voltage. Standard 12V, 70mA Working CurrentIt's Water-ProofInfrared Exit
Button
Contact Rating: 3A/AC120V, DC30VInput
Voltage: DC12VOperation
temperature range:
-20C-55CLife: 500, 000
TimesDimension: 114mm
x 70mm x 29mmWeight: 85g125KHz RFID ID Cards /
Keyfobs: These are 125KHz RFID Proximity Keyfobs / ID cards, they can work with the product which has 125Khz RFID card reader.
Water resistantDetecting distance: 3-10cmOperation
frequency: 125Khz
Package: 1 x 4 Door Access control Panel4 x RFID Reader (waterproof) 1 x Power supply Box( 110-240V input, 5A output, to power the system, also as cabinet for control board)1 x RFID Enroll USB Reader4 x Infrared Exit Button50 x RFID Keychains50 x RFID Cards1 x CD for Software/User manual/Wire diagram/Video
GuideUSB RFID Card Reader: Desktop USB reader, read card number into software so that easy programming/register userSupport: EM4100/EM4001/TK4100
ID cardDimension: 105x70x12mmPower
Supply Box:
Power: 60W,
Rated Current: 5AInput
Voltage: 110V-240V,
Output Voltage: 12VDC
Color of the box: blackSize
of the box: 279mm * 234mm * 67mmAccess-Control-Panel-Controller
Feature: Control 4 door, get in by swiping card and get out door by buttonDoor controlled: 4Support 4 readersControl of memory up to 40, 000 user / up to 100, 000 event buffersNetwork communication via
TCP/IPThe RFID Proximity Reader:
Size: 102*43*16 (mm) Less than 0.2 second Response Speed, 5-10cm Proximity RangeBuilt-in Antenna& LED (Double Color LED) &Loud Speaker (Buzzer) DC 9V-16V Working Voltage. Standard 12V, 70mA Working CurrentIt's Water-ProofInfrared Exit
Button
Specifications
: No touch / Touch free Exit Sensor (Diffused Detection)Contact Rating: 3A/AC120V, DC30VInput
Voltage: DC12VOperation
temperature range:
-20C-55CLife: 500, 000
TimesDimension: 114mm
x 70mm x 29mmWeight: 85g125KHz RFID ID Cards /
Keyfobs: These are 125KHz RFID Proximity Keyfobs / ID cards, they can work with the product which has 125Khz RFID card reader.
Water resistantDetecting distance: 3-10cmOperation
frequency: 125Khz
