AVMATRIX SE1217 SDI Streaming Encoder; Supports Stream Encode Protocol, Up to 1080p60hz; Video and Audio Streaming or Single Audio Streaming; Image and Text Overlay; Mirror Image & Upside-Down Image

AVMATRIX SE1217 H. 265/H. 264 HDMI Streaming Encoder; 1x HDMI Iinput, 1x HDMI Loop Out, 1x Analog Audio Input; Supports H. 265/H. 264 Stream Encode Protocol, Up to 1080p60hz; Image and Text OverlayKey Features- 1x HDMI input, 1x HDMI loop out, 1x Analog audio input- Supports H. 265/H. 264 stream encode protocol, up to 1080p60hz- Dual-stream (main stream and sub stream) - RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast- Video and audio streaming or single audio streaming- Image and text overlay- Mirror image & upside-down image- Live stream with no need for connecting a computerSpecifications-
Video Input: HDMI Type A x1-
Video Loop Out: HDMI Type A x1-
Analog Audio In: 3.5 mm (line in) x1-
Network: RJ-45 x1(100/1000Mbps self-adaptive Ethernet)- HDMI In
Format Support: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 / 23.976; 1080i 50/ 59.94 /60; 720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 576i 50, 576p 50, 480p 59.94 /60, 480i 59.94 /60-
Video Coding: H. 265/H.
264- Video Bitrate: 16Kbps ~ 12MKbps-
Audio Coding: ACC/MP3/MP2/G711-
Audio Bitrate: 24Kbps ~ 320Kbps-
Encoding Resolution: 1920x1080, 1680x1056, 1280x720, 1024x576, 960x540, 850x480, 720x576, 720x540, 720x480, 720x404, 720x400, 704x576, 640x480, 640x360- Encoding
Frame Rate: 5-60fps-
Network Protocols: HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT-
Configuration Management: Web configuration,
Remote upgrade- Consumption: 5W-
Temperature: Working
temp: -10C~60C,
Storage temp: -20C~70C-
Dimension (LxWxD): 104x 75.5 x 24.5 mm-
Net weight: 310g-
Gross weight: 690g-

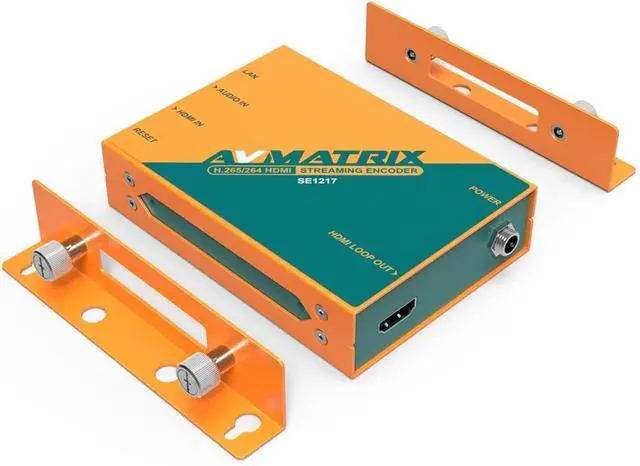

Accessories: 12V 2A power supply; Mounting bracket for optional
