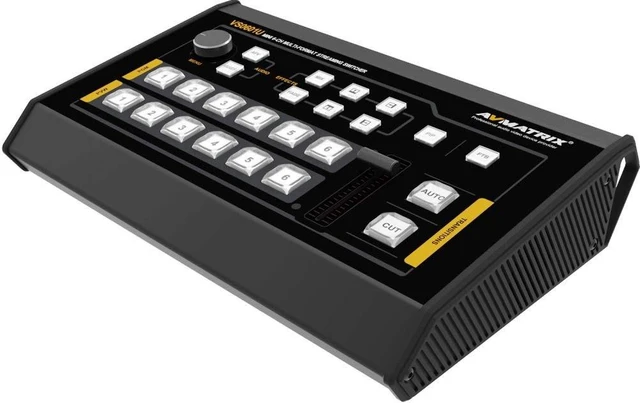

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-format Streaming Switcher
- AVMATRIX VS0601U Mini 6CH 4SDI and 2HDMI Inputs Multi-Format Streaming Switcher with 1USB Type-C Output and GPIO Interface for Tally System
- USB Capture For StreamingThe new VS0601U features with an added built-in USB Type-C output, when connecting with PC, it will work like a webcam for capturing uncompressed video and audio quality and streaming your production to various software and platforms. No driver needed, and compatible with Windows 7/8/10, Linux and Mac OS

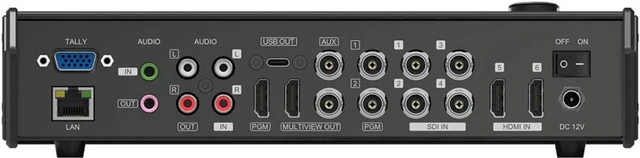

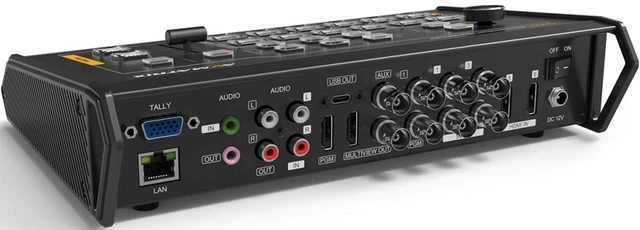

- Various Input&OutputThe VS0601U has 6 channel inputs including 4SDI&2HDMI. The outputs of it will satisfy shooters which includes 1USB Type-C output, 1HDMI PGM outputs, 1HDMI multiview outputs and 1SDI AUX output that can be selected as PGM or PVM.

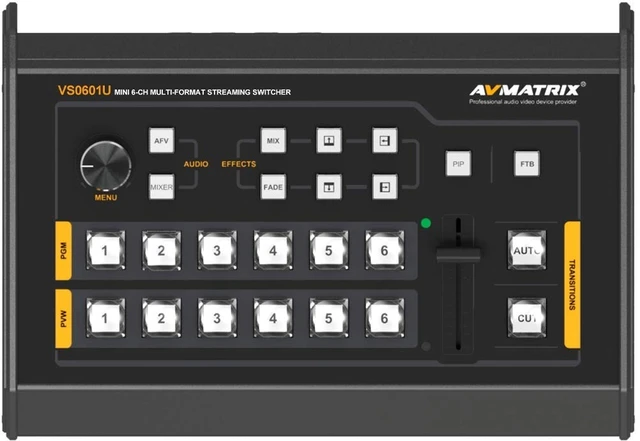

- Transition EffectsTransition between PVW and PGM with WIPE/MIX/FADE effect through T-Bar&AUTO.
- Other FunctionsSupport audio mixing and AFV mode. GPIO for Tally, FTB for emergency. Package Include1VS0601U Switcher, 1Portable Handbag, 112V DC Power Adapter.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
VS0601UMini 6CH SDI/HDMI Multi-format Streaming SwitcherUncompressed capture for live streaming, comply with
UVC & UAC6 channel inputs: 4xSDI & 2XHDMI1 xUSB type-C output, 2xSDI & 1 xHDMI PGM outputs, 1 xSDI & 1 xHDMI multiview outputs1 xSDI AUX output, can be selected as PGM or PVW
Multi-format input auto-detected and PGM outputs format selectableT-Bar/ AUTO/ CUT transitionsMix/ Fade/ Wipe transition effectsPIP mode size and position adjustableSupport audio MIXING and AFV modeGPIO for Tally, FTB for emergencyInputsVideo
Inputs: 43G/HD/SD-SDI, 2HDMISDI
Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.981080 psF 30/ 29.97 /25/24/ 23.981080 i 60/ 59.94 /50720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98625 i 50 PAL, 525i 59.94 NTSCHDMI
Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 / 23.9761080 i 50/ 59.94 /60720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98576 i 50, 576p 50Outputs
PGM Outputs: 23G/HD/SD-SDI; 1HDMI
Type APGM Output Format: 1080p 60/50/30/25/24 1080i 50/60Multiview
Output: 13G/HD/SD-SDI; 1HDMI
Type AMultiview Output Format: 1080p 60Audio
Audio Input: 13.5 mm Stereo audio; 1RCA(L/R)
Audio Output: 1RCA(L/R); 3.5 mm 1 Stere audioOthersOperation
Temperature: -20~60Storage
Temperature: -30~70Operation
Humidity: 20%~70%RH
Dimension: 249.2172.
355mmWeight: 1kgAccessories1Power Supply (DC12V 5A) 1User Manual
UVC & UAC6 channel inputs: 4xSDI & 2XHDMI1 xUSB type-C output, 2xSDI & 1 xHDMI PGM outputs, 1 xSDI & 1 xHDMI multiview outputs1 xSDI AUX output, can be selected as PGM or PVW
Multi-format input auto-detected and PGM outputs format selectableT-Bar/ AUTO/ CUT transitionsMix/ Fade/ Wipe transition effectsPIP mode size and position adjustableSupport audio MIXING and AFV modeGPIO for Tally, FTB for emergencyInputsVideo
Inputs: 43G/HD/SD-SDI, 2HDMISDI
Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.981080 psF 30/ 29.97 /25/24/ 23.981080 i 60/ 59.94 /50720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98625 i 50 PAL, 525i 59.94 NTSCHDMI
Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 / 23.9761080 i 50/ 59.94 /60720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98576 i 50, 576p 50Outputs
PGM Outputs: 23G/HD/SD-SDI; 1HDMI
Type APGM Output Format: 1080p 60/50/30/25/24 1080i 50/60Multiview
Output: 13G/HD/SD-SDI; 1HDMI
Type AMultiview Output Format: 1080p 60Audio
Audio Input: 13.5 mm Stereo audio; 1RCA(L/R)
Audio Output: 1RCA(L/R); 3.5 mm 1 Stere audioOthersOperation
Temperature: -20~60Storage
Temperature: -30~70Operation
Humidity: 20%~70%RH
Dimension: 249.2172.
355mmWeight: 1kgAccessories1Power Supply (DC12V 5A) 1User Manual
