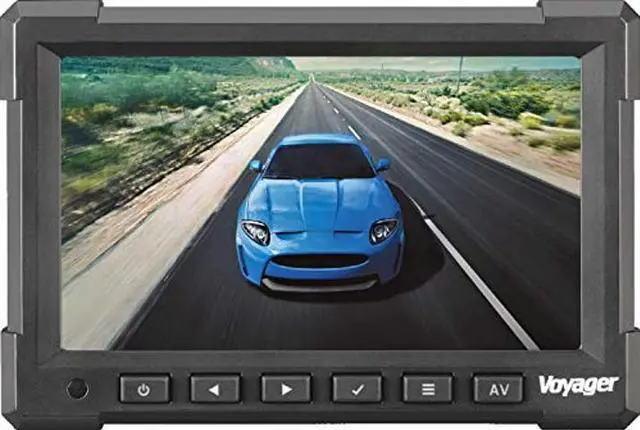

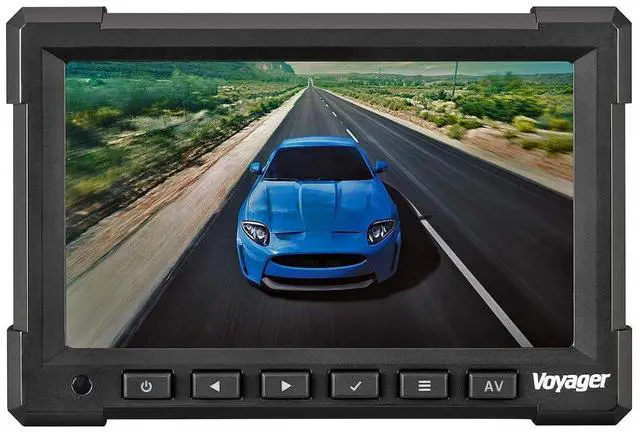

Voyager VOM718 7" LCD Color Backup Rear View Vehicle Observation Monitor w/ 3 Camera Inputs, Video for up to 3 Cameras (Cameras Sold Separately), NTSC/PAL Compatible, 12V - 24V Compatible
- High Performance Automotive Grade 7" Wide-View Color LCD panel. Energy-efficient, white LED illumination. Back-lit controls
- Three camera (A/V) inputs. NTSC and PAL video signal compatible. Manual (pushbutton) or automatic (trigger) source selection
- Turn-signal (pulsed DC) compatible trigger inputs (AV2, AV3). Auto power ON (standby). On-Screen Display (OSD) for AV source, picture adjustment and volume level. Day/Night brightness modes
- Non-volatile memory for picture and volume adjustment settings. Multiple mounting options (AMPS compatible). Removable sun-visor included. Built-In Audio Speaker
- Compatible with Voyager Standard Cameras (Cameras sold separately)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Voyager VOM718 Heavy Duty 7" LCD Color Backup Rear View Vehicle Observation Monitor with 3 Camera Inputs, Video for up to 3 Cameras (Cameras sold separately), Turn-signal (pulsed DC) Compatible Trigger Inputs (AV2, AV3), LCD Panel 480 x 234, NTSC and PAL Video Signal Compatible, 12V and 24V Power System Compatible, Auto Day/Night Brightness Mode
This 7" Backup camera monitor displays clear, video for up to 3 cameras (Cameras sold separately).
When paired with up to 3 Voyager observation cameras, the VOM718 7" Rear View Monitor eliminates blind spots and aids drivers in backing up, changing lanes, and pulling into traffic by displaying high resolution color images of the vehicle's surroundings.
General
DC Operating Voltage Range: 10 ~ 24V
Current Draw @ 12V: Idle 100mA; Nominal 492mA; Maximum 507mA
Operating Temperature Range: -4°F to 149°F, -20°C to 65°C
Storage Temperature Range: -40°F to 176°F, -35° to 80°C
Operating Relative Humidity: 85%
Overall Dimensions: 7.56" W x 5.06" W x 1.10"
D Product Weight (unpackaged): 1.3 lbs.
Performance
Video Input Signal (Composite): 1Vp-p @ 75 ohms Audio Output: 1W
LCD Diagonal Size: 7"
Resolution: 480 x 234
Brightness: 450 nit
Contrast Ratio:
400: 1
View Angles: Top 55°, Bottom 65°, Left 70°, Right 70° Display Format (Aspect
Ratio): 16:9
Backlight Type: LED
Backlight Life (min): 20, 000
Hours Response Time: Rise 15 ms, Fall 20ms
Package includes 1x Voyager VOM718 Monitor Sun Shield 1x Wiring Cable 4x P/H Machine Screws M4X8mm
This 7" Backup camera monitor displays clear, video for up to 3 cameras (Cameras sold separately).
When paired with up to 3 Voyager observation cameras, the VOM718 7" Rear View Monitor eliminates blind spots and aids drivers in backing up, changing lanes, and pulling into traffic by displaying high resolution color images of the vehicle's surroundings.
General
Specifications
Power System: 12VDC Operating Voltage Range: 10 ~ 24V
Current Draw @ 12V: Idle 100mA; Nominal 492mA; Maximum 507mA
Operating Temperature Range: -4°F to 149°F, -20°C to 65°C
Storage Temperature Range: -40°F to 176°F, -35° to 80°C
Operating Relative Humidity: 85%
Overall Dimensions: 7.56" W x 5.06" W x 1.10"
D Product Weight (unpackaged): 1.3 lbs.
Performance
Specifications
Video / Display System: NTSC/PALVideo Input Signal (Composite): 1Vp-p @ 75 ohms Audio Output: 1W
LCD Diagonal Size: 7"
Resolution: 480 x 234
Brightness: 450 nit
Contrast Ratio:
400: 1
View Angles: Top 55°, Bottom 65°, Left 70°, Right 70° Display Format (Aspect
Ratio): 16:9
Backlight Type: LED
Backlight Life (min): 20, 000
Hours Response Time: Rise 15 ms, Fall 20ms
Package includes 1x Voyager VOM718 Monitor Sun Shield 1x Wiring Cable 4x P/H Machine Screws M4X8mm
