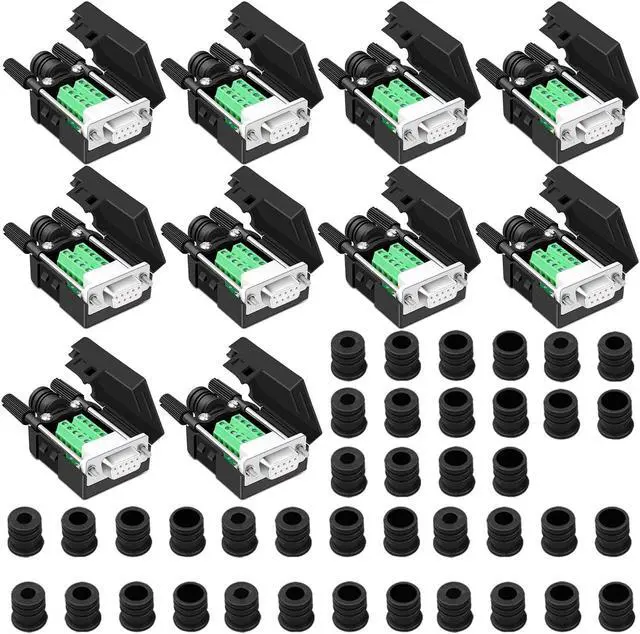

ANMBEST 10PCS DB9 Female Breakout Connector,DB9 Solderless RS232 D-SUB Serial to 9-pin Port Terminal Adapter Connector Breakout Board with Case Long Bolts Tail Pipe
- HIGH QUALITY&DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.

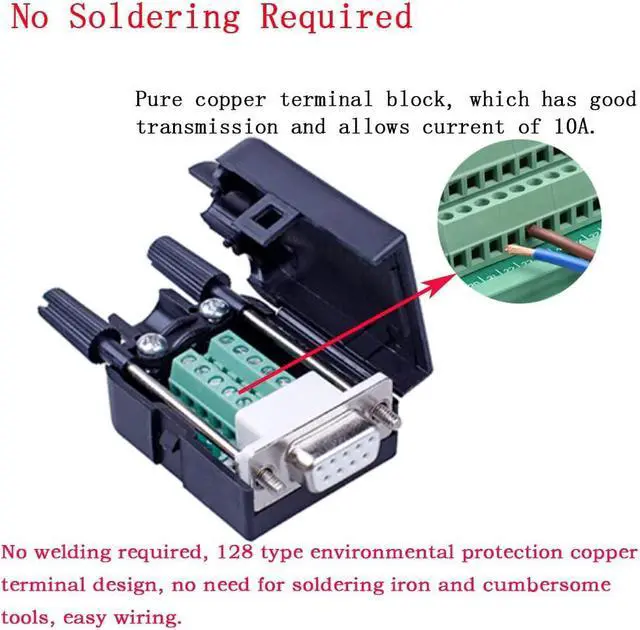

- EASY TO USE: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring. The housing is designed with a folding buckle for easy assembly and disassembly without tools.
- HIGH COMPATIBILITY: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera,PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
- HOMMIZATION:Each set of products is equipped with a set of cable pressing plate to prevent easy removal of the connected wires; Shell with non-slip design.

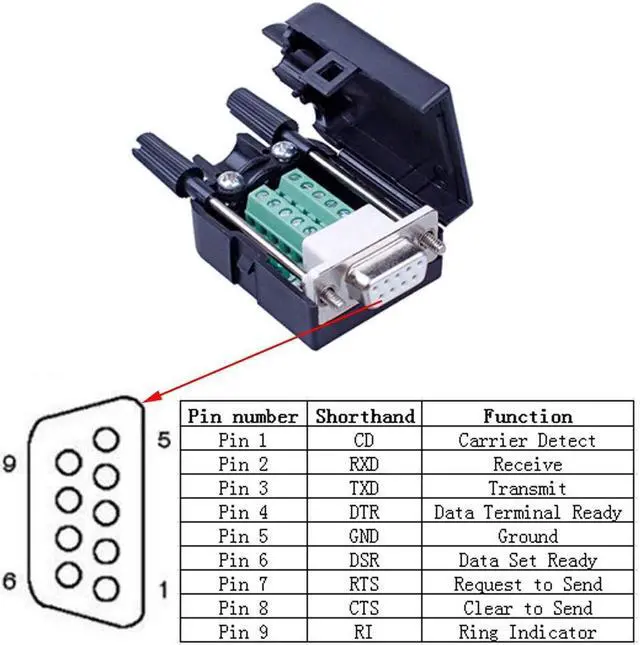

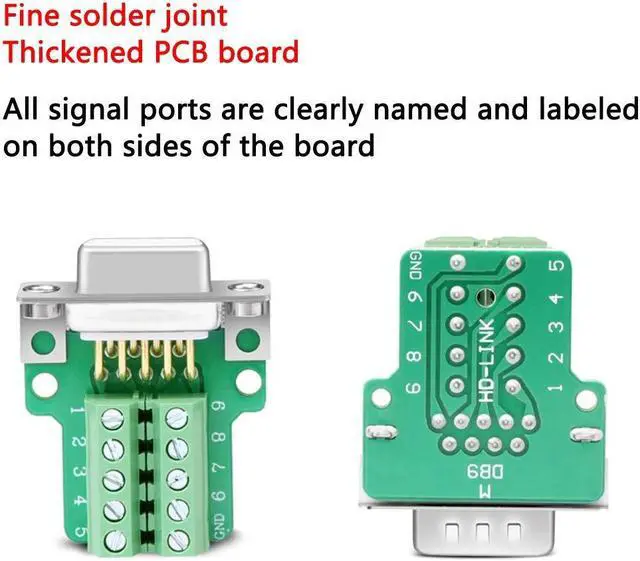

- INTUITIVE: All signal ports are clearly named and labeled on both sides of t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
These DB9 Female Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical
Name: DB9 solderless module
Plug type: female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: folding snap-on
Opening size (cable port): 10.5 mm/ 0.41 ''
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.

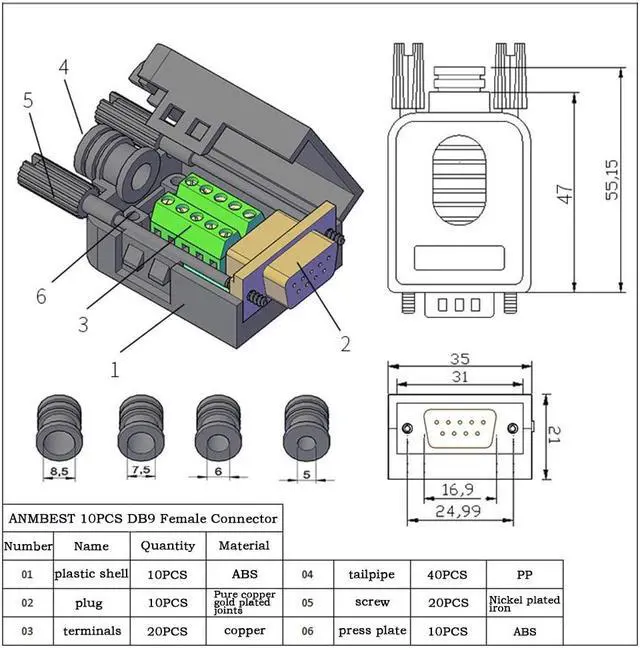

Size: 52 mmx34 mmx 21.5 mm/ 2.05 ''x 1.34 ''x 0.85 ''
Package includes:
10 x DB9 Female Solderless Connectors
10x cable pressing plate
20x Screws
20x Long bolts
10x 5mm tail pipe
10x 6mm tail pipe
10x 7.5 mm tail pipe
10x 8.5 mm tail pipe
Technical
Specifications
:Name: DB9 solderless module
Plug type: female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: folding snap-on
Opening size (cable port): 10.5 mm/ 0.41 ''
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 52 mmx34 mmx 21.5 mm/ 2.05 ''x 1.34 ''x 0.85 ''
Package includes:
10 x DB9 Female Solderless Connectors
10x cable pressing plate
20x Screws
20x Long bolts
10x 5mm tail pipe
10x 6mm tail pipe
10x 7.5 mm tail pipe
10x 8.5 mm tail pipe
