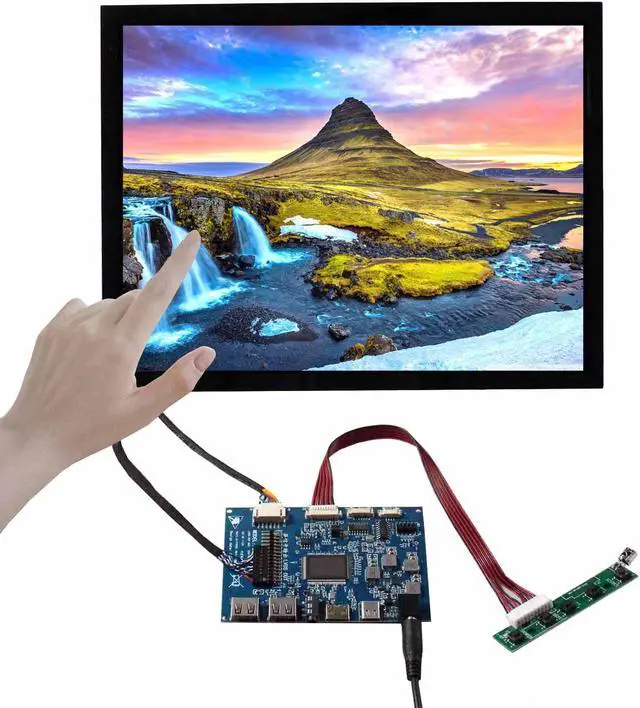

VSDISPLAY 12.1'' 1024x768 LCD Touch Screen 4:3 Monitor for Industrial/Gaming Secondary Display with USB/Type-C Video Input
- Specification12.1 inch 1024x768 LCD touchscreen monitor;Brightness 600 cd/m² (Typ.);Contrast Ratio 700:1 (Typ.) (TM);Viewing Angle 80/80/70/70(Typ.)(CR10) [Left / Right / Up / Down]
- Multiple InterfaceVideo Input: (1.4)/Type-C/2xUSB(keyboard mouse);Audio Input: Type-C
- Feature4:3 aspect ratio LCD screen,600 nits high brightness
- Touch Function12.1'' LCD screen comes with capacitive touch panel,which is convenient to use and operate on screen,easy to use,play and plug
- Widely ApplicationFor DIY project,replacment panel,industrail monitoring display,automotive display,gaming extend display
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

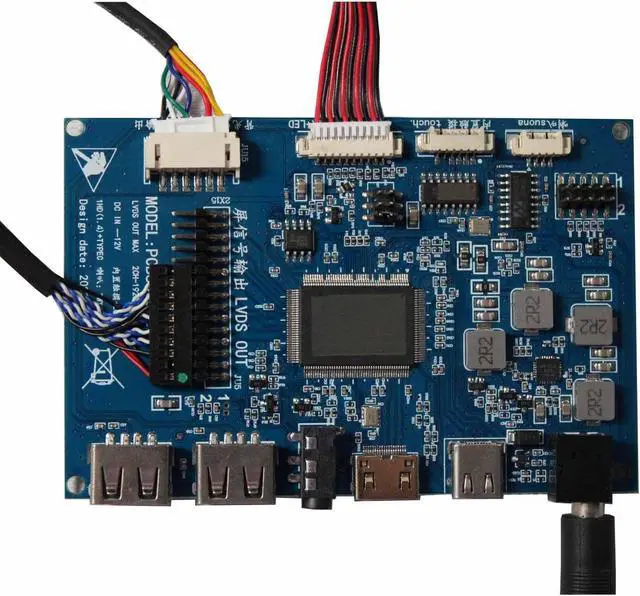

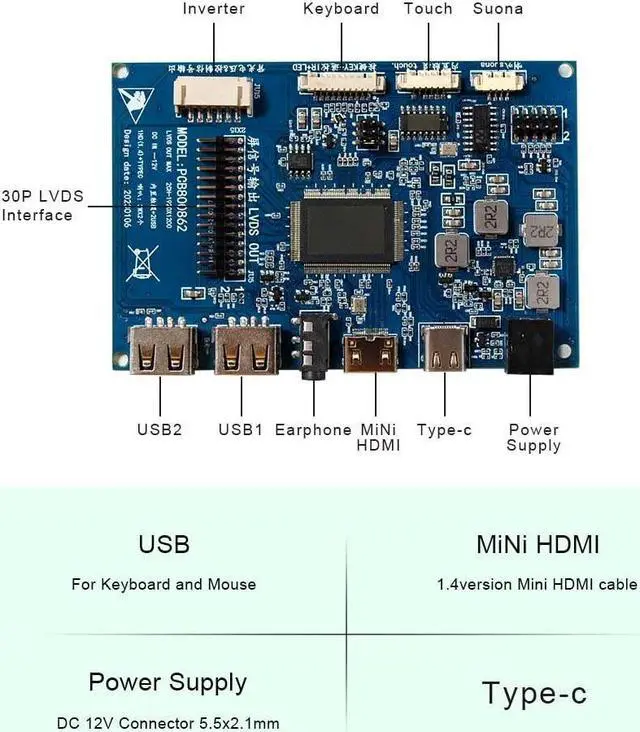

LCD Controller Board:
Type-C USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model 2x2W
Video Input: ( 1.4 ) Type-C 2xUSB (keyboard mouse)
Audio Input: Type-C
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 99.5 mm x 65.8 mm x 11mm
12.1" CLAA121XA02DW 1024X768 Capacitive Touch LCD Screen
Display Mode TN, Normally White, Transmissive
Resolution 1024 (RGB) ×768
Outline Size 260.5 × 204×13(H×V×D)mm
Display Area 245.76 × 184.32 (H×V)mm
Brightness 600 cd/m² (Typ. )
Contrast Ratio 700:1 (Typ. ) (TM)
Viewing Angle 80/80/70/70(Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit), Connector, 20 pins
Backlight WLED
Input Voltage 3.3V (Typ. )

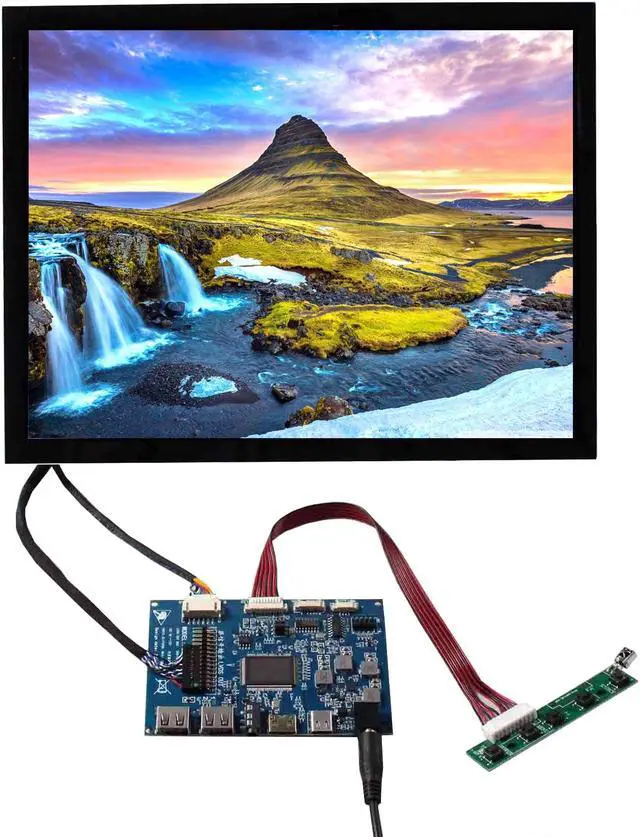

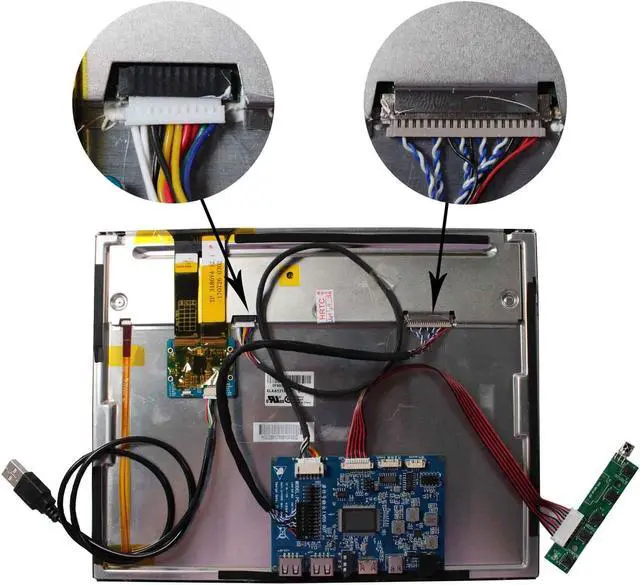

Packing list:
1× Type-C USB LCD Controller Board VS-TY2660-V862
1× 12.1 inch CLAA121XA02DW 1024x768 LCD Screen With Capacitive Touch Panel
1× LVDS Cable
1× Inverter Board
1× Keyboard With Cable
Type-C USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model 2x2W
Video Input: ( 1.4 ) Type-C 2xUSB (keyboard mouse)
Audio Input: Type-C
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 99.5 mm x 65.8 mm x 11mm
12.1" CLAA121XA02DW 1024X768 Capacitive Touch LCD Screen
Display Mode TN, Normally White, Transmissive
Resolution 1024 (RGB) ×768
Outline Size 260.5 × 204×13(H×V×D)mm
Display Area 245.76 × 184.32 (H×V)mm
Brightness 600 cd/m² (Typ. )
Contrast Ratio 700:1 (Typ. ) (TM)
Viewing Angle 80/80/70/70(Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit), Connector, 20 pins
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1× Type-C USB LCD Controller Board VS-TY2660-V862
1× 12.1 inch CLAA121XA02DW 1024x768 LCD Screen With Capacitive Touch Panel
1× LVDS Cable
1× Inverter Board
1× Keyboard With Cable
