Wekuant 2 x RJ11 Telephone and 10/100 Mbps Ethernet Over Fiber Converter - POTS to Fiber Optic Extender, Universal Single Mode up to 20Km(12.4 mi) and Multimode 500m(0.31 mi), A Pair.

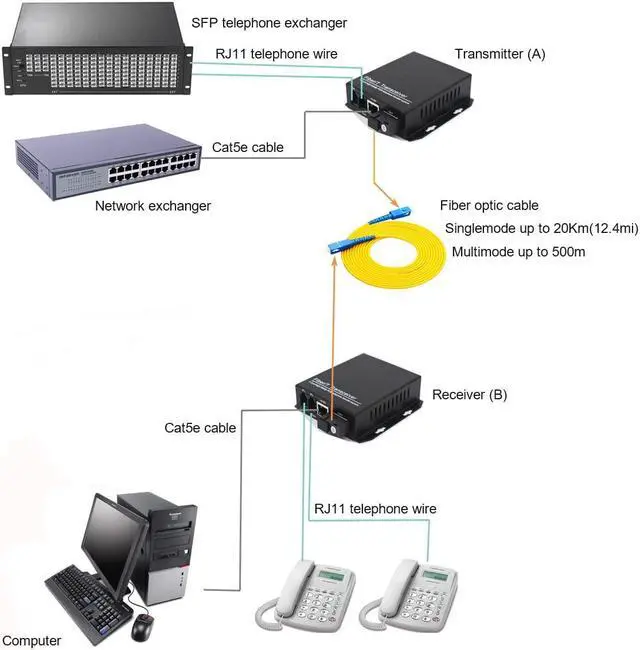

Extend PCM Voice Telephones and Network signal: 2 Independent telephone lines + 1 Ethernet (10/100 Mbit/s) port through same fiber optic cable to far end. Suitable for Both Fiber Types (Single-mode and multimode). Single-mode fiber for a long distance up to 20 km(12.4 miles), Multimode fiber for a distance up to 500m(0.31 miles).
Support Called id, Ring and Fax function, No Delay Transmission and Protocol Support: Unlike VoIP products - these converters transmit signals directly over fiber cables, thus offering NO DELAYS, plus support for fax & legacy applications that is not supported by VoIP lines.
With our Telephone over Fiber extender you can get faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to el

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specification:

Phone RJ11 port specifications:
1.
Voice coding: PCM coding, 64Kbps per voice
2.
Crosstalk attenuation: 65dB
3.
Balanced noise: 63.7 dBmop
4.
Insertion loss: -3 ± 0.75 dB
5.
Frequency characteristics: 300 to 3400 Hz (- 0.6 to +3 dB)
6.
Relay port (FXO): connected to the switch
7.
Two-wire AC input impedance: 200+680// 0.1 (three components)
8.
Ringing voltage: 35 ~ 150V
9.
Ringing frequency: 17~60HZ
10.
Return loss: 20 db
11.
User Interface (FXS): Connect to the user's telephone
12.
Two-wire AC input impedance: 200+680// 0.1 (three components)
13.
User line loop resistance: less than 1K (including phone)
14.
Ringing voltage peak-to-peak value: 110~150V
15.
Ringing frequency: 22~28HZ
16.
Feed voltage: 28V
17.
Feed current: 20~50mA;
18.
Return loss: 20 db
19.
Bell flow: AC90 plus or minus 15V

Ethernet RJ45 port specifications:

1.
Rate: 10/100 Mbps, full duplex, half duplex fully adaptive

2.
Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)

3.
Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)

Power supply:
1. Working voltage AC100~240V, DC5V/2A.
2. With US power supply adapter

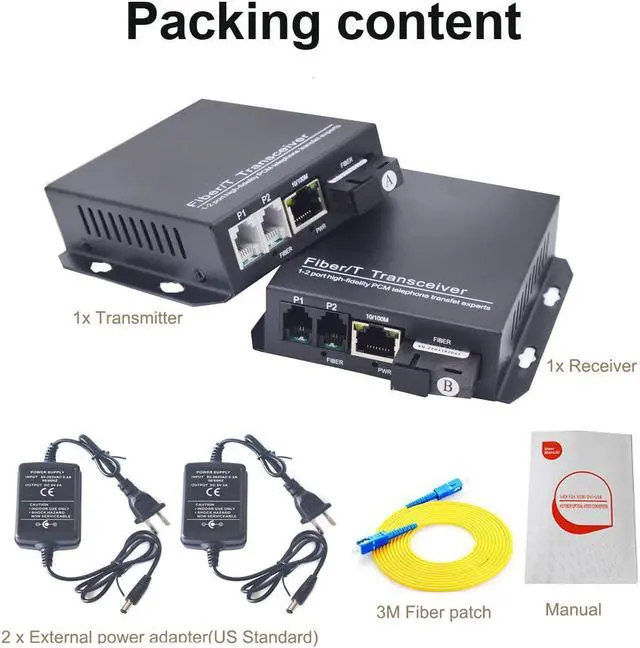

Package include:
1x Telephone over fiber Transmitter
1x Telephone over fiber Receiver
1x 3M SC/SC fiber patch cord.
2 x External power supply adapters
1 x Manual
