PHOENIX CONTACT 2891152 NETWORK SWITCH, 5PORT, 100MBPS

Features: ·Increase of the main performance by filtering the data traffic ·Local data traffic remains local ·The data arising in the net segments is reduced ·Simple extension of network without configuration of the Switches ·Coupling of copper main segments with different bit rates with automatic detection of the data transmission rate of 10 MBit/s or 100
MBit/s ·Auto negotiation: Each copper port develops a half or a full-duplex connection with 10 MBit/s or 100
MBit/s ·Auto crossing: A distinction of 01:01 - or of Cross Over Ethernet copper wire is not necessary ·Galvanic uncoupling of net segments through up to two of LWL ports

Technical

Specifications

: Current consumption:
typ. 90 mA ·
Dimensions: (W x H x D) 30 x 120 x 70 mm · Number of
Ethernet ports: 5 ·
Number of fibreoptic ports: 0 ·
Operating voltage: 18 - 30 2 Vdc ·
Port type: 10/100 MBit/s RJ45 screened, Auto negotiation, Auto crossing ·

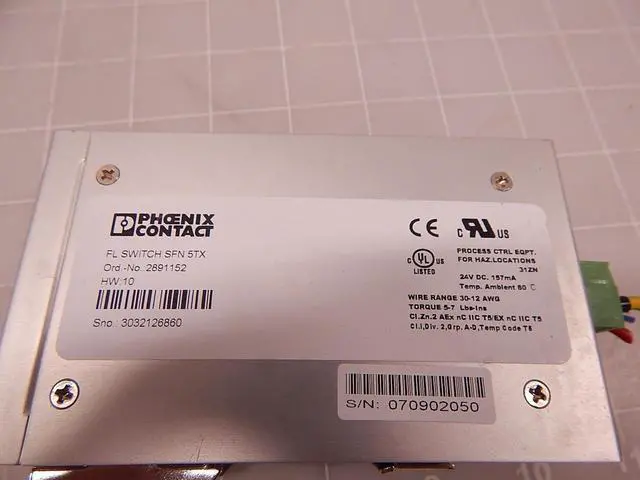

Type (manufacturer type): FL SWITCH SFN 5TX · Weight: 265 g

Description: The family of the Factory Line Switches with standard functions FL SWITCH SFN makes possible a fast and economical extension of Ethernet with the numerous variants. The Switches have five or eight ports, from which two can be implemented as multi-mode/single mode glass fibre ports in the SC or in the ST-format. The Switches supports the data transmission rates 10 and 100 MBit/s. at the Twisted Pair ports Glass fibre ports support excluding 100 MBit/s. The Switches regenerate the received data telegrams and sends it to the port, at which the participant with the appropriate destination address is attached.
