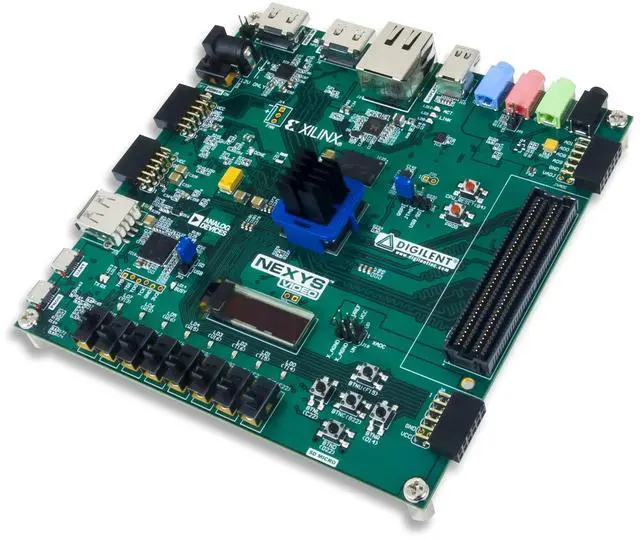

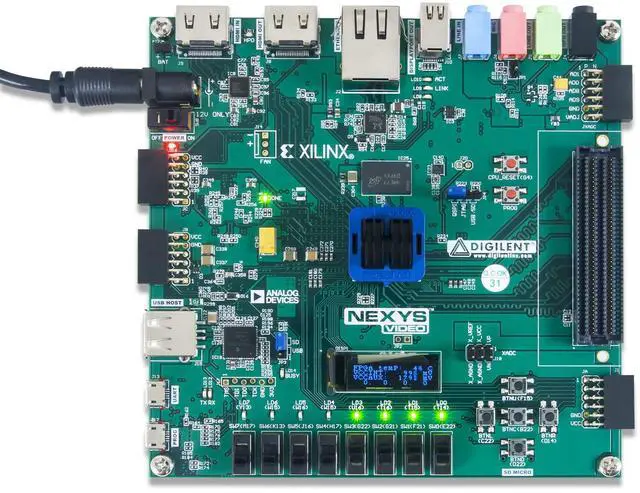

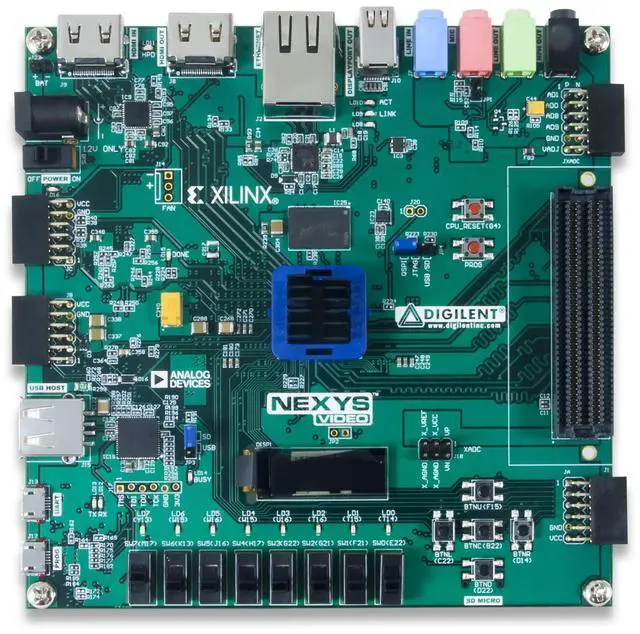

Digilent Nexys Video Artix-7 FPGA: Trainer Board for Multimedia Applications

The Nexys Video (previously announced as the Atlys 2), is the latest
addition to our Nexys line of FPGA boards, and was designed with
audio/video enthusiasts in mind. The Nexys Video features several
components that make it ideal for developing audio/video applications. The
Artix-7 XC7A200T FPGA is the most powerful chip from the Xilinx Artix-7
family. A Mini DisplayPort source provides the board with a
uni-directional, high-bandwidth, low-latency audio/video channel. Designed
with high bandwidth external memories, three high-speed digital video
ports, and a 24-bit audio codec, the Nexys Video is a potent platform for
A/V development. As a member of the Nexys family, the Nexys Video has been
designed with a high degree of communication, user and expansion
peripherals commonly found in industry. Communication peripherals such as
on-board Ethernet, USB-UART, and high-speed USB allow the Nexys Video to be
interfaced into larger systems. Onboard user peripherals such as switches,
buttons, LEDs, and an OLED display allow users to interface directly with
their designs instead of needing to wire up additional I/O. An FMC
connector and four Pmod ports allow the addition of peripherals to further
expand the functionality of the Nexys Video. The Nexys Video is compatible
with both ISE and Vivado toolchains. It is supported in the free WebPACK
versions of these two tools so designs can be implemented at no additional
cost. The free version of Vivado even includes the ability to create
MicroBlaze soft processor designs. We also sell a device-locked version of
the Design Edition of Vivado Design Suite, which you can bundle with your
Nexys Video when you add it to your cart. * This edition unlocks the Logic
Analyzer functionality of the toolset.
