$51.99
Meet Your Seller
RCmall LoRa32 V3 ESP32 Development Board, WiFi Bluetooth, 0.96-inch OLED Display, Dual-core SX1262 CP2102, TypeC 915MHz Antenna Protect Case for Meshtastic NodeMCU IoT
- WiFi LoRa 32 is a classic IoT dev-board Support ESP32 + LoRaWAN protocol library, dual-core Xtensa LX7 architecture running at up to 240 MHz
- MCU: ESP32-S3FN8 (V2 is ESP32-D0WDQ6), LoRa Chip: SX1262(V2 is SX1276/8), USB Socket: Type-C(V2 is Micro-USB) cannot support V2
- ESP32 impedance matching of RF circuitsdesign and low-power design best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers
- Integrated WiFi, LoRa, Bluetooth three network connections, onboard WiFi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
- 0.96-inch OLED display for easy commissioning and real-time information display When you use esp32 oled lora, you need to use 2pcs together. One is used for receiving and another for sending
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

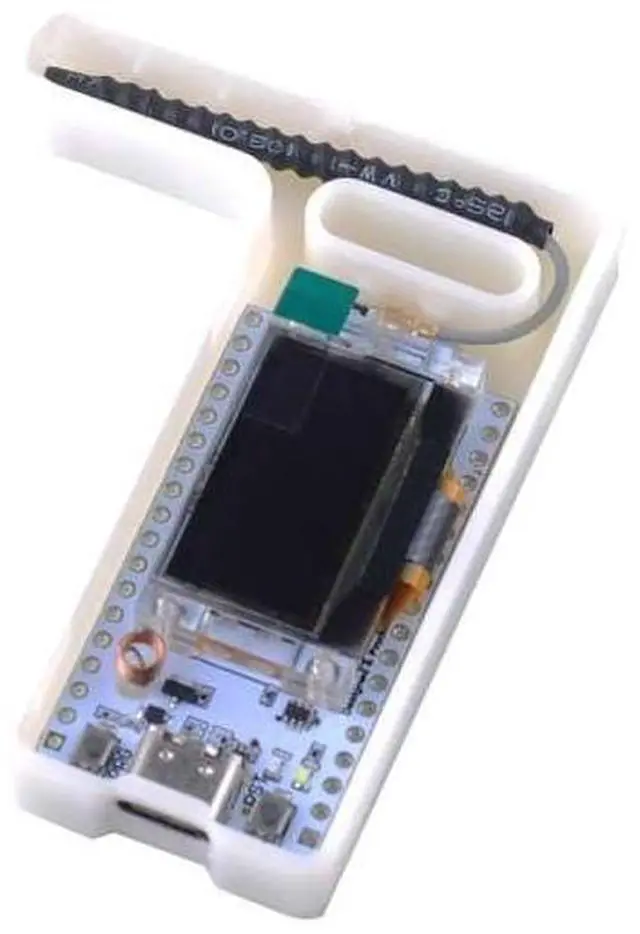

This versatile ESP32 LoRa V3 Development Board from RCmall is a comprehensive solution for IoT projects. It combines WiFi, Bluetooth, and LoRa connectivity, with a 0.96 -inch OLED display for easy data visualization. Powered by the dual-core ESP32 chip and the SX1262 LoRa module, this board supports long-range wireless communication at 915 MHz, making it ideal for applications like Meshtastic and remote monitoring. It comes equipped with a CP2102 USB-to-UART bridge, a Type-C port for programming and power, and a sleek case for protection. The board also includes a 915 MHz antenna and a set of pin headers, providing a complete package and NodeMCU projects.
With its compact size and comprehensive features, this development board is a versatile tool for exploring the world of IoT. WiFi LoRa 32

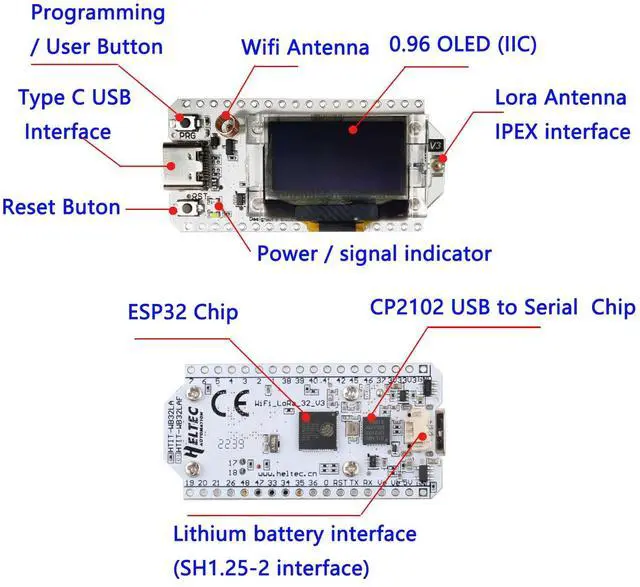

V3 Board:
Interface: Type-C ( not micro USB)
Master chip: ESP32-S3FN8
Lora chip: SX1262
USB to Serial Chip: CP2102
Operating voltage: 3.3V to 7V
Memory: 384KB ROM, 512KB SRAM, 16KB RTC SRAM, 64Mbits (8MByte) SiP Flash
Distance: about 2.8KM in open place
Max.
TX Power: 20dBm - 22dBm
Max.
Receiving Sensitivity: -139 dBm
Operating Temperature: -20 ° C to + 70 ° C

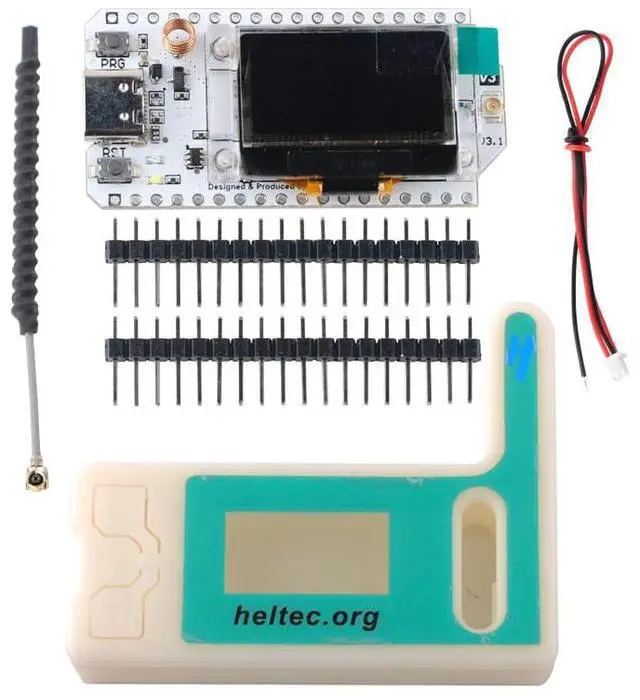

Package Includes:
1 x ESP32 LoRa OLED board V3 868/915MHz
1 x 868/915 LoRa Antenna
1 x 1.25 mm-2P Cable
1 x Case for LoRa V3
With its compact size and comprehensive features, this development board is a versatile tool for exploring the world of IoT. WiFi LoRa 32
V3 Board:
Interface: Type-C ( not micro USB)
Master chip: ESP32-S3FN8
Lora chip: SX1262
USB to Serial Chip: CP2102
Operating voltage: 3.3V to 7V
Memory: 384KB ROM, 512KB SRAM, 16KB RTC SRAM, 64Mbits (8MByte) SiP Flash
Distance: about 2.8KM in open place
Max.
TX Power: 20dBm - 22dBm
Max.
Receiving Sensitivity: -139 dBm
Operating Temperature: -20 ° C to + 70 ° C
Package Includes:
1 x ESP32 LoRa OLED board V3 868/915MHz
1 x 868/915 LoRa Antenna
1 x 1.25 mm-2P Cable
1 x Case for LoRa V3
