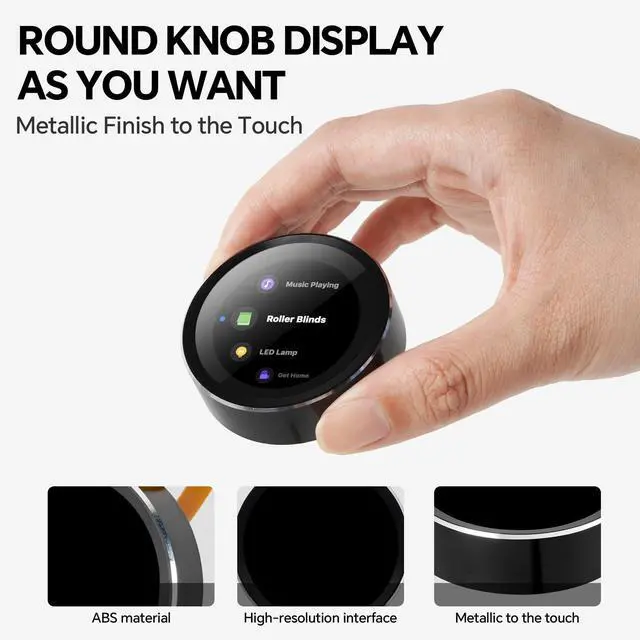

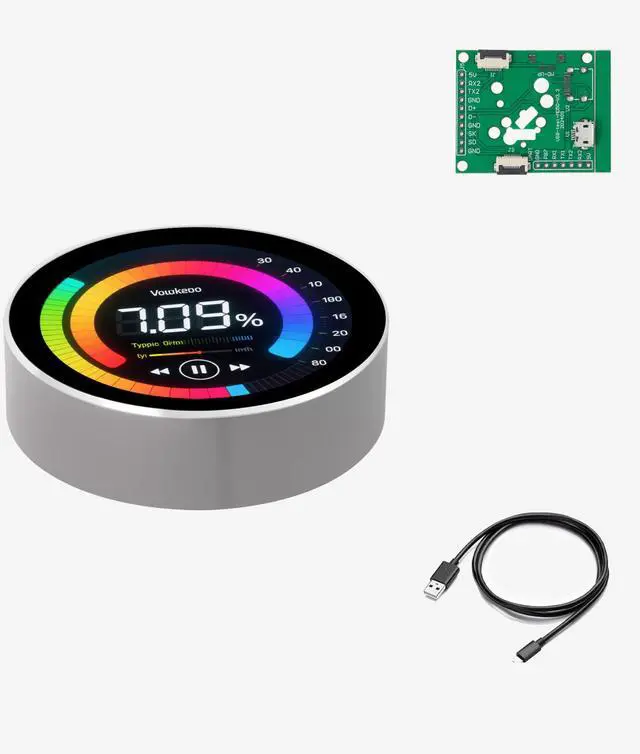

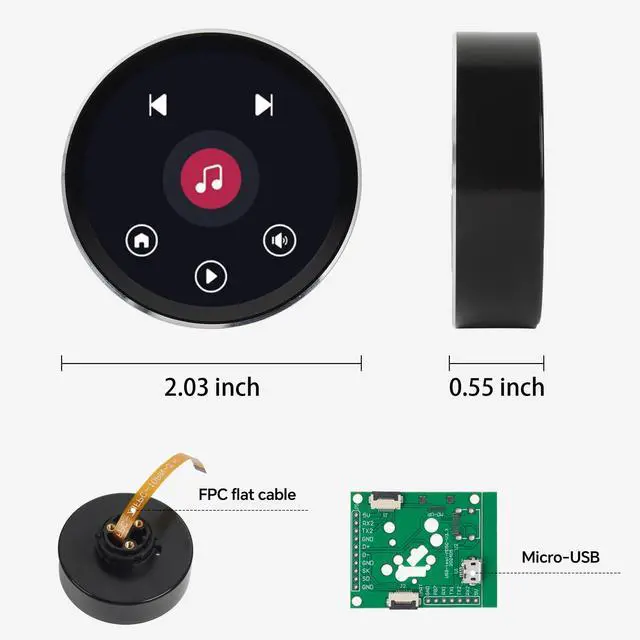

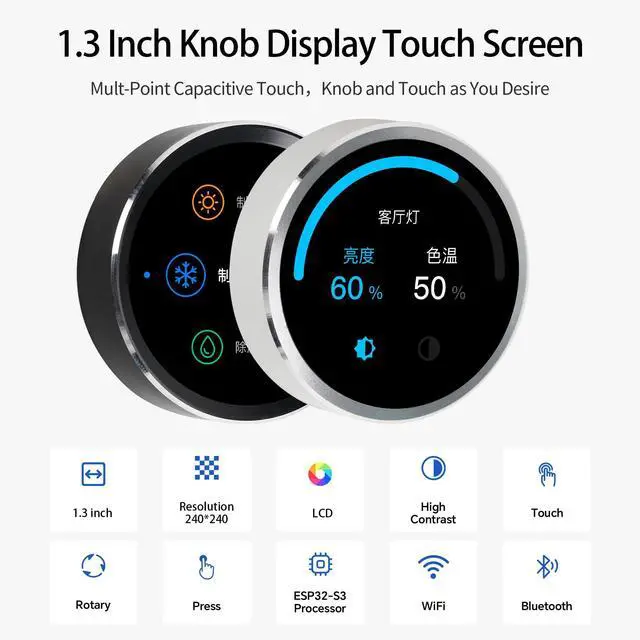

UEAIDISP ESP32-C3 Development Board Round Knob Display 1.28 Inch 240×240 IPS TFT LCD for LVGL WiFi BLe Uart Rotary Display (Silver)
- Esp32 Lvgl IDF 1.28 Inch 240*240 circular knob rotary switch round IPS TFT LCD display with Wifi.
- Rotary Knob Interaction:Offers an intuitive rotary knob for easy navigation and control, enhancing user experience.
- Versatile Connectivity:Supports UART/USB interfaces, ensuring seamless integration with various smart appliances.
- High-Resolution Display:Features a 240*240 pixel resolution for clear, vibrant visuals on a 1.28-inch circular IPS TFT LCD.
- Robust Performance:Designed for durability with a robust construction, suitable for daily use in various smart devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brief Info:
1Outline Dimension: 50 Round
2Interaction Method: Rotate and Press
3Shell Color: Black/White/Silver/Customized
4Power: DC 5V, 100mA
System
1) OS: RTOS
2) CPU: ESP32-C3 160Mhz
3) RAM: 400KB
4) Flash: 4MB
5) Interface: UART/USB
6) Support 2.4GH z Wi-FiBLE 5BLE Mesh
7) Support Peripherals: GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM,
full-speed USB 2.0 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI controller (compatible with ISO 11898-1)
ADC, touch sensor, temperature sensor, timers and watchdogs
Display
1Size: 1.3 Inch
2 Resolution: 240*240
3Mode: IPS
4Pixel ArrangementRGB Vertical Stripe
5Interface Mode4 Wire SPI
6Driver ICGC9A01
7Brightness: 300 cd/m2
8 Pixel Density261 PPI
9Touch: without
Other
1Operation Temperature-20~70
2Storage Temperature-30~80
1Outline Dimension: 50 Round
2Interaction Method: Rotate and Press
3Shell Color: Black/White/Silver/Customized
4Power: DC 5V, 100mA
System
1) OS: RTOS
2) CPU: ESP32-C3 160Mhz
3) RAM: 400KB
4) Flash: 4MB
5) Interface: UART/USB
6) Support 2.4GH z Wi-FiBLE 5BLE Mesh
7) Support Peripherals: GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM,
full-speed USB 2.0 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI controller (compatible with ISO 11898-1)
ADC, touch sensor, temperature sensor, timers and watchdogs
Display
1Size: 1.3 Inch
2 Resolution: 240*240
3Mode: IPS
4Pixel ArrangementRGB Vertical Stripe
5Interface Mode4 Wire SPI
6Driver ICGC9A01
7Brightness: 300 cd/m2
8 Pixel Density261 PPI
9Touch: without
Other
1Operation Temperature-20~70
2Storage Temperature-30~80
