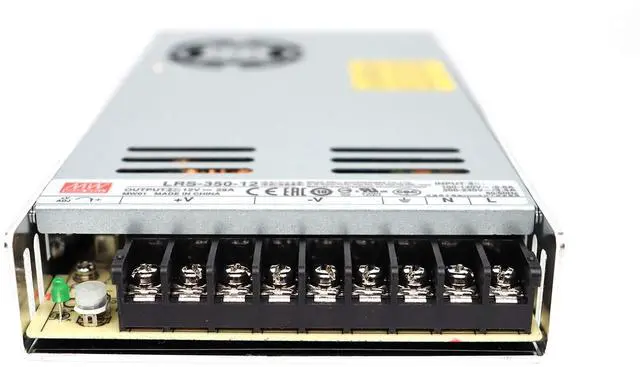

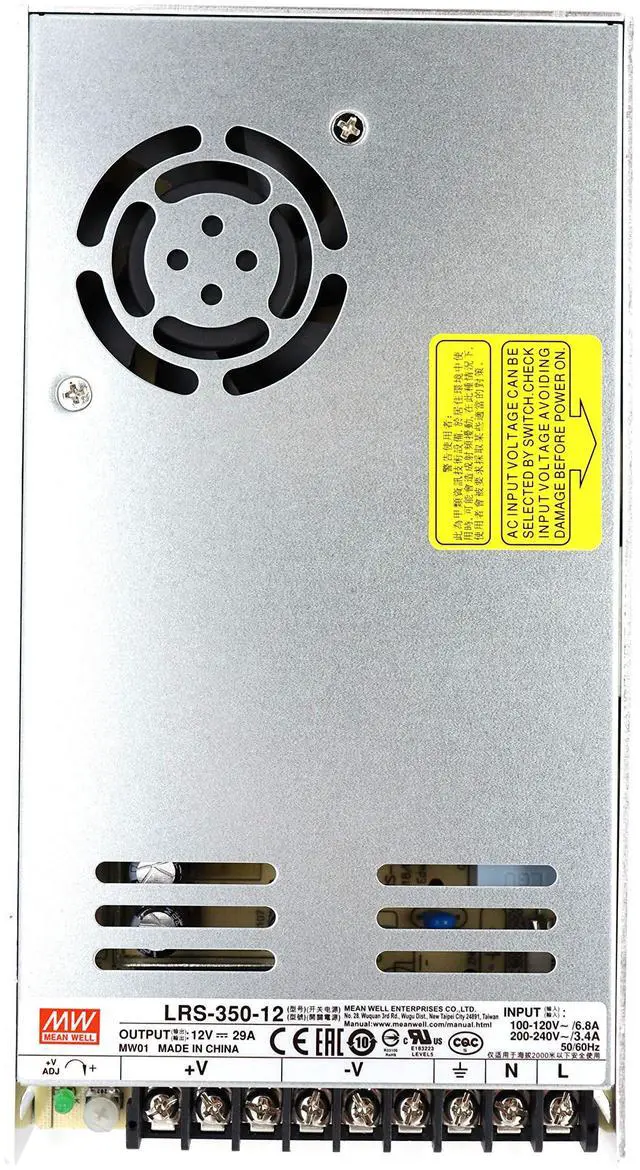

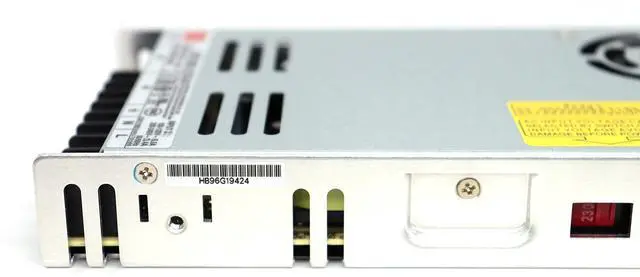

Mean Well LRS-350-12 AC/DC Switching Power Supply 348W 12V 29Amp Single Output Provided by KAINSC Products

Ensure optimal performance of your electronic device with the use of this LRS-350-12 AC to DC power supply from MEAN WELL.
It has a voltage of 12 V and maximum output power of 348 W.
This part's single output can handle a current up to 29 A.
This part has a temperature range of -30 °C to 70 °C.
EU RoHS: Compliant
ECCN (US): EAR99
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 12
Output Current (A): 29
Output Power (W): 348
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5 %
Load Regulation: 1%
Maximum Input Current (A): 6.8 (Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ± 1.5
Efficiency (%): 85 (Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV (Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 760
Pin Count: 9
Mounting: Chassis
Package Height: 30
Package Length: 215
Package Width: 115
