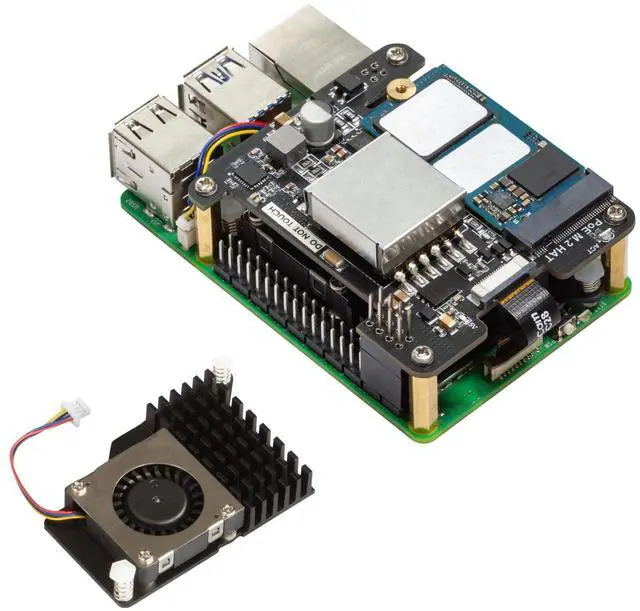

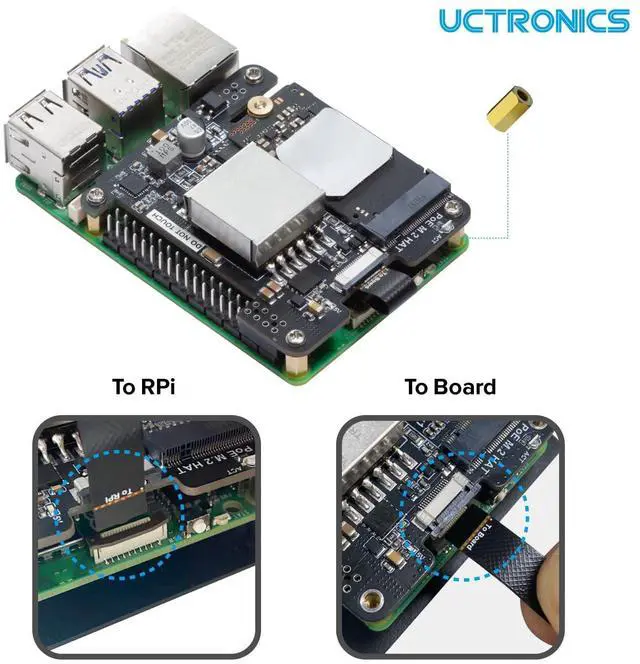

UCTRONICS 5V 5A NVMe PoE+ HAT for Raspberry Pi 5, PCIe to M.2 NVMe Adapter, Compatible with 2230/2242 NVMe SSDs, IEEE 802.3af/at PoE+ Power Over Ethernet

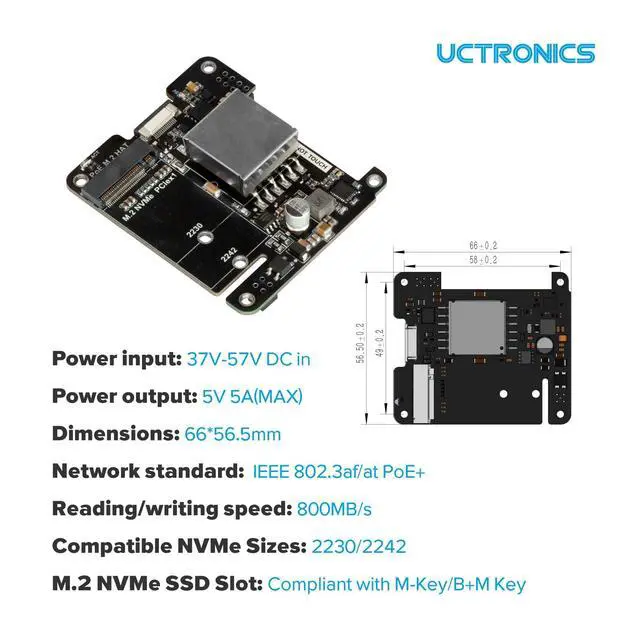

High Output Power: This NVMe PoE hat is a fully isolated switch-mode power supply (SMPS), delivering up to 25W, 5V/5A (MAX) output. Ensure stable power for your Raspberry Pi 5 and connected peripherals.
Note: To achieve 5A output, use an IEEE 802.3 at or higher PoE input device
NOTE: Do NOT connect the Power supply to USB-C on Pi 5 board when you are using PoE+ Hat as a power supply, it may damage your device!!! ^^ Power over
Ethernet (PoE+) Support: This raspberry pi 5 PoE hat supports IEEE 802.3 af/at standards, delivering both power and data through a single Ethernet cable. Simplify your setup and eliminate the need for an additional power adapter ^^ High-Speed NVMe SSD for
Raspberry Pi 5: This Raspberry Pi 5 NVMe hat supports M. 2 NVMe SSDs (2230/2242 sizes, M-Key / B+M Key), which enables ultra-fast PCIe storage expansion. Achieve real read/write speeds up to 800MB/s, ideal for data-intensive projects and AI applications ^^

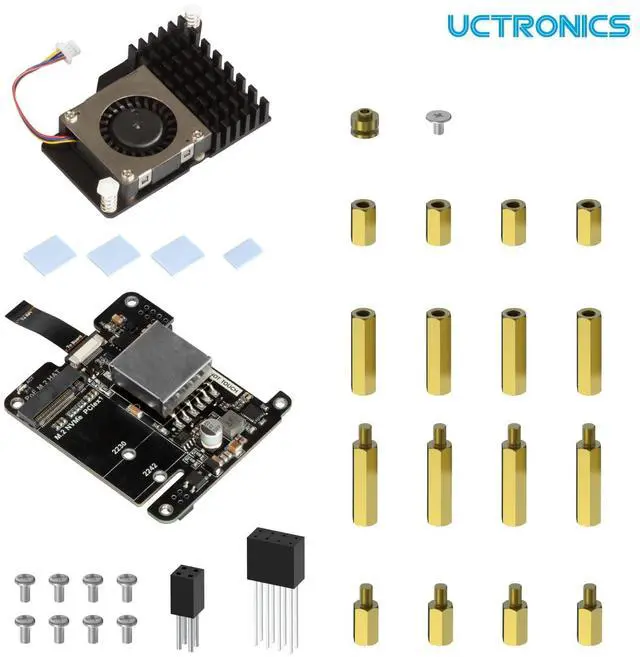

Efficient Heat Dissipation: This UCTRONICS for Raspberry Pi 5 PoE+ hat is equipped with an Active Cooler that combines an aluminium heatsink with a PWM fan to ensure stable performance under heavy loads ^^

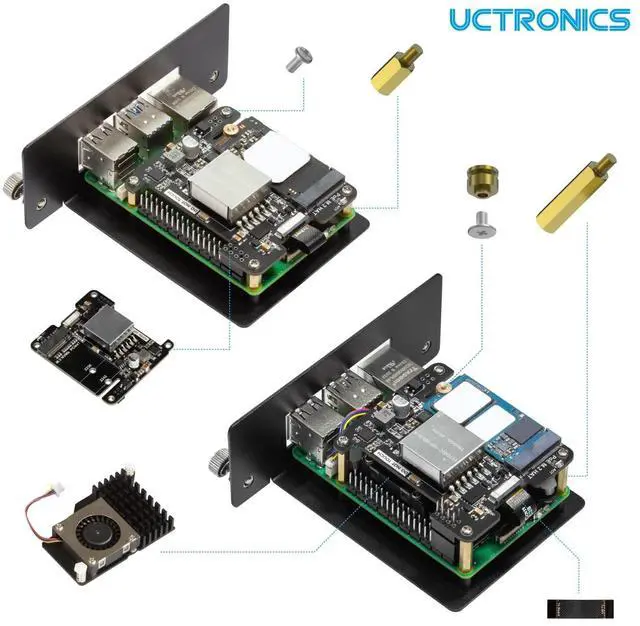

Compact layout and small size: This Raspberry Pi NVMe hat is suitable for most cases, also compatible with uctronics pi rack mount(U6123-B08F9X528J, U6195-B09D7RR6NY, U6264-B09STTXWZZ)
