ESP32 LoRa V4 Development Board Upgraded ESP32-S3 SX1262 LoRa Module WiFi Bluetooth 2MB PSRAM 16MB Flash Supports GPS & Solar for Arduino Meshtastic LoRaWAN IOT

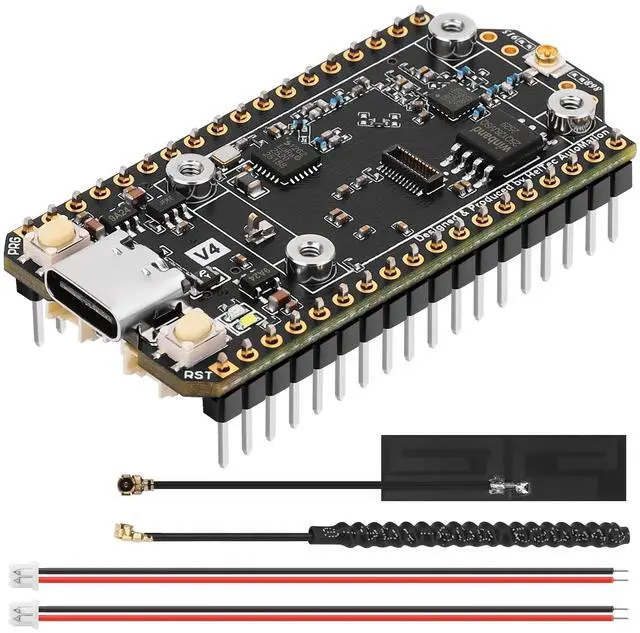

Upgraded ESP32-S3 & SX1262 Core for
High-Performance IoT Projects: Powered by the advanced ESP32-S3R2 and SX1262 LoRa chip, this ESP32 development board delivers robust WiFi, Bluetooth LE 5.0, and long-range LoRa communication. Ideal for Meshtastic nodes and Arduino-based wireless projects requiring reliable connectivity and real-time data transmission in smart agriculture, industrial monitoring, or remote sensing. ^^ Enhanced
Power & Memory: Experience superior signal strength with up to 28dBm LoRa transmission power and ultra-low reception sensitivity (-137dBm). Equipped with 2MB PSRAM and 16MB Flash, it excels in running complex firmware, UI interfaces, and multitasking applicationsperfect for ESP32 dev boards used in IoT devices, asset tracking, and home automation systems.
^^ Full Expansion Support: Expand functionality easily with dedicated SH 1.25 -8Pin GNSS interface and SH 1.25 -2P solar panel input ( 4.4 -6V). Perfect for outdoor Meshtastic GPS trackers, solar-powered sensor networks, or off-grid environmental monitoring. ^^ Ultra-Low Power Design with Smart
Power Management: Optimized for low-power applications, sleep mode draws less than 20A. Battery management features support lithium battery charging, overcharge protection, and seamless switching between USB and battery/solar power. It is an ideal solution for portable or remote deployments like wireless alarms, water meter reading, or mobile LoRaWAN nodes.

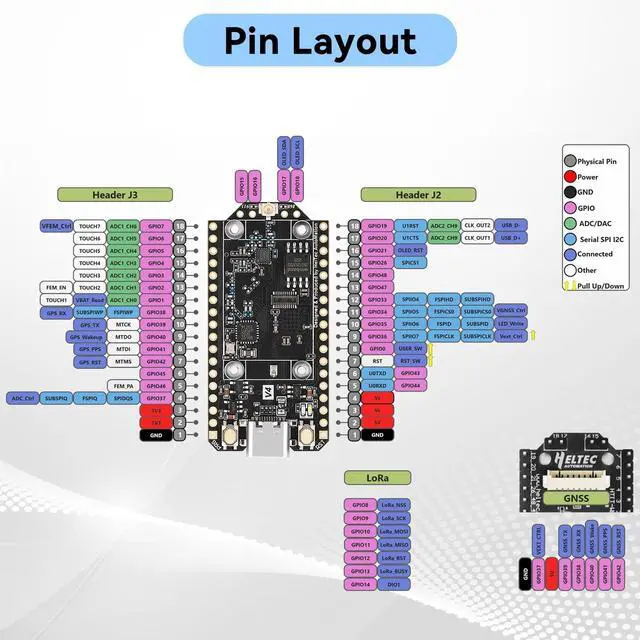

^^ Plug-and-Play Design: Backward compatible with ESP32 LoRa V3/V2 pinouts and fully supports Arduino IDE, MicroPython, and ESP-IDF. Features a USB Type-C with ESD protection, dual IP EX antennas (LoRa & 2.4GH z), and expanded header pins. A top-tier choice among ESP32 boards for makers, engineers, and Meshtastic users.
