XICOOLEE IMX219-160 IR Camera Module for Jetson Nano Adopts IMX219 Sensor 8 MP Fixed-Focus 160 Degree FOV Infrared Night Vision 3296 * 2512 Resolution 30 fps 15P-1.0 MIPI Interface
- The IMX219-160 is equipped with CMOS image sensor IMX219 with infrared complement light, ISP (image signal processing), high-speed video shooting, lens shading compensation function
- This IMX219 8MP 160 camera sensor adopts HD camera,8 Megapixel, fixed focus 160 degrees wide angle of view, supporting for Jetson Nano developer kit
- Lens Specifications: CMOS Size: 1/4"; F/No: 2.35; EFL: 3.15mm; FOV: 160 degrees; TV Distortion: <14.3%; Maximum Resolution: 3296x2512; Supply Voltage: 3.3V(pin15)
- The IMX219 8MP camera module adopts 15P-1.0 MIPI interface, weights only 10g, lightweight to use
- This camera meets the basic functional requirements of high sensitivity, high frame rate shooting for high-performance photography applications, suitable for AI projects such as: face recognition, road mark detection and License plate recognition etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

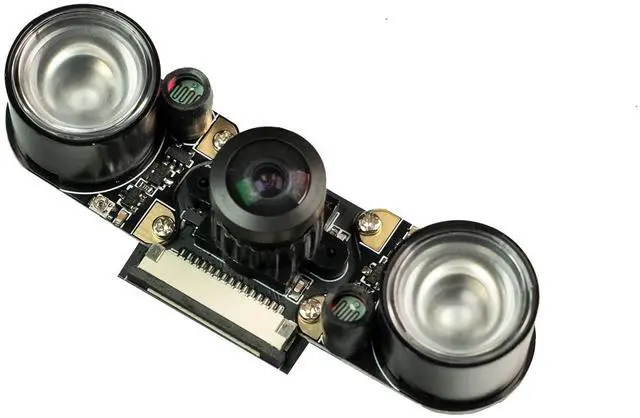

Overview: This IMX219-160 night vision camera module adopts IMX219 CMOS image sensor. The HD camera has 8 Megapixel, wonderful anti blurring characteristics, onboard 15P- 1.0 MIPI interface, weights only 10g, adopts fixed focus mode (night vision can add infrared fill light), compatible with Jetson Nano operating system.
Size: 25mm (Length) *24mm (Width) * 17.7 mm (High) 0.5 mmTemperature (Operation): -2070Temperature (Stable
Image): 050Assembly
Technique: SMT (ROSH)
Focus: FixedObject
Distance:
30CM-InfinityResolution: 800LW/PH (Center)
Interface: 15P- 1.0 MIPI
Supply Voltage: 3.3V (pin15)
Operating System: Jetson
NanoSensor: IMX219 (1/4")Sensor
Package: PLCC, Bare
DieMaximum Resolution:
3296*2512Sensitivity: 600mv/(lux-sec)Pixel
Size: 1.12 m x 1.12 mMaximum
Image Transfer Rate: 30 fps for
QSXGAS/N Ratio: 39dbDynamic
Range: 69dbOutput
Formats: 8/10bit RGB
RAM OutputLens Construction:
6G+IRF/No:
2.35EFL: 3.15
mmBFL (Optical): 3.15
mmFOV: 160TV
Distortion: < 14.3 %Relative
Illumination (Sensor): 70%IR
Filter:
65010nmPackage: Anti-electrostatic trayInfrared
Fill Light Lamp: EquipPackage

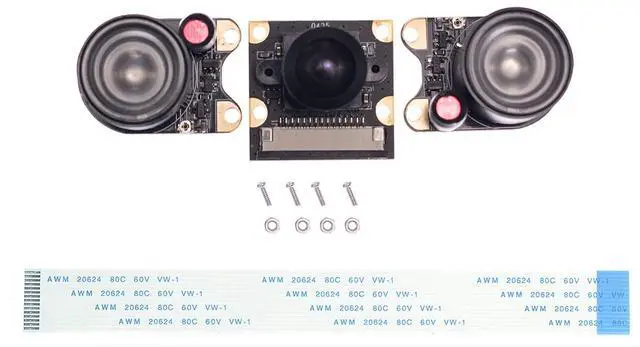

Contents: 1. IMX219-C8M-160-NV (Night Vision) x12. 15P- 1.0 MIPI connecting cable x13. Infrared fill light board 2PCS x14. Screws x45. Nuts x4

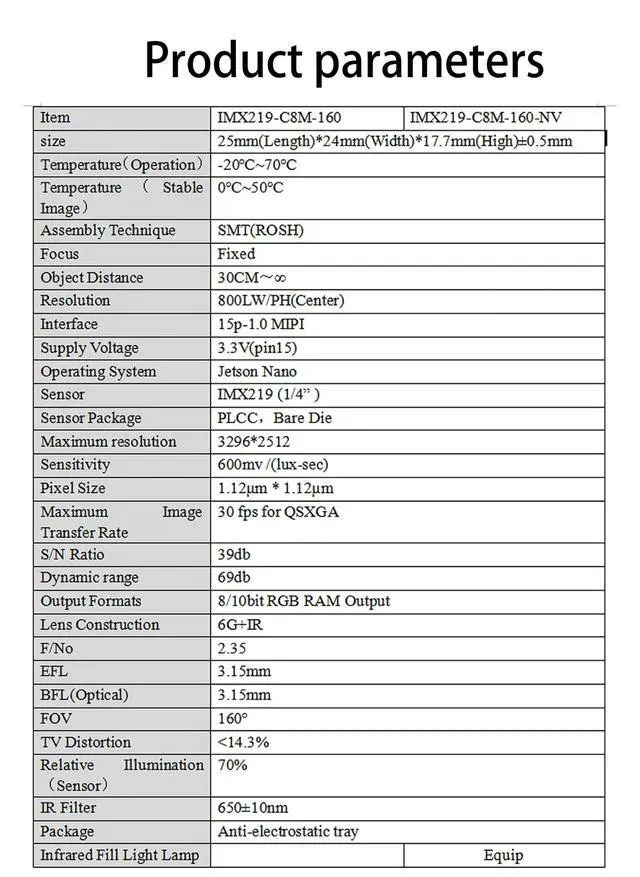

Specifications
:Size: 25mm (Length) *24mm (Width) * 17.7 mm (High) 0.5 mmTemperature (Operation): -2070Temperature (Stable
Image): 050Assembly
Technique: SMT (ROSH)
Focus: FixedObject
Distance:
30CM-InfinityResolution: 800LW/PH (Center)
Interface: 15P- 1.0 MIPI
Supply Voltage: 3.3V (pin15)
Operating System: Jetson
NanoSensor: IMX219 (1/4")Sensor
Package: PLCC, Bare
DieMaximum Resolution:
3296*2512Sensitivity: 600mv/(lux-sec)Pixel
Size: 1.12 m x 1.12 mMaximum
Image Transfer Rate: 30 fps for
QSXGAS/N Ratio: 39dbDynamic
Range: 69dbOutput
Formats: 8/10bit RGB
RAM OutputLens Construction:
6G+IRF/No:
2.35EFL: 3.15
mmBFL (Optical): 3.15
mmFOV: 160TV
Distortion: < 14.3 %Relative
Illumination (Sensor): 70%IR
Filter:
65010nmPackage: Anti-electrostatic trayInfrared
Fill Light Lamp: EquipPackage
Contents: 1. IMX219-C8M-160-NV (Night Vision) x12. 15P- 1.0 MIPI connecting cable x13. Infrared fill light board 2PCS x14. Screws x45. Nuts x4
