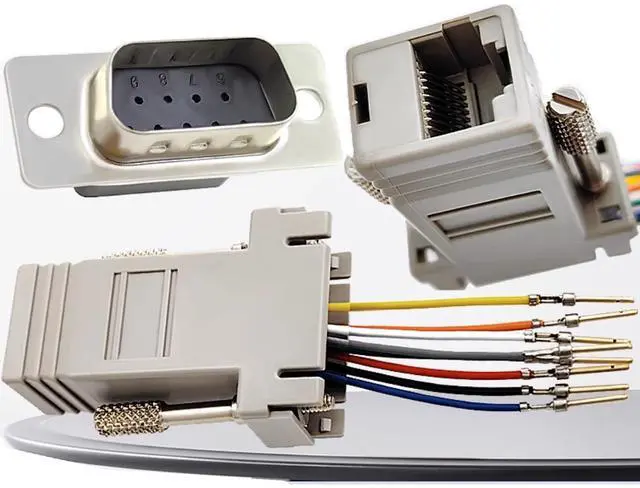

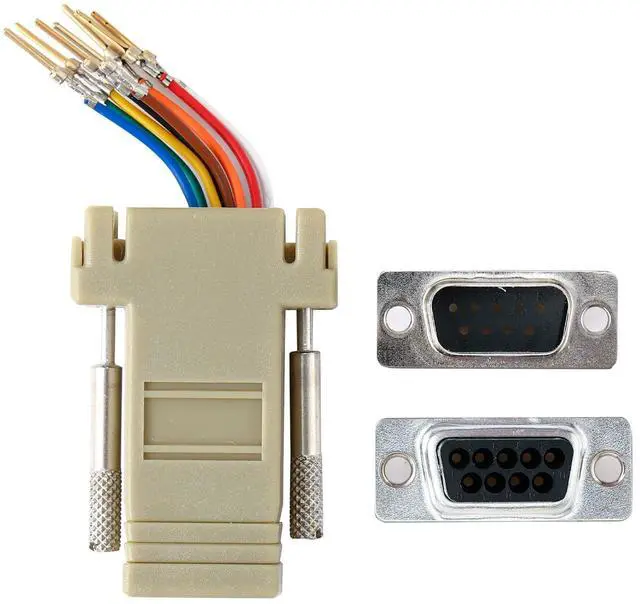

ANMBEST 10PCS DB9 Male Ethernet Adapter, 9 Pin Serial Port Male to RJ45 Ethernet LAN Extend Modular Converter, M/F
- Transmit signals between your RS232 ports over CAT5, CAT5E, and CAT5 network cables. Transmits signals up to 100FT.

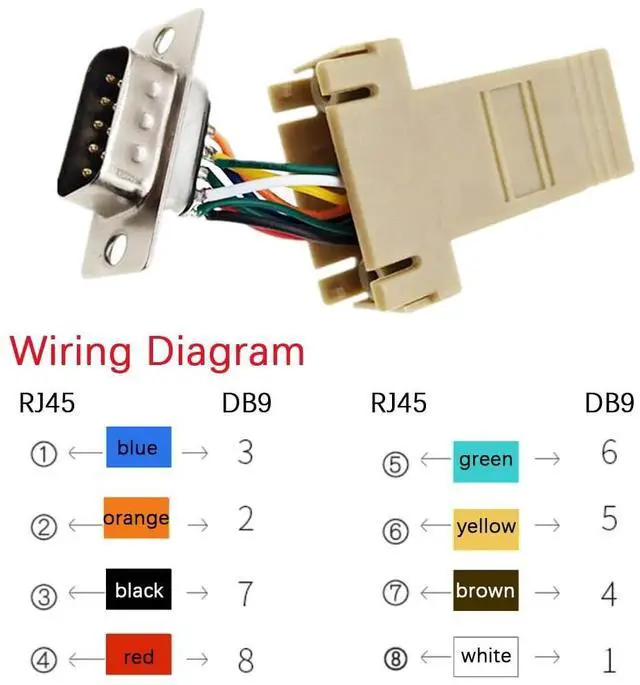

- RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White.
- DB9 Pin Definition: 1.CD(Carrier Detect); 2.RD(Received Data); 3.TD(Transmitted Data); 4.DTR(Data Terminal Ready); 5.GND(Ground); 6.DSR(Data Set Ready); 7.RTS(Request to Send); 8.CTS(Clear to Send); 9.RI(Ring Indicator).
- High quality alloy transmission port reduce the transmission impedance and interference, environmentally ABS material, super wear-resistant.
- The DB9 male to RJ45 adapter converts the pin configuration of the DB9 connector into the appropriate wiring scheme for an RJ45 connector, allowing you to establish a connection between devices that use these different interfaces. It is often used in scenarios where legacy serial devices need to be connected to a network infrastructure using Ethernet technologies.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
A DB9 male to RJ45 adapter is a device that allows you to convert a serial connection from a DB9 (also known as a DE-9) connector to an RJ45 connector, commonly used in Ethernet networking. It enables the connection between devices that utilize different types of connectors.
name: DB9 male to
RJ45 female moduleShell material: ABS
Wire: 1007 # 26 tinned copper wireRequires no external powerRJ45
Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-WhiteDB9
Pin Definition: 1. CD (Carrier Detect); 2. RD (Received Data); 3. TD (Transmitted Data); 4. DTR (Data Terminal Ready); 5. GND (Ground); 6. DSR (Data Set Ready); 7. RTS (Request to Send); 8. CTS (Clear to Send); 9. RI (Ring Indicator)

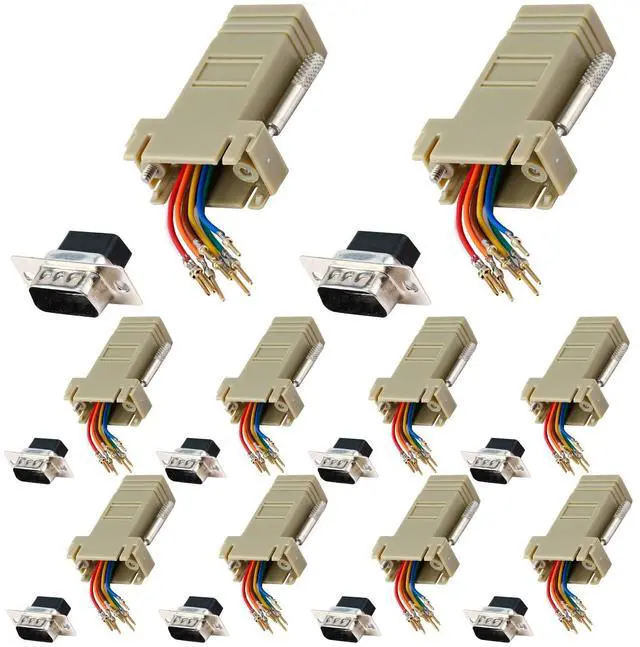

Package includes: 10 PCS DB9 Male to RJ45 Modular Adapter
Specifications
: Productname: DB9 male to
RJ45 female moduleShell material: ABS
Wire: 1007 # 26 tinned copper wireRequires no external powerRJ45
Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-WhiteDB9
Pin Definition: 1. CD (Carrier Detect); 2. RD (Received Data); 3. TD (Transmitted Data); 4. DTR (Data Terminal Ready); 5. GND (Ground); 6. DSR (Data Set Ready); 7. RTS (Request to Send); 8. CTS (Clear to Send); 9. RI (Ring Indicator)
Package includes: 10 PCS DB9 Male to RJ45 Modular Adapter
