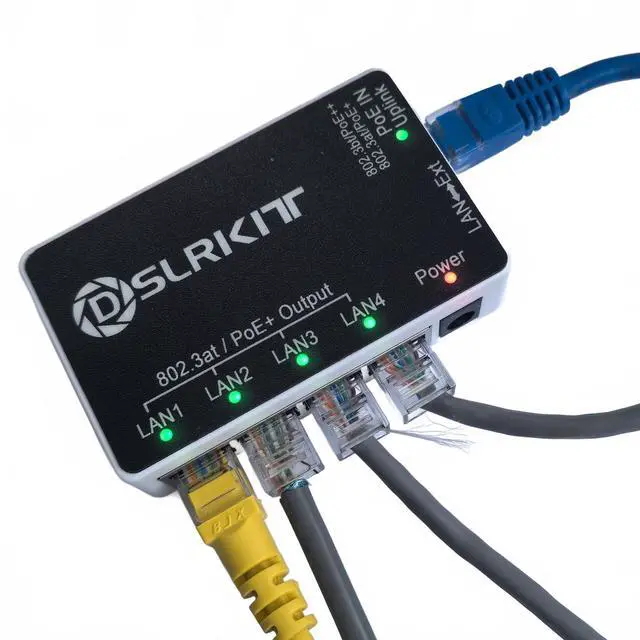

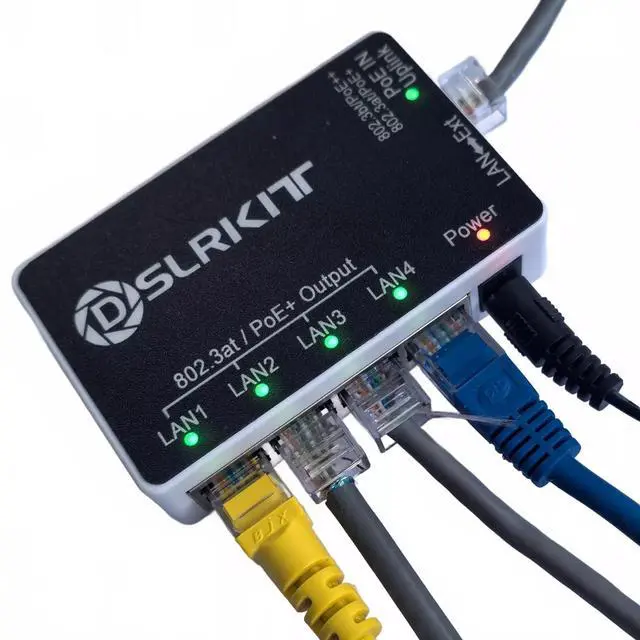

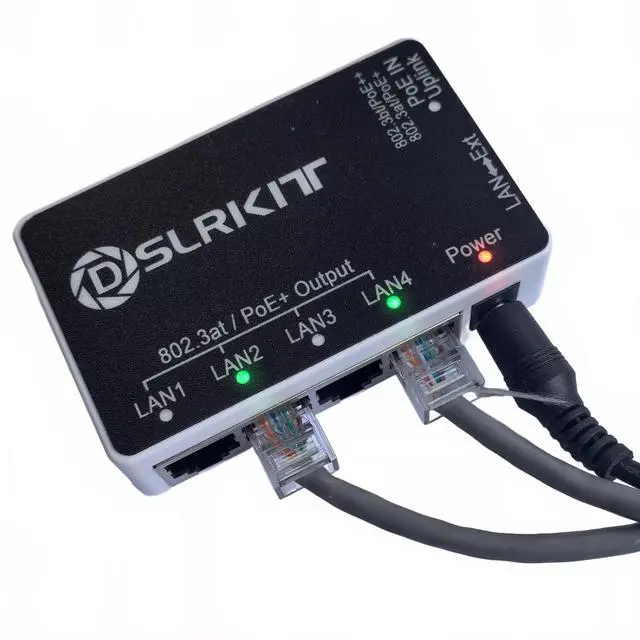

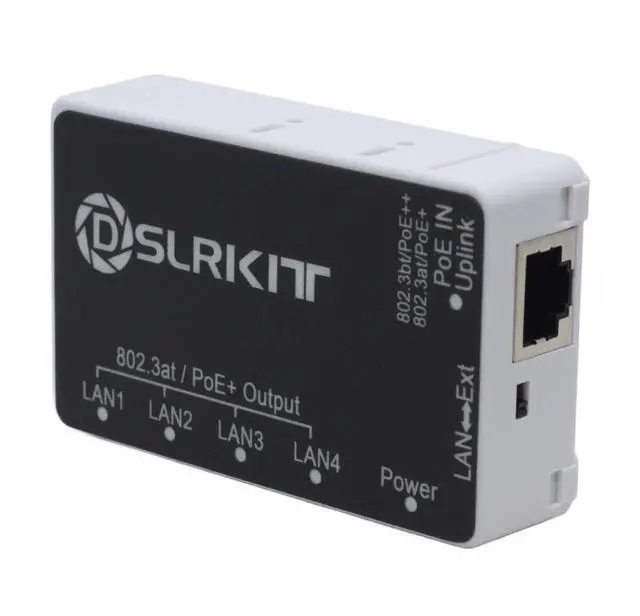

DSLRKIT PoE++ 90watt 5 Port Gigabit PoE Passthrough Switch Extender Repeater 802.3bt in 802.3AT Out

NOTE: 1. This product is a PoE Passthrough Switch, designed to operate by connecting its PoE IN port to a PoE-enabled switch or PoE injector. When connected, it works without the need for an external power adapter. 2. Since most users power this device via PoE, no power adapter is included in the package. If you plan to use the DC input and require PoE output on LAN1-4 ports, please use a compatible DC 48V-57V power adapter with the following specifications: DC
port: 5.5 mmx 2.1 mmDC
Input Polarity: Positive inside (+), Negative outside (-). FeaturesThe PoE Extender/Switch requires no local power supply and is powered by the uplink port PoE input. It also supports
DC power input: DC 12V-57V, 5.5 x 2.1 mm DC ports*. Supports PoE++ ( 802.3 bt) power input with a maximum input power of 90 watts and a total output power of 72 watts for LAN1-LAN4 PoE. LAN1-LAN4 supports PoE+ ( 802.3 at) output.
LAN1-LAN4 Extended Mode: Maximum cable length is up to 250 meters,
Ethernet speed: 10 Mbps**LAN1-LAN4
LAN mode: Maximum cable length up to 100 meters,
Ethernet speed: 1000 MbpsAutomatically detects and protects PoE devices from damage. Supports IEEE 802.3 af/ 802.3 at/ 802.3 bt (up to 90 watts) Power over Ethernet (PoE) switchesSupports DC 48V-57V passive Power over Ethernet PoE switchesSupports DC 48V-57V passive Power over Ethernet PoE injectorsThe PoE Extender/Switch has five 10/100/1000 Mbps PoE ports, with the Uplink port for PoE input (IEEE 802.3 bt/ 802.3 at/ 802.3 af compliant) and LAN1-LAN4 ports for PoE output (IEEE 802.3 at/ 802.3 af compliant). All ports are 10/100/1000BASE-TX compliant. The PoE Extender extends the transmission distance to 100-250 meters over Cat5E/6E UTP cables. This provides great flexibility in extending PoE distances. ***When the DC interface input voltage is lower than DC 40V, PoE output on LAN1-LAN4 is disabled. If PoE functionality is required, it is recommended to use a DC 48V-57V power supply.
**Ext mode Note: 1. When Ext mode is enabled, the maximum bandwidth for LAN1-LAN4 network ports is reduced to 10 Mbps per port. Please check your IP camera's bit rate settings. We recommend that the bit rate does not exceed 8 Mbps (8192 Kbps). 2. When Ext mode is enabled, Isolates LAN ports from each other while maintaining uplink access, reducing broadcast storms and improving network stability. Support IEEE 802.3 af/at/bt power supplySupport DC 5.5 x 2.1 port input power supplyDC
Input Power Pin: positive inside (+), negative outside (-)Support non-standard PoE 48-57V power supplyUplink input power supply
PoE pins: 1/2(+), 3/6(-), 4/5(+), 7/8(-)LAN1-LAN4 output power supply
PoE pins: 1/2(+), 3/6(-)PoE
total input power: 90
wattsPoE total output power: 72 wattsMaximum power output of a single
PoE port: 25
wattsTransmission distance: 100-250m with Cat5e, Cat6, or
higherEthernet speed: 10/100/1000
MbpsNetwork management type:
UnmanagedEnvironment: With 6 KV lightning protection isolationInternational
Protection Rating: IP50Working
temperature: -10 to 60 (14 to 140)
Storage temperature: -40 to 85 (-40 to 185)Working humidity: 10%
to 90% non-condensingStorage humidity: 5%

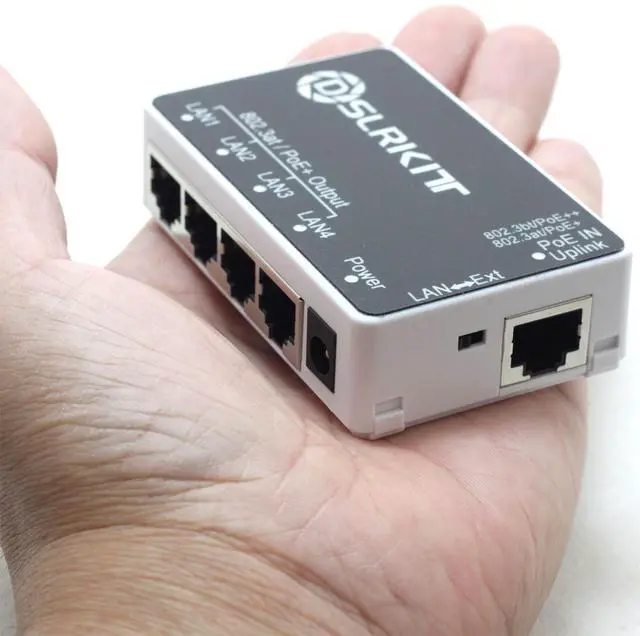

to 95% non-condensingDimensions: 8 cm x 5 cm x 2.2 cm ( 3.15 inches x 1.97 inches x 0.87 inches)Product weight: 62.5 gItem
Included: 5-port Gigabit PoE Passthrough Switch x1
