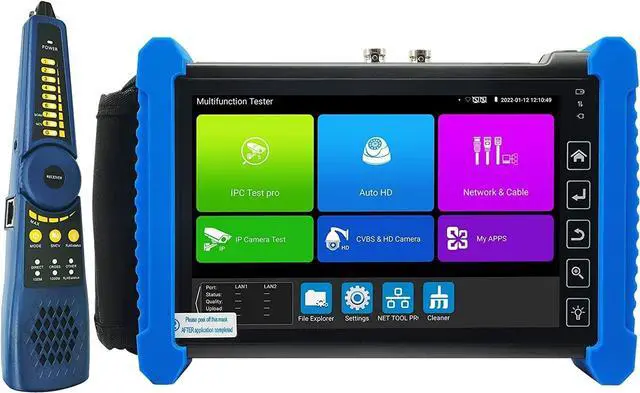

Rsrteng CCTV Tester,IPC-7600CADHS Plus 8K 32MP IP Camera Tester with Cable Tracer 4K 8MP AHD CVI TVI SDI CVBS Coaxial Camera Tester 7 Touch Screen Monitor Support HD VGA TDR WiFi Audio POE RS485

Upgrade NEW CCTV

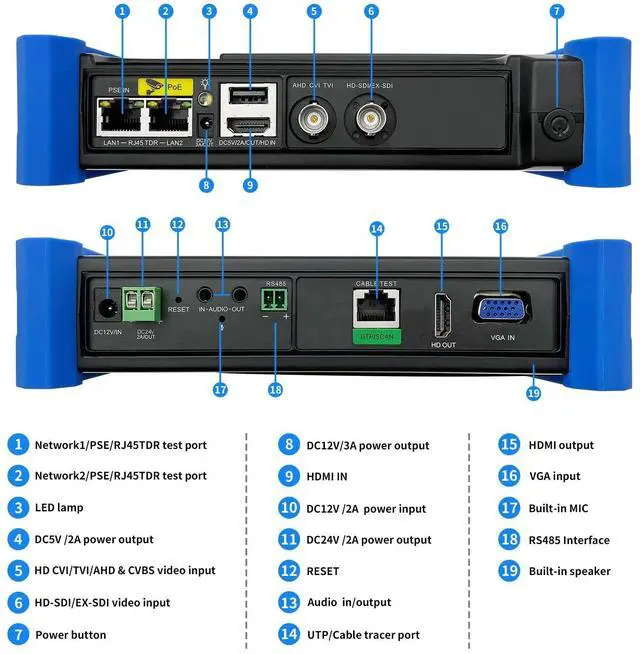

Camera TesterModel: IPC-7600CADHS Plus. 7 inch touch screen tester, 1280*800 high resolution. Use Android 9.1 OS. Support Cable tracer, TDR cable test. 8K, Gigabit Ethernet Ports, 2.4GH z WiFi (Not 5G), POE, RS485, TF card slot. HD I/O, VGA input, Audio I/O. The camera tester tool will make your installation process simple and efficient.
Note: Please do not connect any live cables or equipment to the TDR or UTP interfaces. ^^ 8K IP Camera TestHD camera tester support max H. 265 8K 32MP 8160x3616p 24fps 4K 12MP 4000*3000p 30fps IP camera test. In H. 265 encoding mode, the main stream test image supports a maximum resolution of 8K/24FPS. Support batch activate for Hik & DH cameras and modify IP address, password etc; IP Discovery /RTSP play/Client APK. support face recognition and create test report. ^^ HD Coaxial Camera Test Built-in "Auto HD" APP can automatically recognize the camera type. Max 8MP (3840x2160P) TVI/AHD/CVI/EX-SDI, HD-SDI, 3G-SDI/CVBS analog camera test, NTSC/PAL (Auto adapt). Support Coaxial PTZ control & call OSD menu, analog level test, TVI 5.0 audio test. RS485 control, compatible with more than 30 protocols such as for PELCO-D/P etc. ^^ Powerful network tool & Cable TracerSupport PoE IEEE 802.3 af/at 48V, maximum power 30W, UTP cable test, POE test RJ45 TDR cable test. Built in 2.4GH z W-i-Fi analyzer, create hotspot. Support snapshot, video record & playback; Quickly search BNC cable, network cable and telephone cable from the mess cables and NCV Voltage Detector.

With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables. Cable tracer support AC Voltage Detector. ^^ Quality AssuranceTester Dimension/Net weight 8 x 5.5 x 1.85 inch/ 0.94 kg( 2.1 lbs). Continue to browse our web page to get more detailed parameters. We tested every cctv camera tester before sent it, to ensure that you will not receive defective products.
