FanyiTek Audio LVDs Controller Board for 21.5 inch 1920x1080 LM215WF3-SLA1 30pin WLED LCD Screen
- Compatible Screen model 21.5 inch 1920x1080 LM215WF3-SLA1 30pin LVDs LCD screen
- LCD Controller BoardVideo input: VGA DVI ,Audio Output: Speaker Connector Pls ensure that the board is used in an insulated environment to avoid short circuits.
- Input Power Supply12V DC more than 3A (power adapter not included in package ,should be prepared by yourself) .
- Compatible partsSpeaker: 8ohm 2W 4Pin PH1.25 connection.

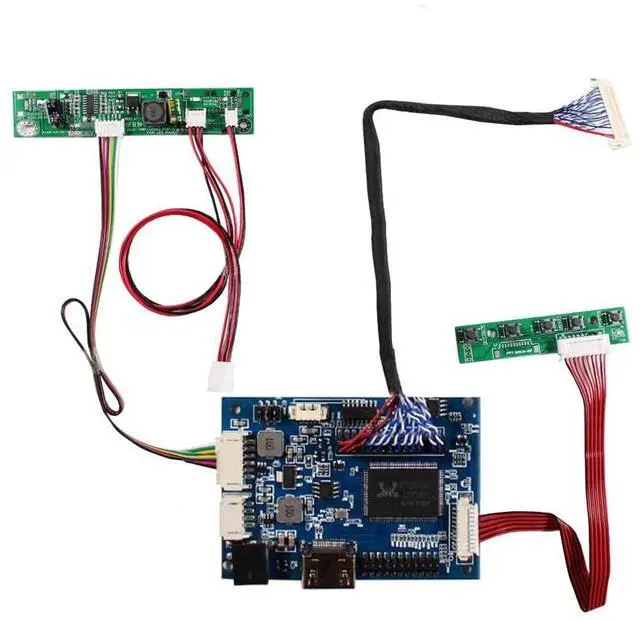

- Plug and play Connecting the cables and ports according to link picture details (if screen white screen ,or led light flash,that means the signal cable connecting wrong ) ,Power on ,enter signal cable ,Button light become green,the screen can work well.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WAudio Output: Speaker (4Pin

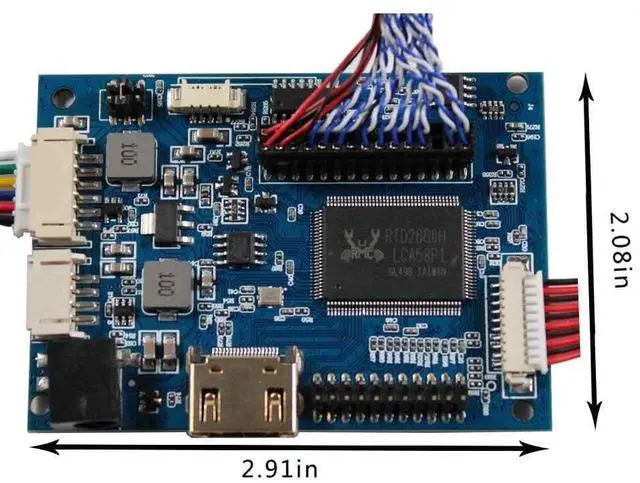

PH 2.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mmCompatible
Work With: 21.5

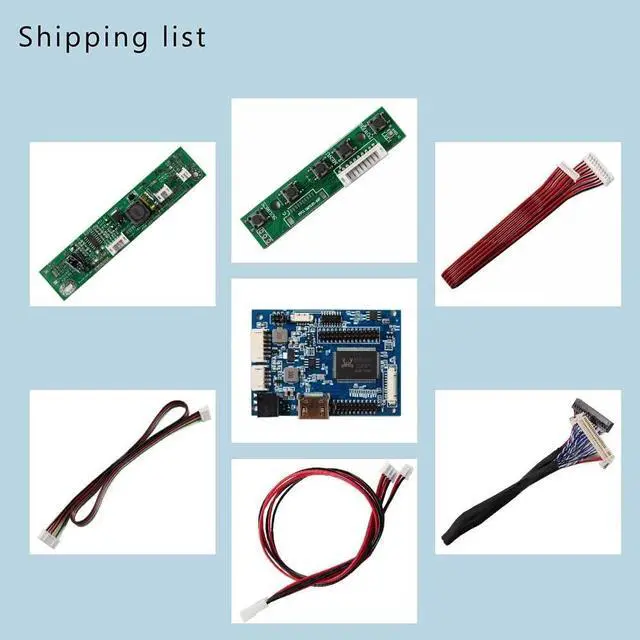

inch 1920x1080LM215WF3-SLA1Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 LVDS Cable1 Backlight Cable1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WAudio Output: Speaker (4Pin
PH 2.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mmCompatible
Work With: 21.5
inch 1920x1080LM215WF3-SLA1Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 LVDS Cable1 Backlight Cable1 Keyboard With Cable
