VSDISPLAY USB C Controller Board Work for 11.6 13.3 14 15.6 17.3 inch 1920x1080 N116HSE-EA1 EA2 N133HSE-EA1 EA3 B140HAN01 B156HAN01 N173HCE-E31 30 Pin EDP LCD Screen

Be the first to review this product...

Compatible Work With: This USB C controller board is specifically designed to work with 30 Pin eDP 1920x1080 LCD screens.11.6 inch(N116HSE-EA1,N116HSE-EA2,N116HSE-EJ1,N116HSE-EB1); 13.3 inch(N133HSE-EA1,N133HSE-EA3,N133HSE-EB1,N133HSE-EB3); 14 inch(B140HAN01.0,B140HAN01.1,B140HAN01.2 ,B140HAN01.3); 15.6 inch(B156HAN01.1,B156HAN01.2,B156HTN03.0,LP156WF4-SP,N156HGE-EA1,NV156FHM-N31,NV156FHM-N41); 17.3 inch(N173HCE-E31,N173HGE-E11,N173HGE-E21,B173HTN01.0,B173HTN01.1)
Input: USB-C Output: eDP USB (max 500mA) Audio Output: Speaker

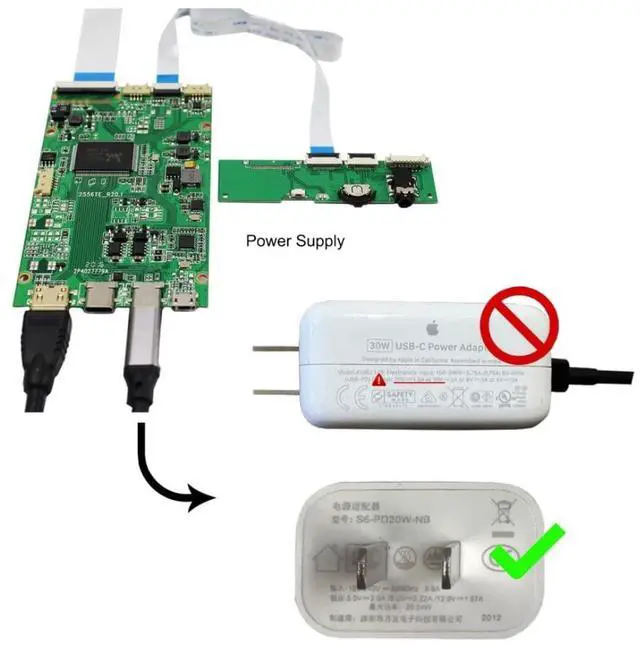

Input Power Adapter: USB-C connector Come In Standby Model When Not Input Signal. Standby Model <0.3W
Application: For DIY project,can used as a replacement board for 30 Pin EDP LCD screen. Help to noticed that pls check and confirm your screen model befor you buy the board

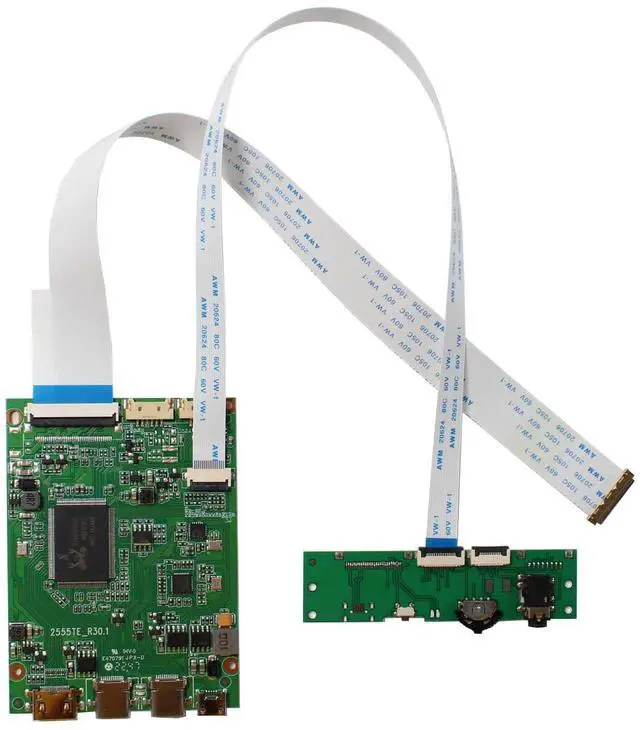

Packing list: 1 LCD Controller Board VS-RTD2556HC-V2 1 Signal Cable 1 Keyboard With Cable

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

LCD Controller Board: USB C Control Board Work for 30 Pin EDP
LCD ScreenInput Power Adapter: USB-C
connectorH/D/R: SupportCome In Standby Model When Not Input SignalStandby Model < 0.3WI nput:
USB-COutput: eDP USB (max 500mA)
Audio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English Chinese French Deutsch Italian Espanol Portugues Turkce PolskiNederlands Korean JapaneseBoard Size: 126mm x 60mm x 4mmCompatible
Work With: 11.6 inch 1920x1080 30 Pin EDP LCD ScreenN116HSE-EA1 N116HSE-EA2 N116HSE-EJ1 N116HSE-EB 113.3 inch 1920x1080 30 Pin EDP LCD ScreenN133HSE-EA1 N133HSE-EA3 N133HSE-EB1 N133HSE-EB314inch 1920x1080 30 Pin EDP LCD ScreenB140HAN 01.0 B140HAN 01.1 B140HAN 01.2 B140HAN 01.315. 6inch 1920x1080 30 Pin EDP LCD ScreenB156HAN 01.1 B156HAN 01.2 B156HTN 03.0 LP156WF4-SPN156HGE-EA1 NV156FHM-N31 NV156FHM-N 4117.3 inch 1920x1080 30 Pin EDP LCD ScreenN173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN 01.0
B173HTN 01.1P acking list: 1 LCD Controller Board VS-RTD2556HC-V21 Signal Cable1 Keyboard With Cable
