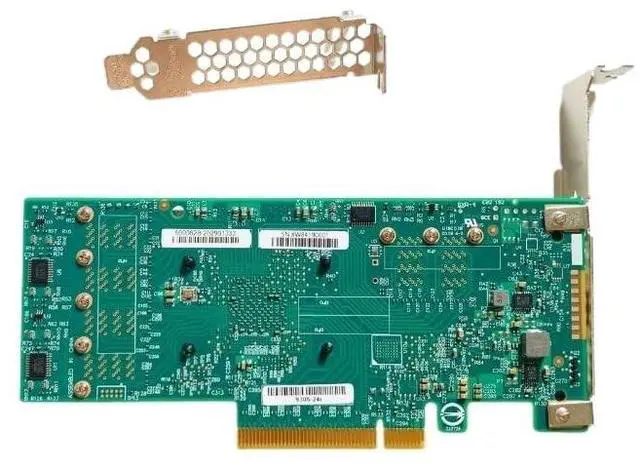

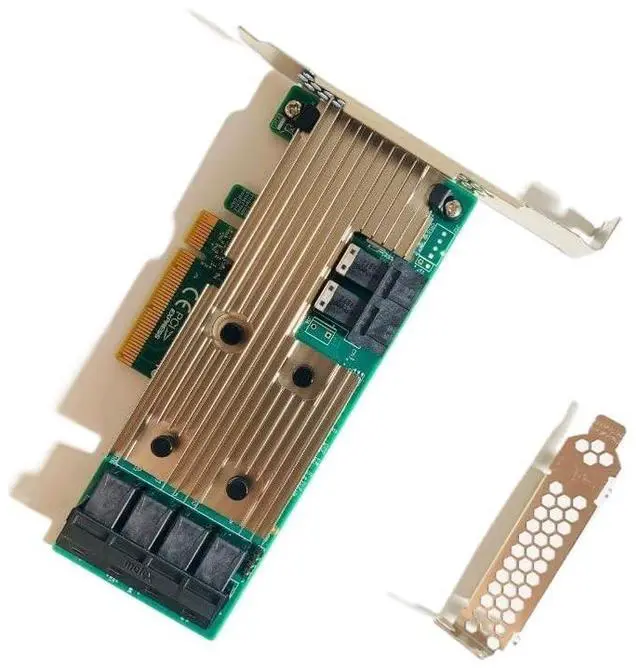

YiBaoTong 9305-24i 12Gbps SAS-3 (Broadcom LSI SAS3324 chip PCIe x8 HBA IT Mode ZFS TrueNAS Unraid
- Supports X8 PCI Express 3.0 Host Interface
- Supports 24 internal 12Gb/s SATA+SAS ports
- Supports SAS link rates of 3Gb/s, 6Gb/s, and 12Gb/s
- Provide 6 x4 internal small SAS HD connectors (SFF-8643)

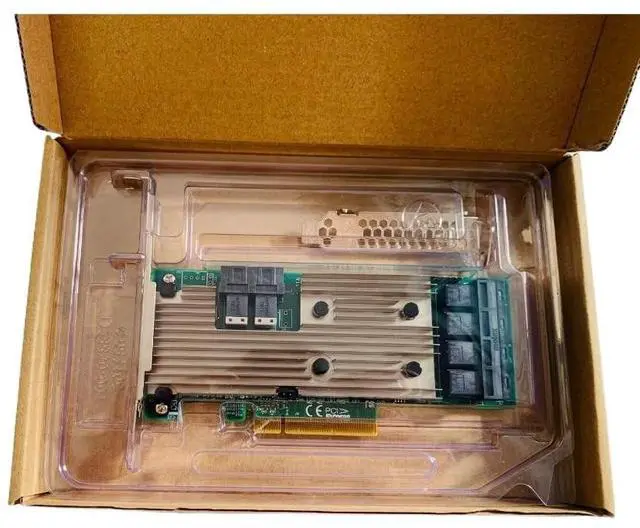

- The package includes: 9305-24i HBA card * 1, High bracket * 1,Low bracket * 1
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Host Bus Type x8 Lane PCI Express 3.0 Devices Supported 1024 Non-RAID SATA/SATA Devices Per Controller Internal Connectors 6 x Mini SAS HD SFF 8643 Internal Ports 24 Operating Temperature 0 C to 55 C Operating Voltage +12V +/-8%, 3.3V +/-9% OS Support Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical
PCI Power Typical: 16.2W Cable Support Passive Copper, Activate Optical I/O Controller SAS 3224 Operating Humidity 5% to 90%, Non-Condensing Brackets Full Height and Low Profile Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), Canada (ICES-003, Class B, EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Korea (RRA no 2013-24 25), RoHS, Safety: EN60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE Data Transfer Rate 12Gb/s SAS-3 Compliant
PCI Power Typical: 16.2W Cable Support Passive Copper, Activate Optical I/O Controller SAS 3224 Operating Humidity 5% to 90%, Non-Condensing Brackets Full Height and Low Profile Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), Canada (ICES-003, Class B, EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Korea (RRA no 2013-24 25), RoHS, Safety: EN60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE Data Transfer Rate 12Gb/s SAS-3 Compliant
