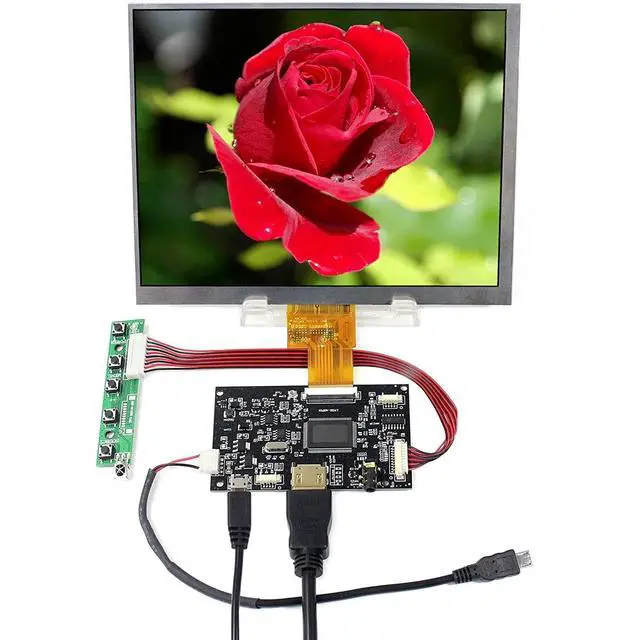

VSDISPLAY 8" 1024X768 IPS LCD 8 inch HJ080IA-01E with Controller Board
- 8" HJ080IA-01E 1024X768 LCD Screen: Brightness 350 cd/m (Typ.) Contrast Ratio 800:1 (Typ.) (TM)
- Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
- LCD Board Work for 40P TTL Interface LCD Screen
- Recommend use Input Power Adapter: 5Vdc More than 1A. Come In Standby Model When Not Input Signal Standby Model <1W

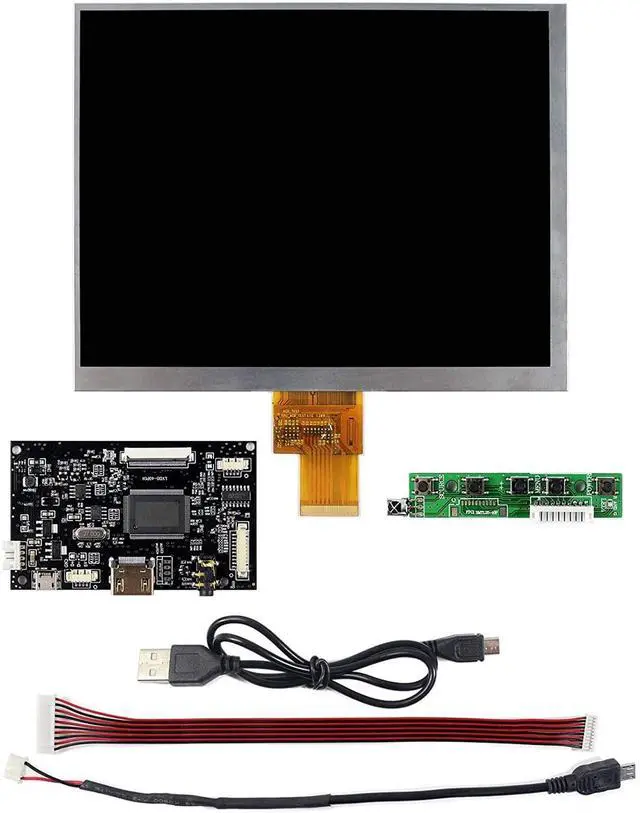

- Packing list : 1 LCD Controller Board VS-TY2660H-V815 1 8inch HJ080IA-01E 1024X768 IPS LCD Screen 1 USB Power Cable 1 Keyboard With CableIf you have any question,please feel free to contact us via 'ask a question'.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

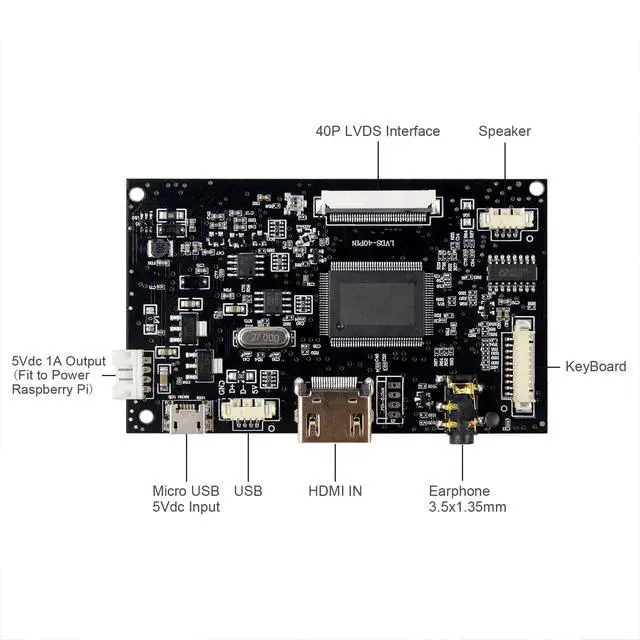

LCD Controller Board: LCD Board Work for 40P TTL Interface
LCD ScreenInput Power Adapter: 5Vdc More than 1A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input:
Audio: EarphonePower
Connector: PH 2.0
Micro USBOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 88mm x 53mm x 7mm8" HJ080IA-01E 1024X768
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024 (RGB) 768Outline Size 174 1362.75 (HVD) Display Area 162.08 121.54 (HV) Brightness 350 cd/m (Typ. )Contrast Ratio 800:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface Parallel RGB (1 ch, 8-bit), 40 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 LCD Controller Board VS-TY2660H-V8151 8inch HJ080IA-01E 1024X768 IPS LCD Screen1 USB Power Cable1 Keyboard With Cable
LCD ScreenInput Power Adapter: 5Vdc More than 1A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input:
Audio: EarphonePower
Connector: PH 2.0
Micro USBOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 88mm x 53mm x 7mm8" HJ080IA-01E 1024X768
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024 (RGB) 768Outline Size 174 1362.75 (HVD) Display Area 162.08 121.54 (HV) Brightness 350 cd/m (Typ. )Contrast Ratio 800:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface Parallel RGB (1 ch, 8-bit), 40 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 LCD Controller Board VS-TY2660H-V8151 8inch HJ080IA-01E 1024X768 IPS LCD Screen1 USB Power Cable1 Keyboard With Cable
