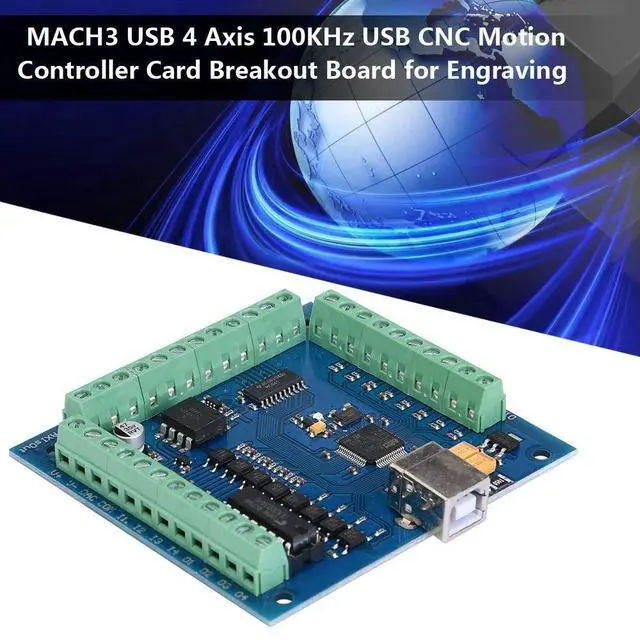

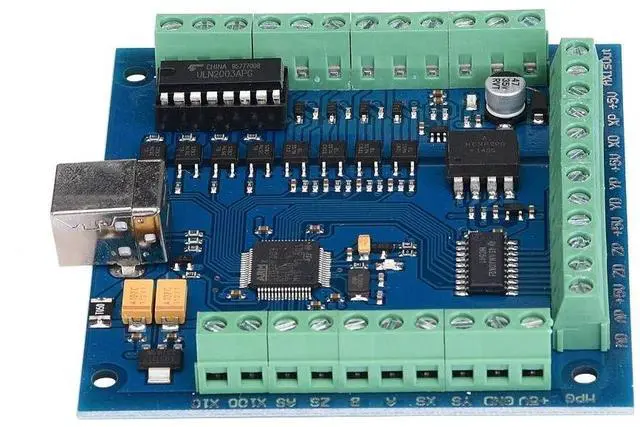

4-Axis USB CNC Motion Controller Card, 100KHz Frequency, Motion Control Board with 0-10V Output, 4 Input/Output Ports for Engraving Machine Stepper Motor
- 0-10 V OUTPUT PORT---Having 0-10V output port, the software can be used to control the spindle motor speed. With 1 status LED, the connection status could be indicated on the board clearly
- 4 GENERAL-PURPOSE INPUTS---With 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
- 4 GENERAL-PURPOSE OUTPUT---With 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device
- SUPPORT---The motion card supports automatic probe tool, emergency input, limit switch, connecting electronic handwheel. It also need an external 24V DC power supply to isolate USB and external port, making the system more stable

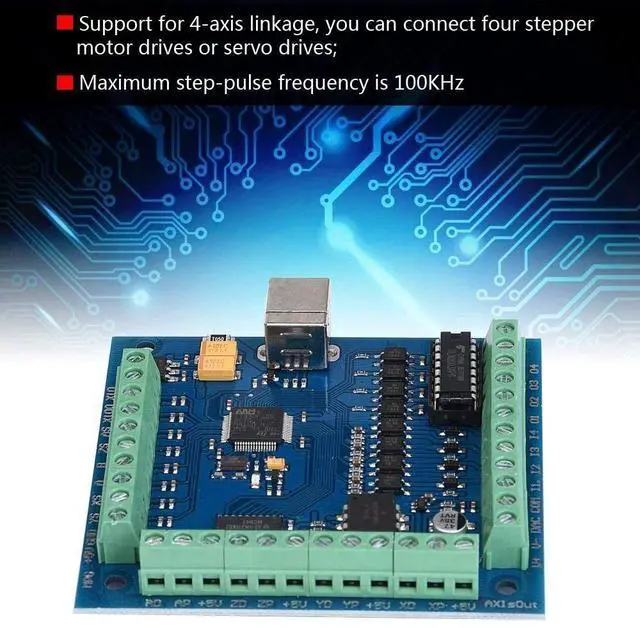

- 100 KHZ---The maximum step-pulse frequency is of motion card is 100KHz, which is suitable for the servo or stepping motor. Support for 4-axis linkage, you can stepper motor drives or servo drives
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This USB motion control card has the below advantages: small volume, easy to use, has a strong anti-interference ability, No need to install any USB drivers, it can be used after plugging in the computer., suitable for all versions of Fully supporting all versions.
Specification: Product
name: motion control cardSupport
Axis: 4Support
drive type: stepper/servo
driverMaximum step-pulse frequency:
100KHzWeight: Approx.

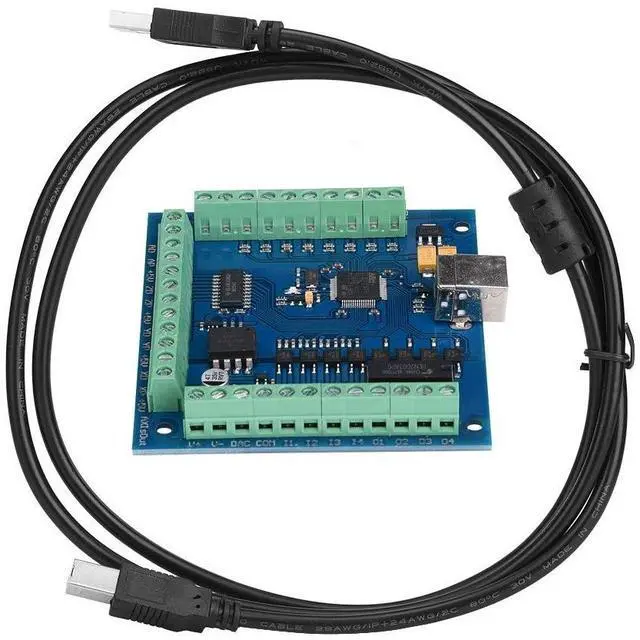

128g/ 4.5 ozPackage list: 1 Motion Card1 cable
Specification: Product
name: motion control cardSupport
Axis: 4Support
drive type: stepper/servo
driverMaximum step-pulse frequency:
100KHzWeight: Approx.
128g/ 4.5 ozPackage list: 1 Motion Card1 cable
