3.5" LCD Display Module ESP32-3248S035C WiFi+Bluetooth ESP32 Development Board 320x480 ST7796 Driver 3.5inch Capacitive Touchscreen for Arduino
- ESP32-3248S035C LCD module uses ESP32-S3 module as the main control, dual-core MCU: ESP32-D0WDQ6, integrated WI-FI&Bluetooth functions
- The main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size: 4MB+4MB, display resolution: 320X480, capacitive touch

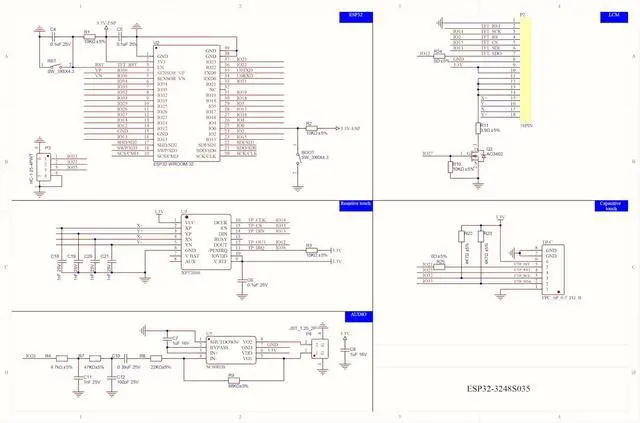

- The module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit

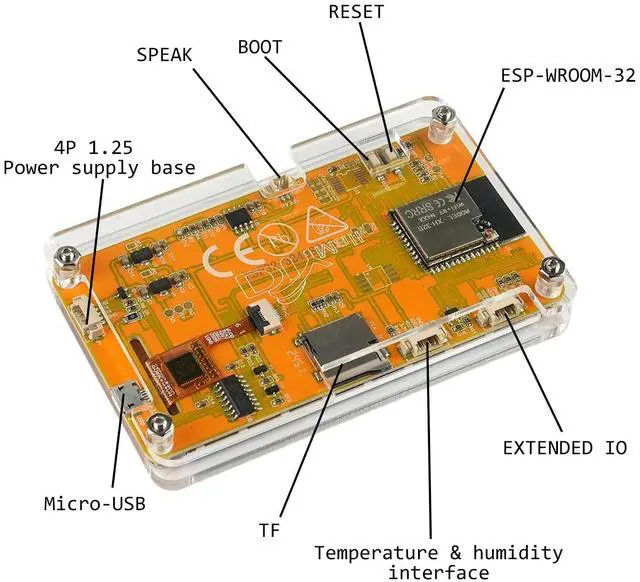

- Multiple interface configuration: TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface
- Supports development in Arduino-IDE, ESP IDE, Micropython-and-Mixly

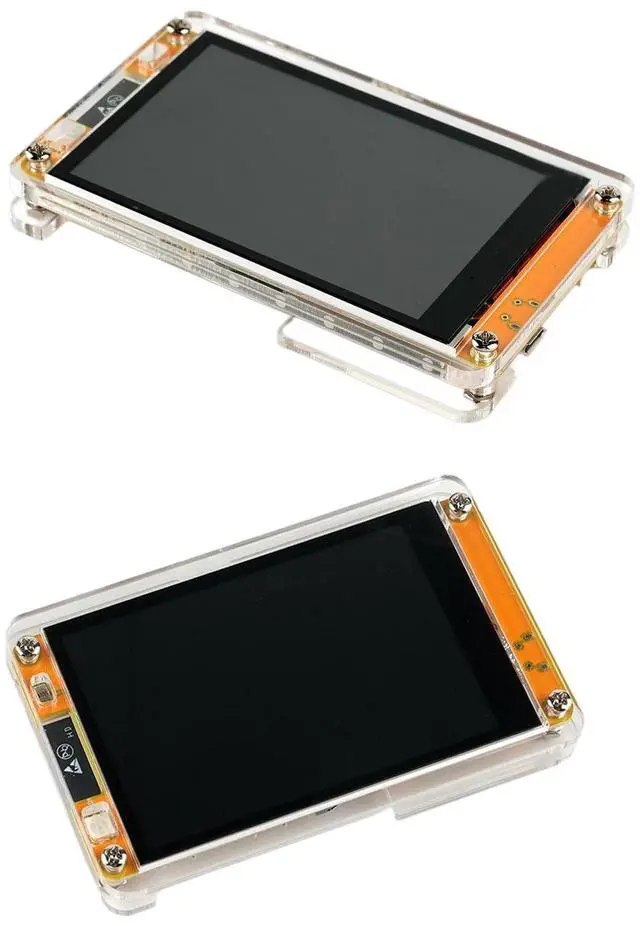

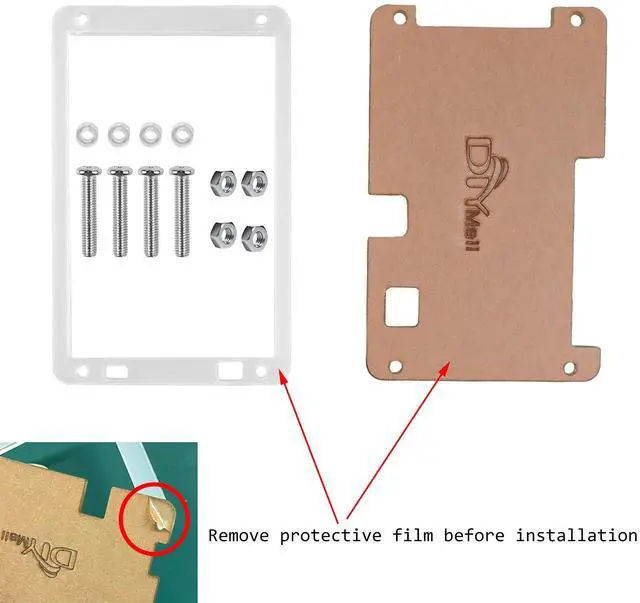

- What you will get: 1 x 3.5" LCD Display + 1 x Acrylic case for ESP32-3248S035C Display
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features 3.5 -inch color screen, support 16 BIT RGB 65K color display, display rich colors320X480 resolutionThe sample program has been programmed in the factory and can be plugged inWith TF card slot for easy expansion storage (TF card does not included) Provide arduino library functions and sample programs to facilitaterapid secondary developmentSupport one-click download programMilitary-grade process standards, long-term
stable workDisplay color: RGB
65K colorCapacitive touch:
ESP32-3248S035CSize: 3.5
inchType: TFT
Driver chip:
ST7796Resolution: 320*480 (Pixel)
Effective display area: 73.44 * 48.96 (mm)
Module size: 101.5 * 54.9 (mm)
View: >60Operating
temperature: -20~70Storage
temperature: -30~80Operating
Voltage: 5VPower
consumption: About

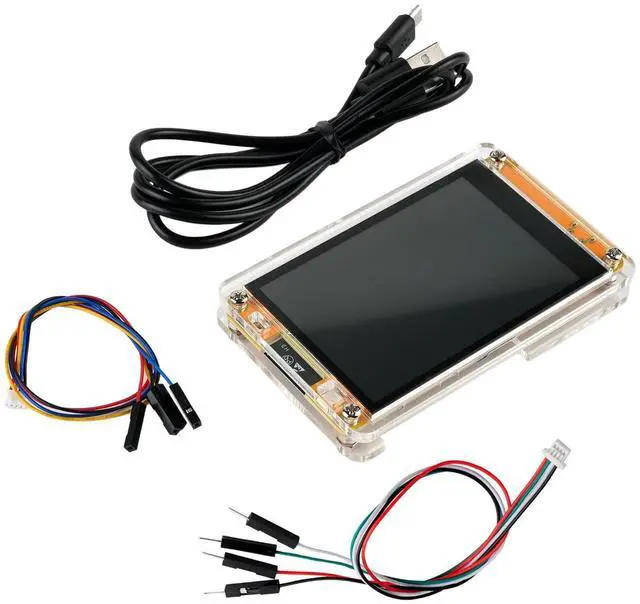

120mAPackage includes: 1 x 3.5" LCD Display1 x Acrylic case for ESP32-3248S035C Display
stable workDisplay color: RGB
65K colorCapacitive touch:
ESP32-3248S035CSize: 3.5
inchType: TFT
Driver chip:
ST7796Resolution: 320*480 (Pixel)
Effective display area: 73.44 * 48.96 (mm)
Module size: 101.5 * 54.9 (mm)
View: >60Operating
temperature: -20~70Storage
temperature: -30~80Operating
Voltage: 5VPower
consumption: About
120mAPackage includes: 1 x 3.5" LCD Display1 x Acrylic case for ESP32-3248S035C Display
