DC-DC Converter 12V Step Up to 24V Boost Voltage Transformer (20A 480W)
- Input Voltage: DC 9V-20V / Output Parameters: DC 24V, 20A, 480W.Please ensure that the input power is greater than the load power. This product is only used for power conversion

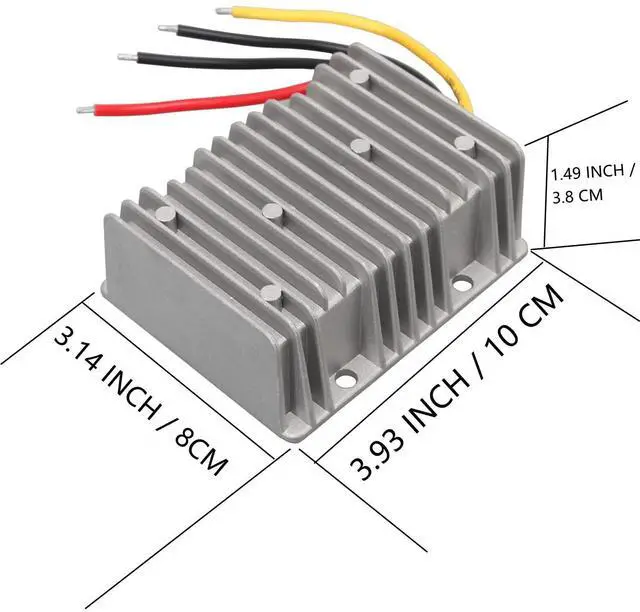

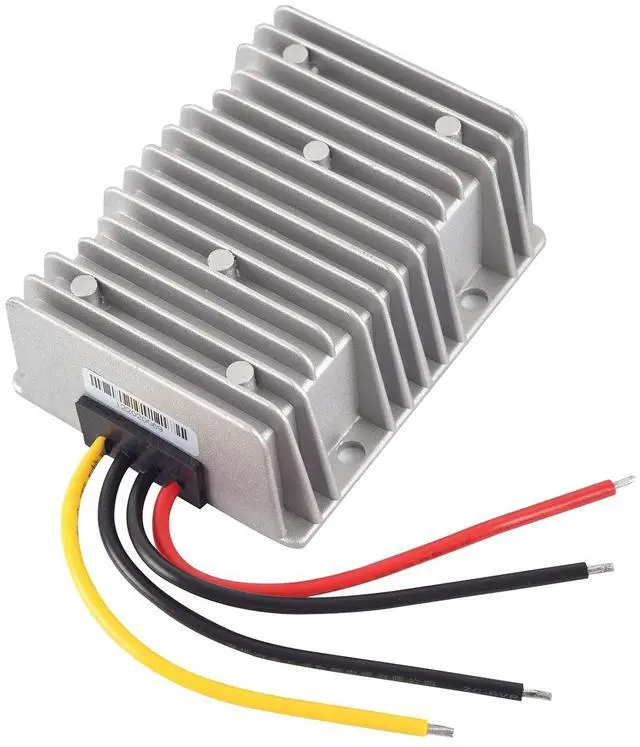

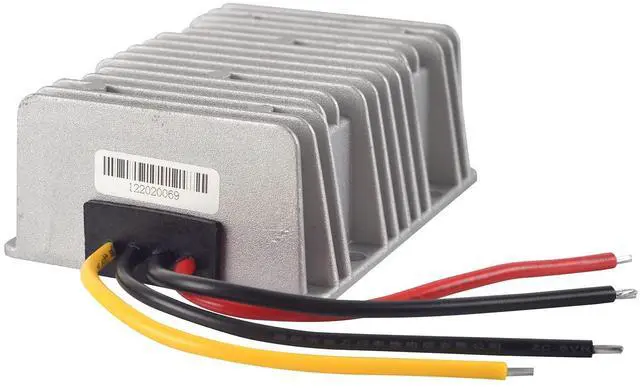

- Wiring:Red: Input + Black: Input - Yellow: Output + Black: Output - Size: 3.93* 3.14 *1.49 inches / 100*80*38mm AWG:12

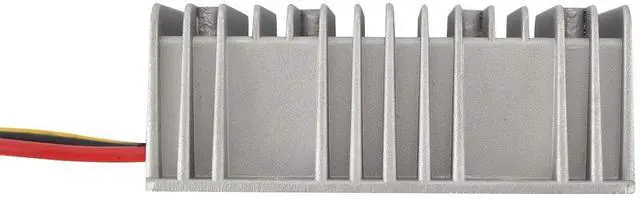

- High conversion efficiency:conversion efficiency up to 95%.Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation
- Application: Widely used in golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, led, instrument, etc
+
+
Overview
Specs
Reviews

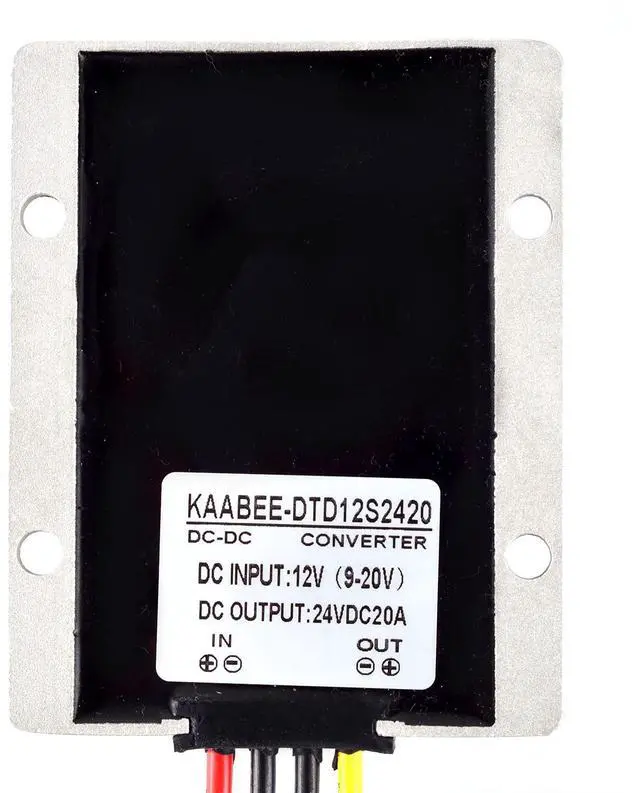

Product model: 12V to 24V
DC Step Up ConverterOutput current: 20AOutput
power:
480WBrand: KAABEE
Input voltage: between DC (9-20)
VOutput voltage: DC
24VVoltage accuracy: 1%Load
regulation rate: 0.2
%Linear adjustment rate: 0.2
%No load current:
24mARipple: 80mAConversion
efficiency: 94%
- 96%Module nature: DC-DC non isolated power supplyProtection grade: IP67Operating
temperature: - 35
C~+80 CBoundary dimension: 100 * 80 * 38Net weight: 480gWiring
mode: lead, line
length 12CMRepair time: 1
yearService life: 100, 000
hoursmatters needing attention: 1. Make sure that all polarities are correct before wiring. Reverse connection will burn out the converter. It is recommended to connect a fuse at the input end (not provided by the manufacturer) 2. Ensure that the battery energy and voltage at the input end are sufficient, otherwise the converter will be in the protection state3. Ensure that the installation environment is well ventilated to avoid high temperature protection and limit current output.
DC Step Up ConverterOutput current: 20AOutput
power:
480WBrand: KAABEE
Input voltage: between DC (9-20)
VOutput voltage: DC
24VVoltage accuracy: 1%Load
regulation rate: 0.2
%Linear adjustment rate: 0.2
%No load current:
24mARipple: 80mAConversion
efficiency: 94%
- 96%Module nature: DC-DC non isolated power supplyProtection grade: IP67Operating
temperature: - 35
C~+80 CBoundary dimension: 100 * 80 * 38Net weight: 480gWiring
mode: lead, line
length 12CMRepair time: 1
yearService life: 100, 000
hoursmatters needing attention: 1. Make sure that all polarities are correct before wiring. Reverse connection will burn out the converter. It is recommended to connect a fuse at the input end (not provided by the manufacturer) 2. Ensure that the battery energy and voltage at the input end are sufficient, otherwise the converter will be in the protection state3. Ensure that the installation environment is well ventilated to avoid high temperature protection and limit current output.
