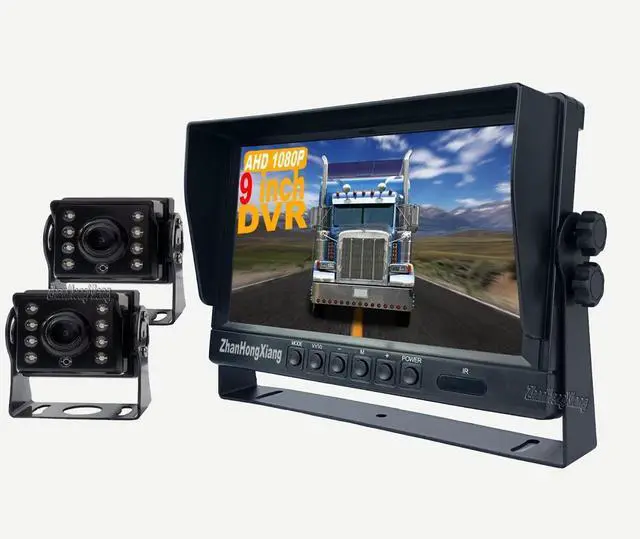

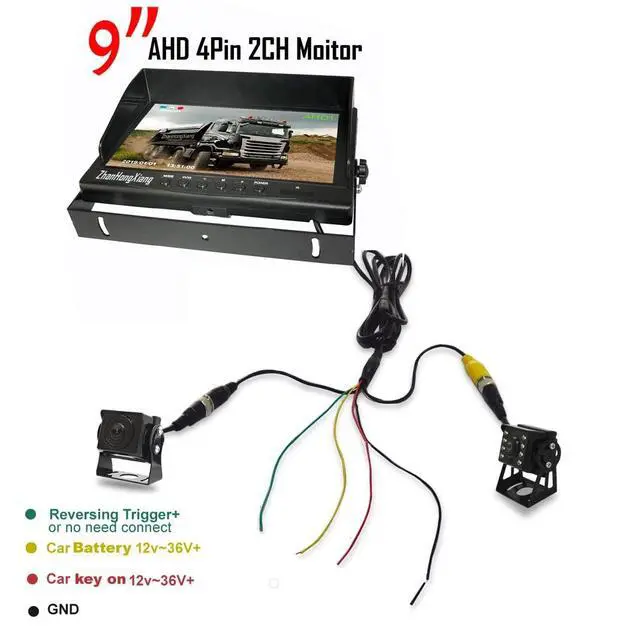

This is new update Model AHD 1080P backup camera system for rv trucks and 9 inch DVR recorder reverse rear view ips monitorThe 9 inch large Monitor has two video input and 2-split functionsEasy and Simple to install, Only need to connect the monitor wire with vehicle electronics system: Red wire to car 12V/24V +Yellow wire to car battery+Black wire to GND, Green wire to reversing Trigger+ (or No need to connect) Applicable to variety of
Vehicles: Car, BUS, Truck, RV, Motorhome, camper 5th Pickup Boat Tractor Trailer Heavy Duty etcSupport reversing used or permanently used9 inch IPS AHD Screen Monitor with
DVR RecorderMonitor dimensions:
230*155mmResolution: 1024*600
PixelsSystem: PAL&NTSC
auto-switchingPower: DC
12V-24VConsumption:

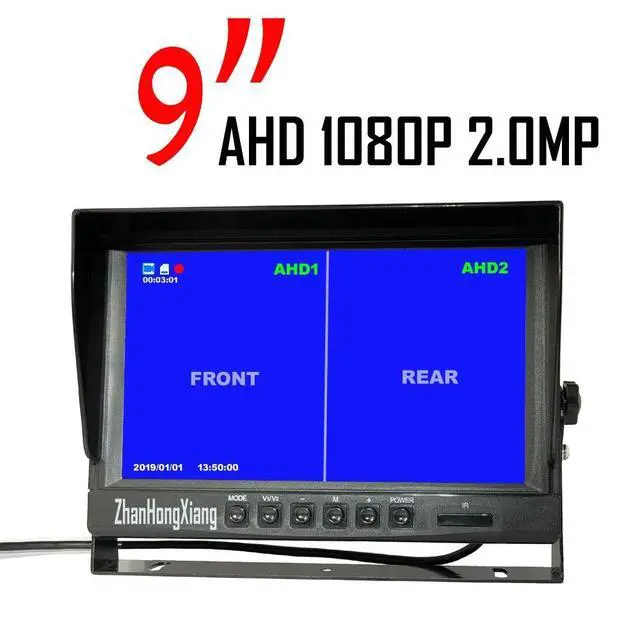

8WVideo: 2 way video inputHigh Resolution with 2-Split functionsDisplay single image or 2 split imageBuild in Great Loop DVR Recorder functionsCan search out video with playback easilyCome with 32GB SD Memory Card, Max support 128GBImage Can be flip with mirror /none Mirror or
Upside DownNet Weight: Approx.
1000gLauguage: English, ChineseAHD 8 LED IR Car Backup Rear View Camera100% Not Wash Out AHD Mirror image Sensor no
Grid LinesLens: 2.3 mm (150 Wide View angle)
Number of pixels: 2 Megapixel Camera (1920*1080P)
Minimum illumination: 0 LUX
Backlight compensation: AutoWhite
Balance: Auto TracingAuto
Gain Control: AutomaticNight
vision: 8
LED IRVideo Output: 4 Pin aviation connectorwork
Temperature: -20C~+60CPower
Requirement: DC
12V-24VWeight: Approx
200gWaterproof: IP 69K
