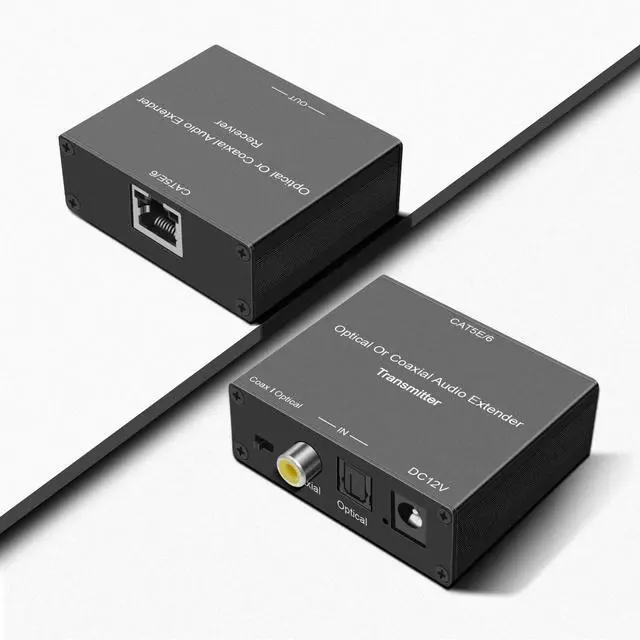

Digital Audio Extender Digital Optical/Coaxial Digital Audio Extender/Converter Over Single Cat5e/6 Cable (PoC) up to 500 Standard Supported LPCM, DB Digital 5.1, DTS, and Doby True HD
- Digital Audio Extender: allows digital optical(Toslink) or digital coaxial (S/PDIF) audio signal to be transmitted over Cat 5E/Cat 6 cable.
- Experience the highest quality of audio with the following supported formats: Dolby Digital, DTS 5.1, DTS-HD, LPCM
- Sampling Rate: Coax(SPDIF), Optical(Toslink) , Up to 96kHz, Max. Distance:500 Foot, Data Transmission Rate:12.8 Mb/s.
- Digital Audio Extender transmitted over cat5e/6, so just need to plug in Transmitter unit to be powered.Power input 12VDC with Indicator Red Led.
- Extender built in surge suppressor to protect audio equipment against damaging voltage spikes. All products include a 1-year manufacturer warranty and free lifetime technical support. Contact information available on our seller page.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Digital Audio ExtenderSupports most standards to transmit one uncompressed lossless PCM audio or compressed 5.1 / 7.1 surround sound, such as Doby Digital Plus or DTS High Resolution Audio over one Cat5e/6 Cable S/PDIF and Toslink digital audio up to 500ft via cat5e/6. Transmitted over cat5e/6, so just only need to plug in Transmitter unit to be powered. Digital Audio Extender built in surge suppressor to protect audio equipment against damaging voltage spikes. Supports Doby Digital 5.1, DTS, and Doby TrueHD. Digital Audio Extender SpecificationData Transmission Rate 12.8 Mb/sSampling rateCoax (SPDIF) Optical (Toslink)
Up to 96kHzToslink spec: Wavelength 660nm (Red), Level -15dB (Max)
SPDIF spec: Input/Output impedance 75 ohms, level 500mVp-pMax.
Distance(Cat5e/6): 500ft (150m)
Power: Power input 12VDC (TX or RX)
Surge Protection: 2KV (different-mode), 4KV (common-mode)Cable
UTP: 24AWG or lower solid copper twisted pair wireImpedance: 100 ohms at 1 MHz;
Maximum capacitance: 20F/foot.
Attenuation: 6.6 dB/1000ft at 1
MHzPackage Contents: Digital Audio ExtenderDC 12V Power AdapterUser Manual
Up to 96kHzToslink spec: Wavelength 660nm (Red), Level -15dB (Max)
SPDIF spec: Input/Output impedance 75 ohms, level 500mVp-pMax.
Distance(Cat5e/6): 500ft (150m)
Power: Power input 12VDC (TX or RX)
Surge Protection: 2KV (different-mode), 4KV (common-mode)Cable
UTP: 24AWG or lower solid copper twisted pair wireImpedance: 100 ohms at 1 MHz;
Maximum capacitance: 20F/foot.
Attenuation: 6.6 dB/1000ft at 1
MHzPackage Contents: Digital Audio ExtenderDC 12V Power AdapterUser Manual
