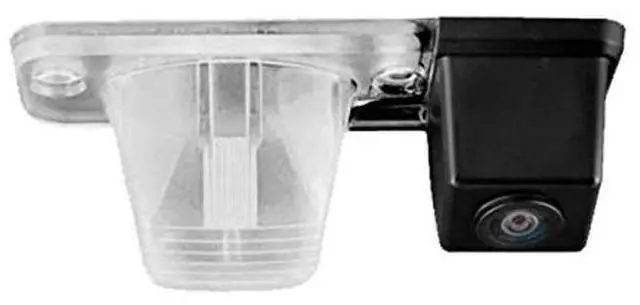

Navinio Waterproof Night Vision HD CCD License Plate Light Camera Rear View Backup Camera for VW T4 Multivan Transporter Caravelle Business car
- Back up parking camera for Volkswagen VW T4 Multivan Transporter Caravelle Business car
- 170 degree visible range works great with the blind spot
- Package includes:1 x CCD Car Camera,1x user manual,1 x 6M video cable,1 X power supply cable
- Route the cable from tailgate to front dash, connect to display with universal RCA connector, you may need additional adapter (not included) if to connect factory radio

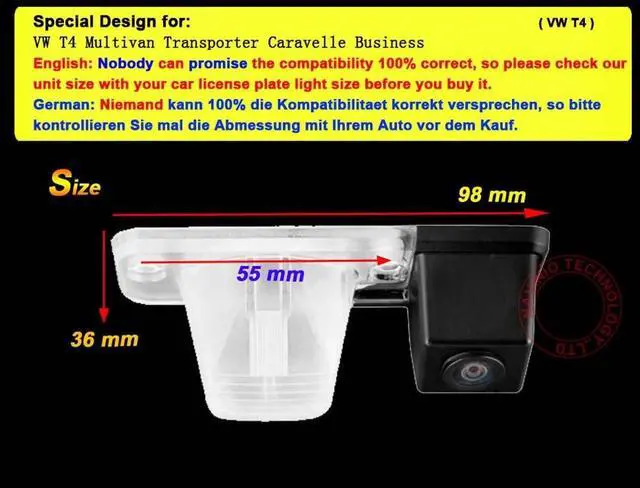

- Remark:This camera do not work well with original factory display/monitor, will work well with aftermarket display/monitor .Please check the dimension for fitting to your number plate light recess before purchasing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This product could fit for all below models as expected: VW T4 Multivan Transporter Caravelle BusinessNotice: Please kindly check our unit size with your actual car license plate light firstly.

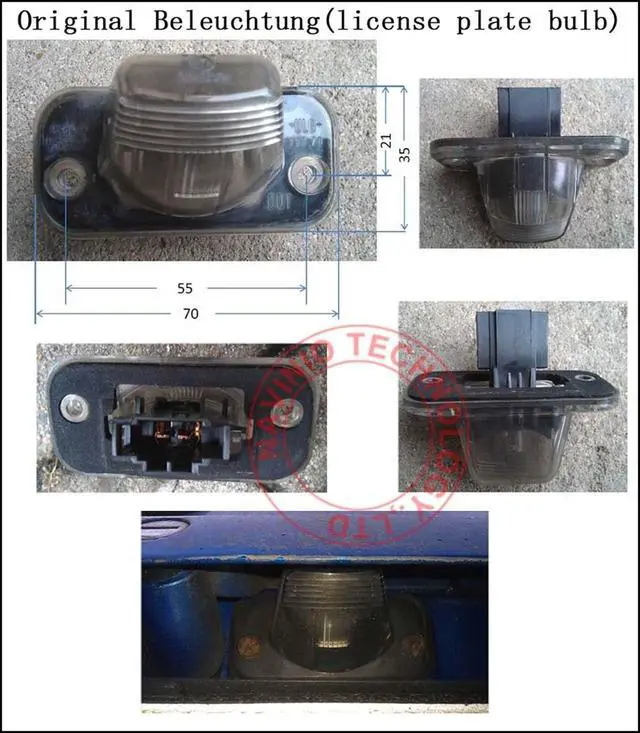

Installation location: Car license plate light hole, keep your car original number plate lamp or with our LED.
Technique Parameter: 1.
TV system: NTSC (if you need PAL, please leave a message)2.
Resolution: 480/520 TV lines3.
Lens angle: 1704.
S/N ratio: more than 48db(AGC-OFF)5.
Video Color: Colorful6.
Video Output: 1.0V p-p, 757.
Image Device: 1/4 inch color8.
Sensing area: 5.78 x 4.19 mm9. Sync.
system: internal10.
Power supply: DC 12V11,
White Balance: Auto12.
Waterproof Class: ip 6613.
Effective pixels: 628 x 586 Pixels14.
Electronic Shutter: 1/60-1/10000 seconds15.
Current Consumption: 150mA16.
Current consumption: 90mA Max17.
Storage temperature: -40C to +60C, RH95% Max18.
Minimum illumination: 0.3L ux/F 1.219.
Operating Temperature: -30C to +50C, RH95%Package
Content: 1 x Car Rear View Camera1 x 6M video cable1 x 1M power cable1 x User Manual
Installation location: Car license plate light hole, keep your car original number plate lamp or with our LED.
Technique Parameter: 1.
TV system: NTSC (if you need PAL, please leave a message)2.
Resolution: 480/520 TV lines3.
Lens angle: 1704.
S/N ratio: more than 48db(AGC-OFF)5.
Video Color: Colorful6.
Video Output: 1.0V p-p, 757.
Image Device: 1/4 inch color8.
Sensing area: 5.78 x 4.19 mm9. Sync.
system: internal10.
Power supply: DC 12V11,
White Balance: Auto12.
Waterproof Class: ip 6613.
Effective pixels: 628 x 586 Pixels14.
Electronic Shutter: 1/60-1/10000 seconds15.
Current Consumption: 150mA16.
Current consumption: 90mA Max17.
Storage temperature: -40C to +60C, RH95% Max18.
Minimum illumination: 0.3L ux/F 1.219.
Operating Temperature: -30C to +50C, RH95%Package
Content: 1 x Car Rear View Camera1 x 6M video cable1 x 1M power cable1 x User Manual
