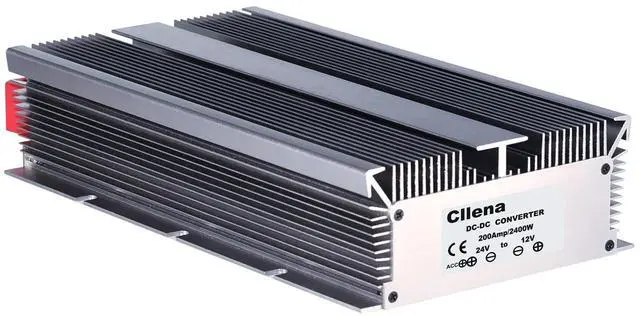

Cllena 24V to 12V Step Down Converter Voltage Regulator 200A 2400W Waterproof DC Buck Transformer Power Supply
- Input voltage range: DC 18-35V; Output voltage: DC 12V(non-adjustable); Output current: 200A; Output power 2400W.
- High conversion efficiency: Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
- Wide application: Large trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, motor, electronic systems and DIY etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Application: 24V DC battery as input power to 12V DC appliances as output load.
Reminder: * Keep good air convection. * Input power should be lead acid battery or lithium battery. * This converter cant charge the battery. * Please install correct fuse in input cable. * Dont connect Negative or GND to vehicle case or chassis. * Never connect the converter to a solar panel or wind turbine. That will burn the converter. * Be sure of the correct polarity of input and output connection, never reverse the polarity, or it burns the converter. * Please dont install any meters between converter to battery and converter to loads. * When in doubt, the larger current converter is always a better choice.
Rated Voltage: 24V DCInput
Voltage Range: 18-35V
DCOutput voltage: DC12V 200AOutput
Rated Power:
2400WEfficiency: 97% (half load); 95% (full load)
No-load current: <
0.1VR ipple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures: IP68Case
Operating Temperature:
-40~85CDimension:
220*156*65mmWeight:
7kgFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 24V to DC 12V step-down converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 24-12V 200A Voltage Converter
Reminder: * Keep good air convection. * Input power should be lead acid battery or lithium battery. * This converter cant charge the battery. * Please install correct fuse in input cable. * Dont connect Negative or GND to vehicle case or chassis. * Never connect the converter to a solar panel or wind turbine. That will burn the converter. * Be sure of the correct polarity of input and output connection, never reverse the polarity, or it burns the converter. * Please dont install any meters between converter to battery and converter to loads. * When in doubt, the larger current converter is always a better choice.
Specifications
: InputRated Voltage: 24V DCInput
Voltage Range: 18-35V
DCOutput voltage: DC12V 200AOutput
Rated Power:
2400WEfficiency: 97% (half load); 95% (full load)
No-load current: <
0.1VR ipple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures: IP68Case
Operating Temperature:
-40~85CDimension:
220*156*65mmWeight:
7kgFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 24V to DC 12V step-down converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 24-12V 200A Voltage Converter
