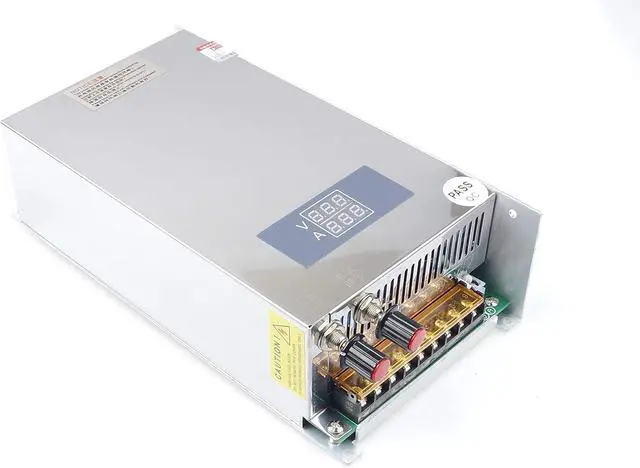

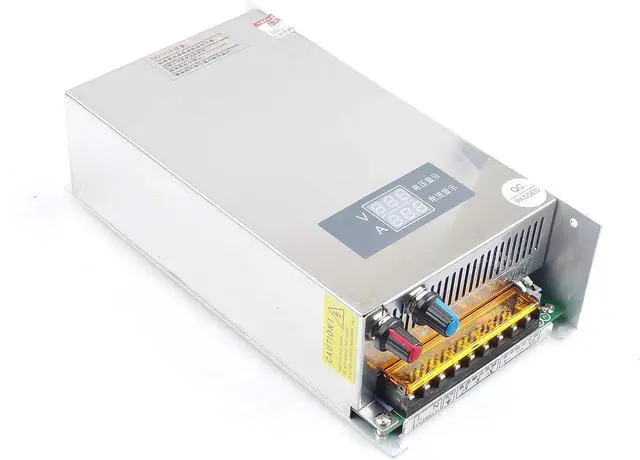

KNACRO 1000W Adjustable DC Power Voltage Converter AC 110V to DC 0-150V 0-6.7A Module 150V 1KW Switching Power Supply Digital Display 150V Voltage Regulator Built in Cooling Fan (150V 6.7A)
- Product ParametersOutput voltage range: 0- 150V continuously adjustable, large output current: 20A, current limiting output current range: (0- 6.7A ) continuously adjustable, ripple voltage: no more than 250mV, voltage stabilizing equivalent internal resistance: no more than 0.5 , overload: 105%~150% of rated output power, operating temperature: - 10~+50C
- Clear LED DisplayThis 1000W Adjustable DC Power Voltage Power supply is equipped with LED Screen , which can clearly display the output voltage and current, Adjustable voltage precision is 0.1V , you can see the working status of your device,No more fear of overvoltage damaging your equipment.

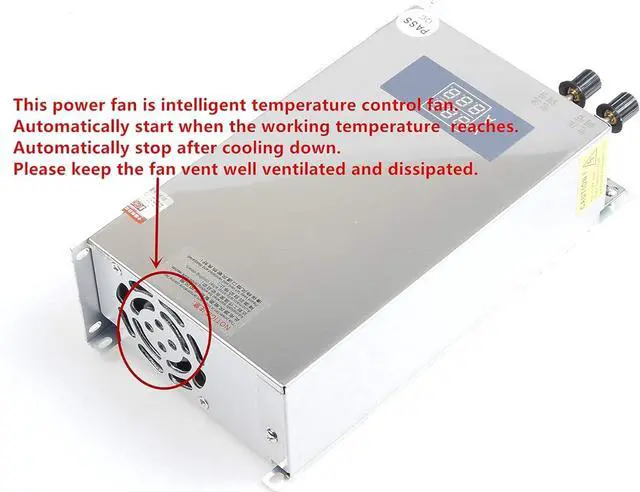

- Smart Cooling System The Cooling Fan are designed to activate only when the power supply is under sufficient loadinternal temperature reach 113, ensuring optimal cooling and improved energy consumption. Say goodbye to noisy and unnecessary fan operation!
- Safe and ReliableThis Power Supply Adapter Come with Overload , overvoltage protect
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DC Output Voltage: 0 - 150V adjustable;
Output Current: 6.7A;
Incoming wire stability: 5%;
Ripple and noise: 180mVp-p;
Efficiency: >85%;
AC input voltange range: AC 110V(90V-132V AC).
AC input current: 8.5A /110V;
Overload protection: 105%-150% cut off output;
Reset: Self reset; Start, Rise, Hold
time: 200ms, 50ms, 30ms;
Operating temperature: -10 - +50;
Power fan working temperature: 40 5.
Working humidity: 20% -90%
RHDimensions: 240 * 124 * 65mm / 9.45 * 4.88 * 2.56 in (L * W * H);
Weight: 1.5KG / 2.43 lb. In-door use only, for this switching power supply is not waterproof.

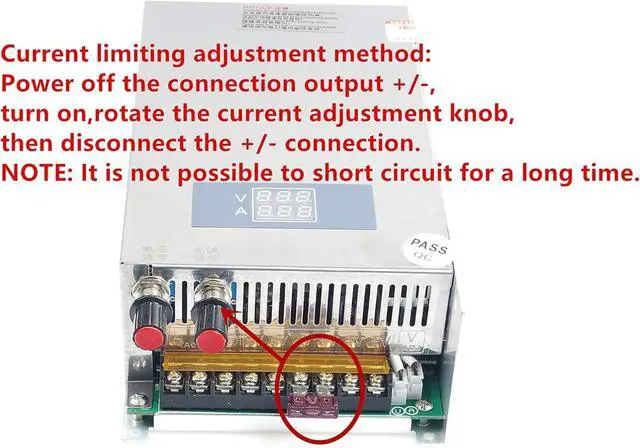

Use and precautions: 1. Before inputting the voltage, make sure that the input voltage is in line with the operating voltage of the power supply. The wrong input voltage will damage the power supply2. Pay attention to positive and negative, do not reverse. 3. Output voltage 0-100% continuously adjustable, with digital output display; output current is not adjustable, limit the highest value; so in the choice, please according to the actual needs. 4. The internal components of the power supply are the best quality, the factory has to undergo a rigorous test, non-general cheap power supply comparable. Can be used for high-end industrial equipment power supply.
Package Included: 1*DC Adjustable DC Switching Power Supply
Output Current: 6.7A;
Incoming wire stability: 5%;
Ripple and noise: 180mVp-p;
Efficiency: >85%;
AC input voltange range: AC 110V(90V-132V AC).
AC input current: 8.5A /110V;
Overload protection: 105%-150% cut off output;
Reset: Self reset; Start, Rise, Hold
time: 200ms, 50ms, 30ms;
Operating temperature: -10 - +50;
Power fan working temperature: 40 5.
Working humidity: 20% -90%
RHDimensions: 240 * 124 * 65mm / 9.45 * 4.88 * 2.56 in (L * W * H);
Weight: 1.5KG / 2.43 lb. In-door use only, for this switching power supply is not waterproof.
Use and precautions: 1. Before inputting the voltage, make sure that the input voltage is in line with the operating voltage of the power supply. The wrong input voltage will damage the power supply2. Pay attention to positive and negative, do not reverse. 3. Output voltage 0-100% continuously adjustable, with digital output display; output current is not adjustable, limit the highest value; so in the choice, please according to the actual needs. 4. The internal components of the power supply are the best quality, the factory has to undergo a rigorous test, non-general cheap power supply comparable. Can be used for high-end industrial equipment power supply.
Package Included: 1*DC Adjustable DC Switching Power Supply
