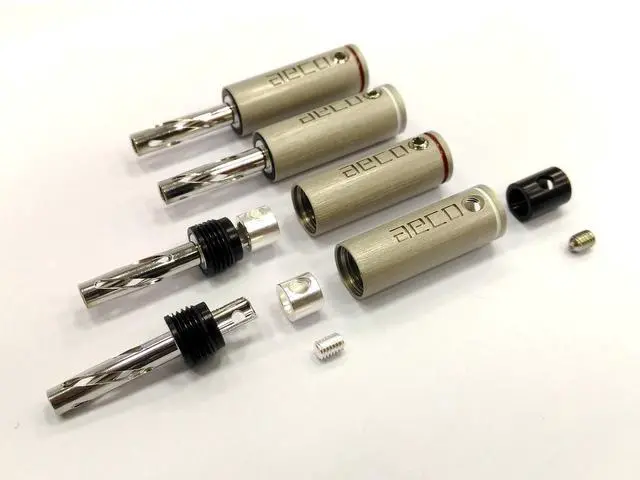

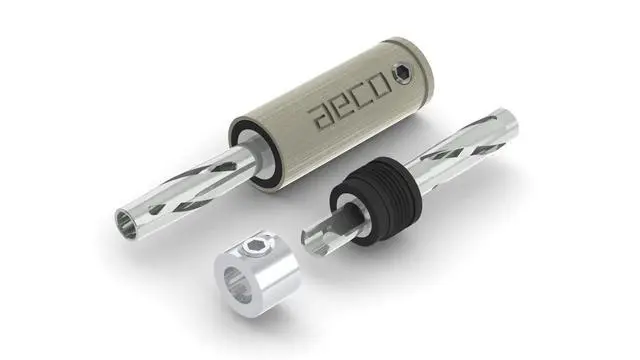

aeco Banana Plug ABP-1111R, 4pcs/1set, Rhodium Plating, Vacuum Bag

NOTE: This product is only suitable for 4.0 mm binding post. (Not for 4.1 mm)The first time when you put the banana plug and thebinding post together, it might be a little bit tight. Please insert with clockwise. The interface will adjust the shape into a perfect size basic on the binding post. screw for conductor (3/4 mm) (4 each) screw for cable (3/4 mm) (4 each)
Material:
Body: Tellurium Copper (#C14500 / copper contains over 99%)Head lock: POM
Ring: Brass
alloy (#C3604)Shell: Brass
alloy (#C3604)Screw for conductor: Brass
alloy (#C3604)Screw for cable:
IronFinished:
Body: Rhodium plating (no nickel base)
Head lock:
NoneRing: 120u" Silver plating (no nickel base)
Shell: Logo lathing / Hairline surface treatment /
Satin nickel platingScrew for conductor: 120u" Silver plating (no nickel base)
Screw for cable: Nickel plated.
Electrical Characteristics: Contact resistance < 0.3 mOhm (It was test by ABI-0601. )The test will shows different results depends on the different binding post.
Dimension: Biggest OD 09.0 mmCable hole with sleeve 04.5 mmCable hole without sleeve 06.5 mmTotal
Length 43.0 mmPacking: Vacuum
Bag(4Pcs/1Set)Recommend soldering temperature: Temperature Soldering Iron, please keep 400 degree within 8~10 second. Product production process comply with RoHS.
more info: www. aeco. tw
