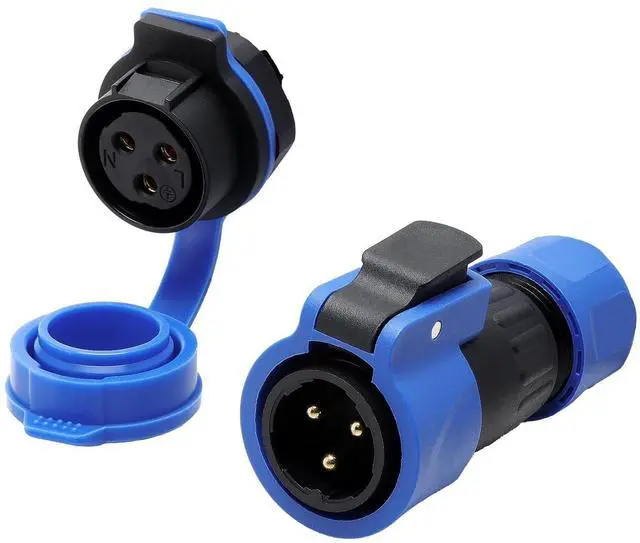

ZBLZGP FD20 3 Pin Industrial Connector, Solder-Free Screw Termination, Vibration-Proof, 1500V Tolerance, for New Energy Storage Device Wiring

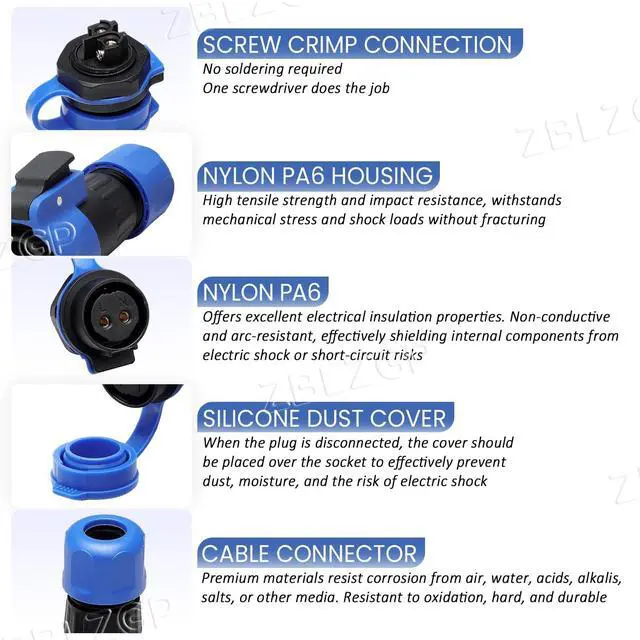

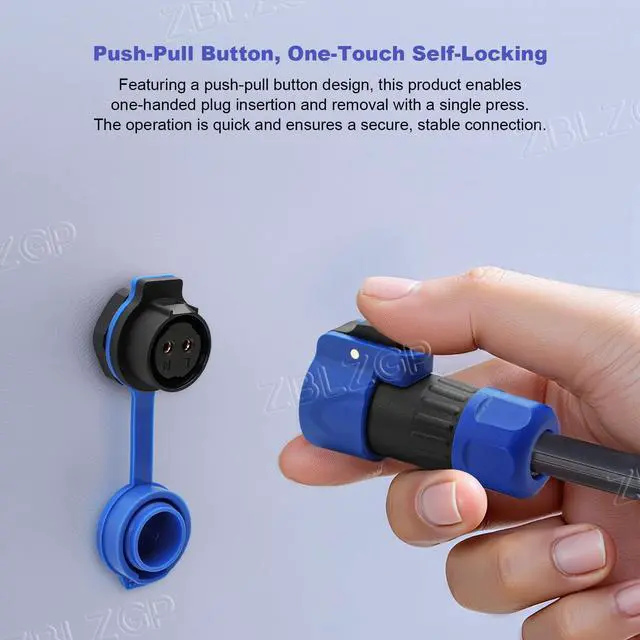

Solder-Free Screw Termination & Push-pull Button DesignSkip the soldering iron and complex skillssimply strip wires, insert, and tighten the screws to achieve a secure connection. This design slashes installation and maintenance time by up to 80%, making it ideal for batch wiring in production lines or on-site outdoor construction, even for non-professional users. ^^ IP68 Waterproof & Industrial-Grade DurabilityCrafted with high-temperature resistant PA66 housing and brass gold-plated contacts, the connector boasts IP68 protection to block rain, dust, and oil intrusion. It operates stably in temperatures ranging from -30 to 85, ensuring reliable performance in harsh industrial workshops and outdoor environments.

^^ Versatile

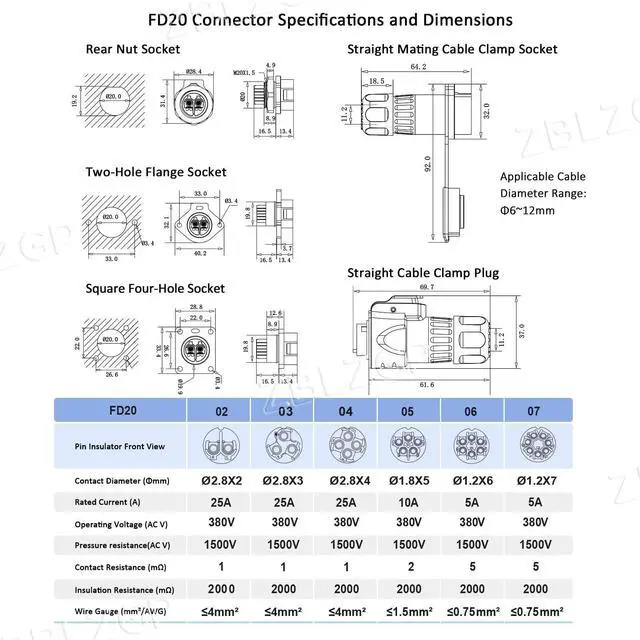

Specifications

for
FlexibilityApplicable wire outer diameter range: 6.0 ~ 11.5 mm. 3 PinRated
Current / Voltage: 25A/ 380V;
Contact Diameter: 2.8 mm*3;
Contact resistance: 1m;
Insulation resistance: 2000m;
Wire Gauge: 4mm/12AWG. ^^ Vibration-Resistant & VersatileScrew crimping structure prevents loosening from vibration/jolts. 3 mounting styles (rear nut/flange/square) fit diverse setups, supporting low-power signals (sensors) and medium-power supply (lighting). 1500V voltage resistance & industrial safety compliance ensure peace of mind. ^^ Wide Application Across IndustriesPerfect for industrial automation (sensor-controller connections), outdoor lighting (street lamp power links), automotive electronics (in-car navigation wiring), and new energy (RV solar panel transmission). It serves as a one-stop connection solution for diverse professional scenarios.
