Audio HAT Module for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/Pi Zero WH,WM8960 Hi-Fi Sound Card HAT Stereo CODEC, Play/Record

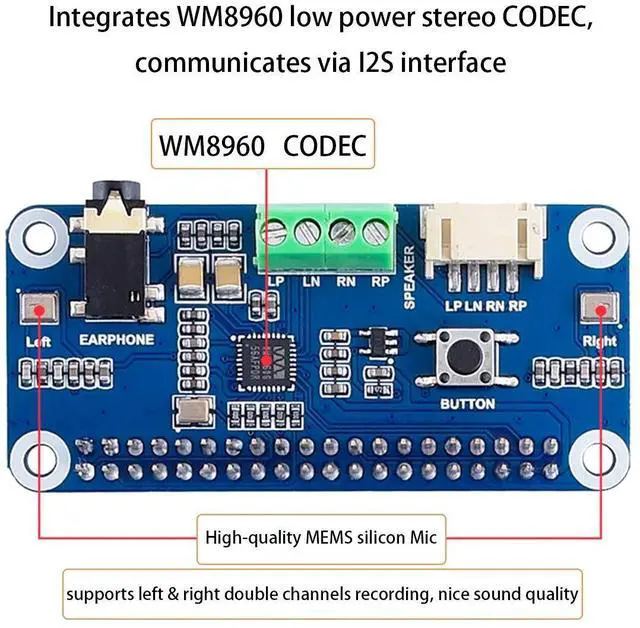

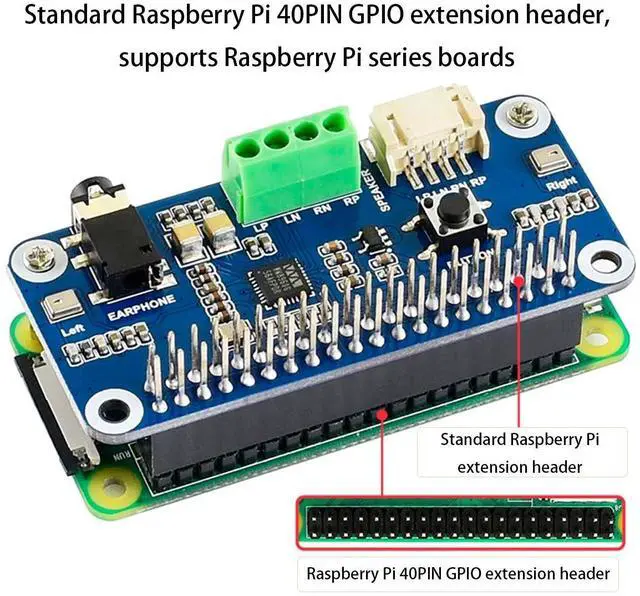

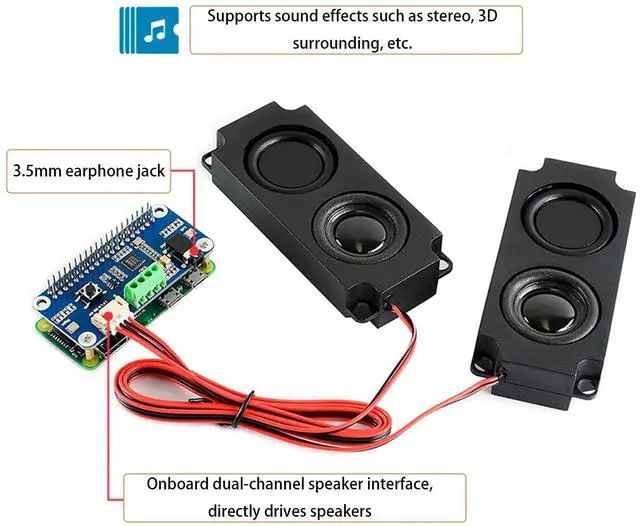

WM8960 Hi-Fi Sound Card HAT for Raspberry Pi, Stereo CODEC, Play/RecordOverviewThis is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music. FeaturesStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boardsIntegrates WM8960 low power stereo CODEC, communicates via I2S interfaceIntegrates dual high-quality MEMS silicon Mic, supports left/ right double channels recording, nice sound qualityOnboard standard 3.5 mm earphone jack, play music via external earphoneOnboard dual-channel speaker interface, directly drives speakersSupports sound effects such as stereo, 3D surrounding, etc.

Comes with development resources and manual (python demo code for playing / recording)SpecificationsCODEC: WM8960Power
supply: 5VLogic
voltage: 3.3VC
ontrol interface: I2CAudio
interface: I2SDAC
signal-noise ratio: 98dBADC
signal-noise ratio: 94dBEarphone
driver: 40mW

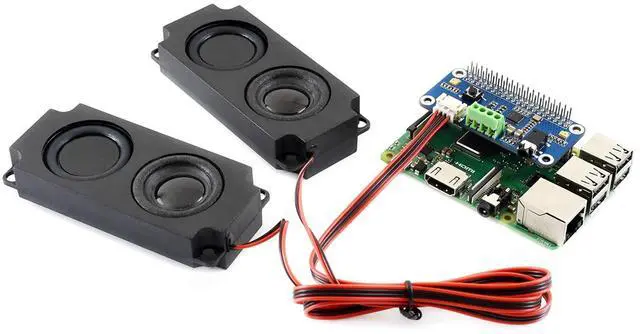

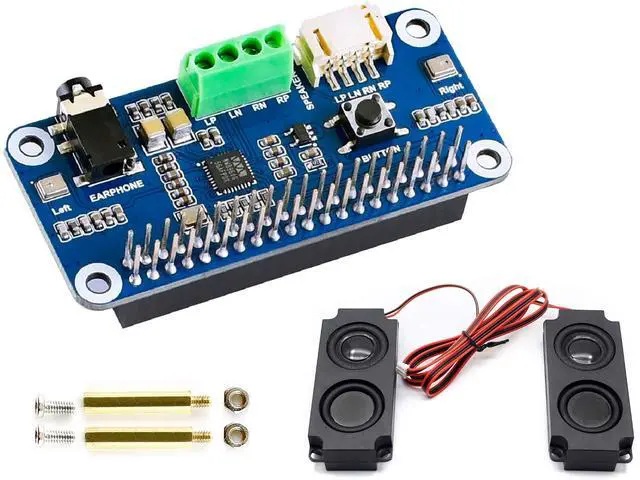

(16@ 3.3V )Speaker driver: 1W per channel (8 BTL) Package ContentWM8960 Audio HAT x18 5W Speaker x1RPi screws pack (2pcs) x1Note: Raspberry Pi in the photos is NOT included.
