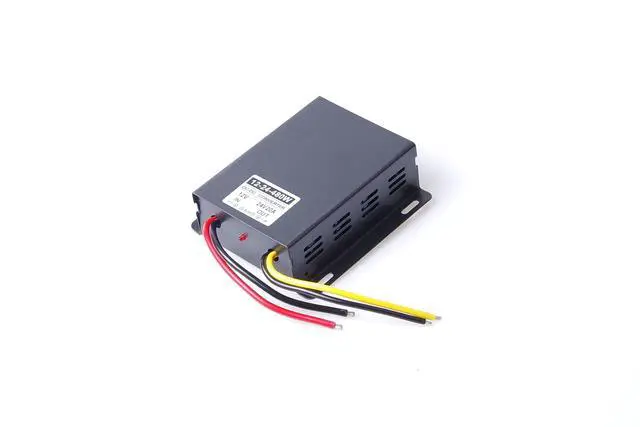

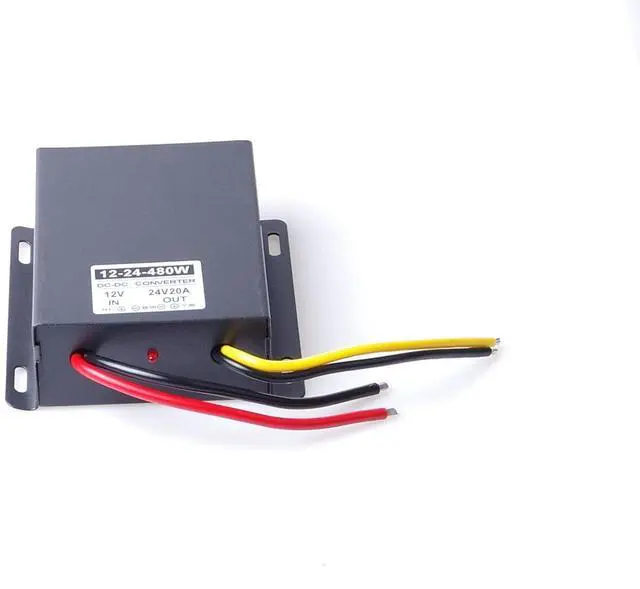

KNACRO DC Converter 12V (9V - 23V) Step Up to DC 24V 20A 480W Voltage Boost Converter Regulator Power Supply for Car Truck Vehicle
- Using iron shell, silicone package. With output short circuit protection, overcurrent protection, overheat protection.
- Input voltage: DC12V (9-23V). Output voltage: DC24V. Output current: 20A. Output power: 480W.
- Operating temperature: -40 ~ +85 . Installation cable length: 13-14cm.
- Wiring instructions:Input: red wire - input positive; black wire - input negative; Output: yellow wire - output positive; black wire - output negative;Do not connect wrong or short circuit when wiring.
- Scope of application: LED car display monitoring cameras, routers, switches, LED lights, security systems, printers, network equipment and other voltage parameters of the industrial equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Module nature: non-isolated BUCK.
Input voltage: DC 12V (9-23V).
Output voltage: DC 24V.
Output current: 20A.
Output power: 480W.
Power consumption: 25MA.
Ripple: 40MV.
Operating temperature: -40 ~ +85.
Installation cable length: 13-14cm.
Protection: overcurrent protection, overheating protection, short circuit protection.

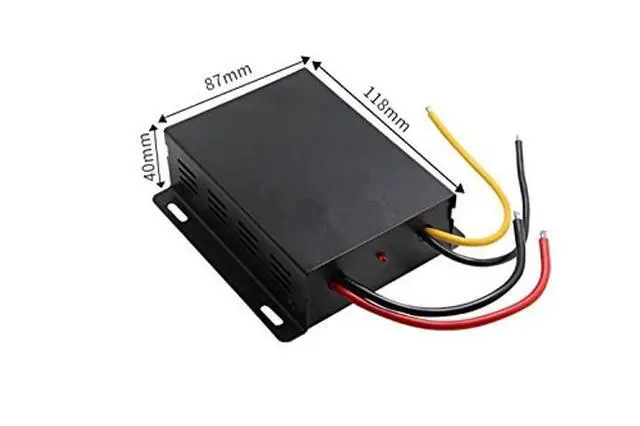

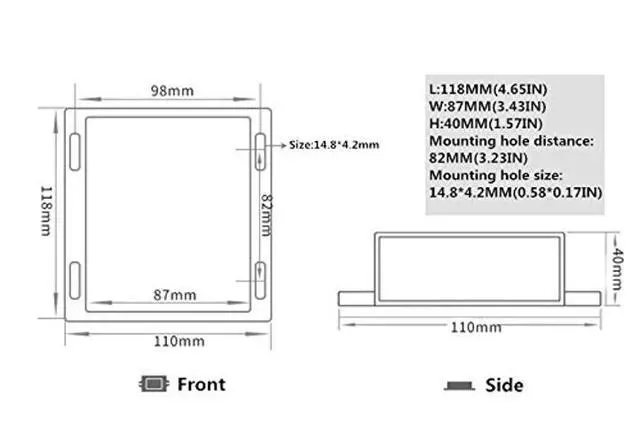

Size: 118 * 87 * 40mm / 4.65 * 7.36 * 5.51 in (L * W * H).
Waterproof rating: None.
Weight: 370g / 0.82 lb.

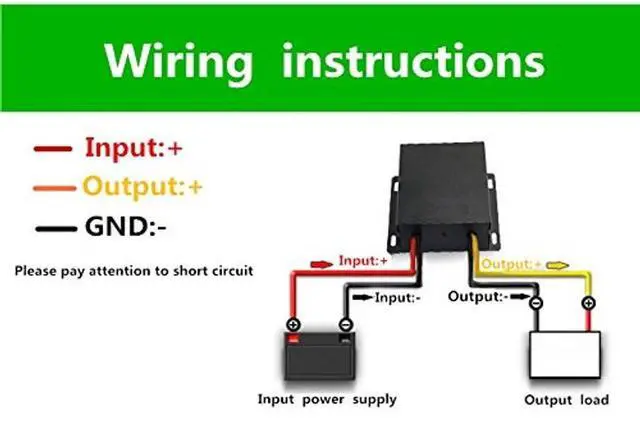

Wiring instructions:
Input: red wire - input positive; black wire - input negative;
Output: yellow wire - output positive; black wire - output negative; Do not connect wrong or short circuit when wiring.
Scope of application: LED car display monitoring cameras, routers, switches, LED lights, security systems, printers, network equipment and other voltage parameters of the industrial equipment.
Package Included: 1*24V 20A DC-DC Converter
Input voltage: DC 12V (9-23V).
Output voltage: DC 24V.
Output current: 20A.
Output power: 480W.
Power consumption: 25MA.
Ripple: 40MV.
Operating temperature: -40 ~ +85.
Installation cable length: 13-14cm.
Protection: overcurrent protection, overheating protection, short circuit protection.
Size: 118 * 87 * 40mm / 4.65 * 7.36 * 5.51 in (L * W * H).
Waterproof rating: None.
Weight: 370g / 0.82 lb.
Wiring instructions:
Input: red wire - input positive; black wire - input negative;
Output: yellow wire - output positive; black wire - output negative; Do not connect wrong or short circuit when wiring.
Scope of application: LED car display monitoring cameras, routers, switches, LED lights, security systems, printers, network equipment and other voltage parameters of the industrial equipment.
Package Included: 1*24V 20A DC-DC Converter
