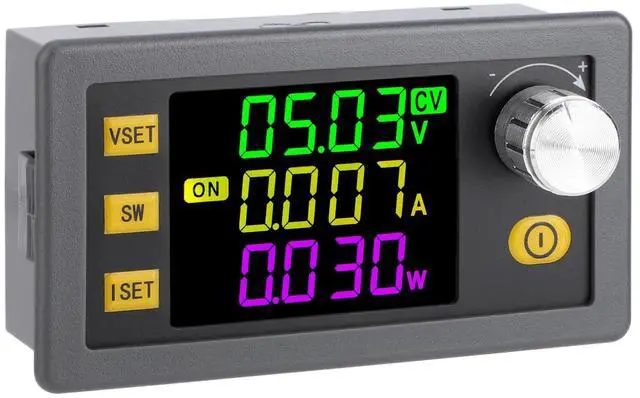

DROK Adjustable Voltage Regulator, 6v-36v to 0-36v 120W 6A Buck Boost Converter Wide Angle Color Screen LCD Display for Golf Cart, Solar Panel
- ParameterInput Voltage: DC 6-36V; Output Voltage: DC 0-36V; Output Current: 0-6A; Output Power: 120W (Can Reach to 150W with good heat dissipation); Voltage Resolution: 0.01V; Current Resolution: 0.001A; Conversion Efficiency: 88%.

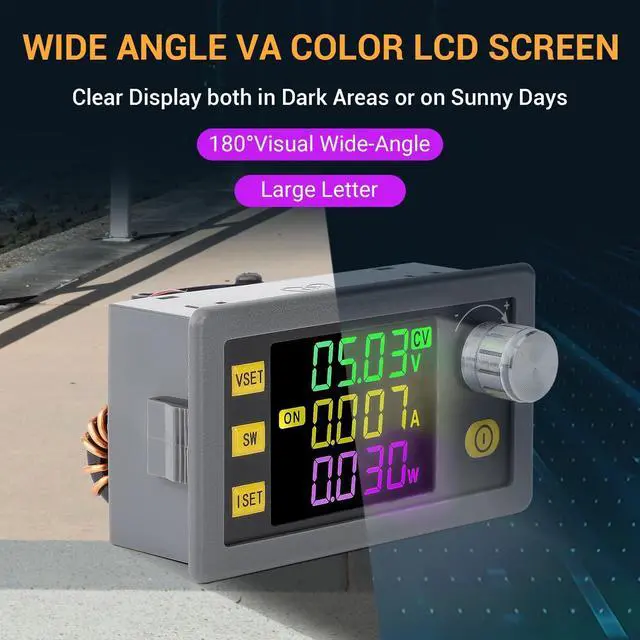

- LCD DisplayNew version wide angle big color screen LCD display make it more convenient and clearer to check each parameter.
- Reliable and SafeAnti-Backflow Protection; Low Voltage Protection; Over Voltage Protection; Over Current Protection; Over Power Protection; Over Temperature Protection; Over Time Protection; Over Capacity Protection; Over Energy Protection, with Buzzer Alarm.

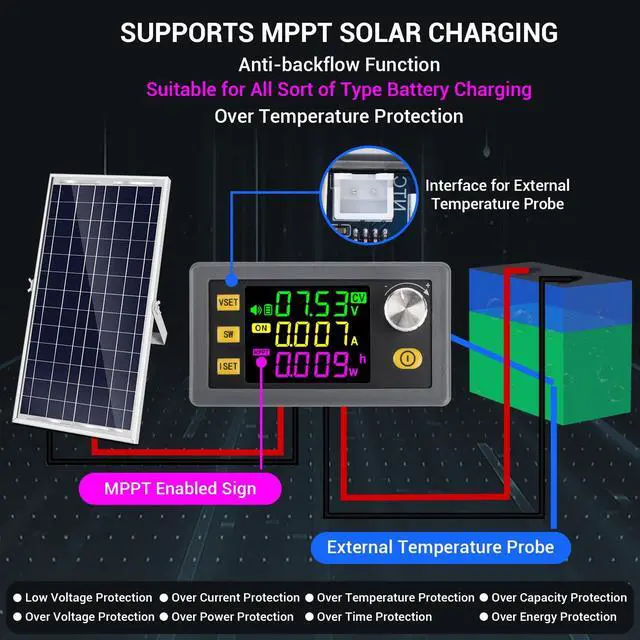

- Wide Application A compact and powerful, on the go adjustable buck boost converter. Compatible with solar panel, all type of batteries such as Lithium Battery and Lead Acid Battery.
- Note: Please follow the instructions for wiring. Reversing the positive and negative terminals of the battery will damage the device.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameters: Input
Voltage Range: DC 6-36VOutput
Voltage Range: DC 0-36VOutput
Current: 0.000A - 6.000AO utput
Power: 120WInput
Current Limit: Max 6AVoltage
Resolution: 0.01VC urrent
Resolution: 0.001AV oltage
Precision: 0.5 %+1 digitCurrent
Precision: 0.5
%+ 3 digitCapacity:
0-9999AHEnergy: 0-4200KWH
Time: 0-100HoursProtectionReverse
Connect Protection: YesBackflow
Protection: YesLow
Voltage Protection: Default 5.5V ( 5.5 -36V Adjustable)Over
Voltage Protection: Default 38V (0-38V Adjustable)Over
Current Protection: Default 6.2A (0- 6.2A Adjustable)Over
Power Protection: Default 125W (0-150W Adjustable)Over
Temperature Protection: Default 95/203 (0-110/230
Adjustable)Over Time Protection: Default OFF (0-100H Adjustable)Over
Capacity Protection: Default OFF (0-9999AH
Adjustable)Over Energy Protection: Default OFF (0-4200KWH Adjustable)The item has constant current function, can be used to charge the rechargeable battery within 0.6V ~36V.
Package Includes: Pack of 1 DC Buck Boost Converter
Voltage Range: DC 6-36VOutput
Voltage Range: DC 0-36VOutput
Current: 0.000A - 6.000AO utput
Power: 120WInput
Current Limit: Max 6AVoltage
Resolution: 0.01VC urrent
Resolution: 0.001AV oltage
Precision: 0.5 %+1 digitCurrent
Precision: 0.5
%+ 3 digitCapacity:
0-9999AHEnergy: 0-4200KWH
Time: 0-100HoursProtectionReverse
Connect Protection: YesBackflow
Protection: YesLow
Voltage Protection: Default 5.5V ( 5.5 -36V Adjustable)Over
Voltage Protection: Default 38V (0-38V Adjustable)Over
Current Protection: Default 6.2A (0- 6.2A Adjustable)Over
Power Protection: Default 125W (0-150W Adjustable)Over
Temperature Protection: Default 95/203 (0-110/230
Adjustable)Over Time Protection: Default OFF (0-100H Adjustable)Over
Capacity Protection: Default OFF (0-9999AH
Adjustable)Over Energy Protection: Default OFF (0-4200KWH Adjustable)The item has constant current function, can be used to charge the rechargeable battery within 0.6V ~36V.
Package Includes: Pack of 1 DC Buck Boost Converter
