YIOVVOM Panel Mounting Waterproof RJ45 Coupler, cat 6 Splice Outdoor ethernet Connector, Female to Female, Combo with Cap Network Connectors Cat5/5e/6 8P8C Connector Waterproof Cover (6 Pack, Black)
- FEMALE CONNECTOR: The Shielded Industrial Panel Mount is a Female/Female Couple. Provides feed-through Cat5/5e/6 Ethernet connectivity for data and PoE in industrial environments.
- No Signal Attenuation: Both are female plugs. The cable is pushed in only on both sides, no need to punch holes, and use the same connector on both sides. Due to the plug and socket do not have to break or interrupt any of the original wiring structures therefore there is no signal attenuation.
- Miniaturization and Easy installation: It is miniaturization, just plug the standard crystal head directly for quick installation without soldering and installation tools.

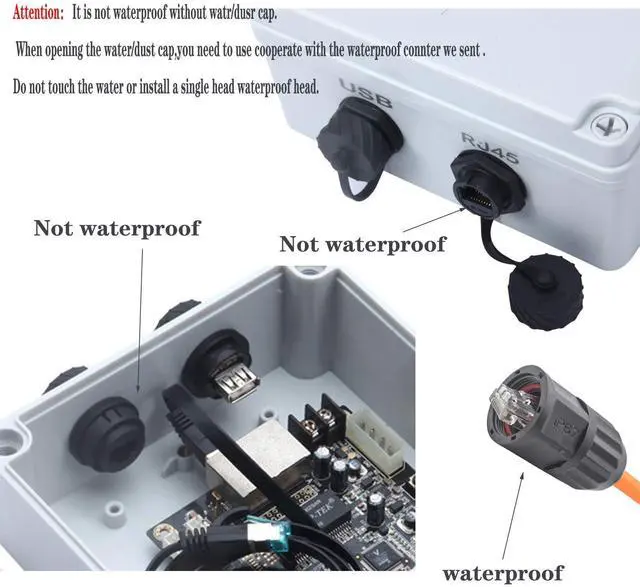

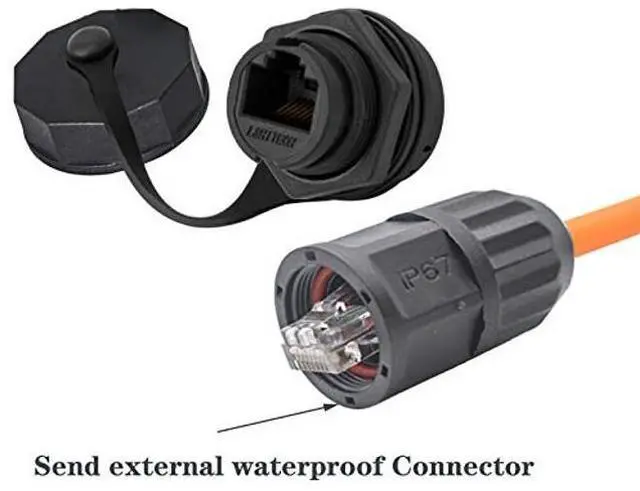

- IP67 Water Protection: Attached cap for RJ45 panel mount (bulk-head) jack protects connector when not in use. It is not waterproof Without water/dust cap.

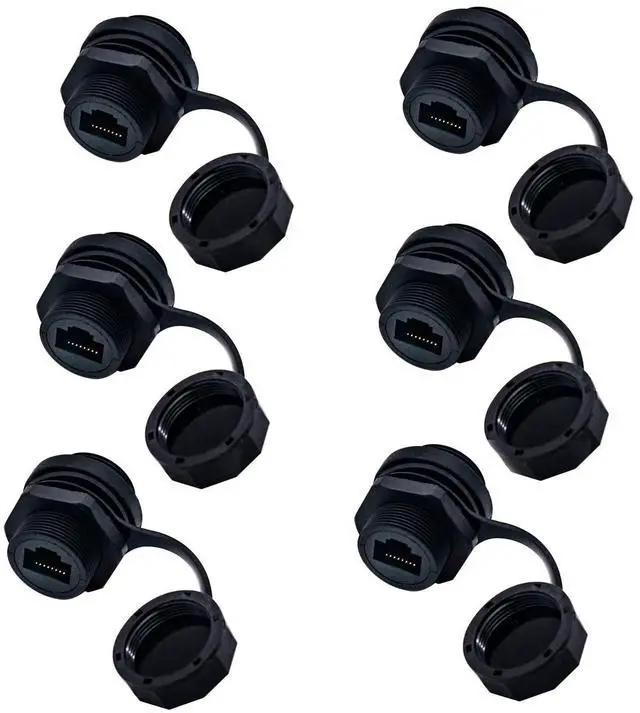

- Installation hole: 21mm .Package: 6 x RJ45 Female Connector + 6 PCS Waterproof Connector.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

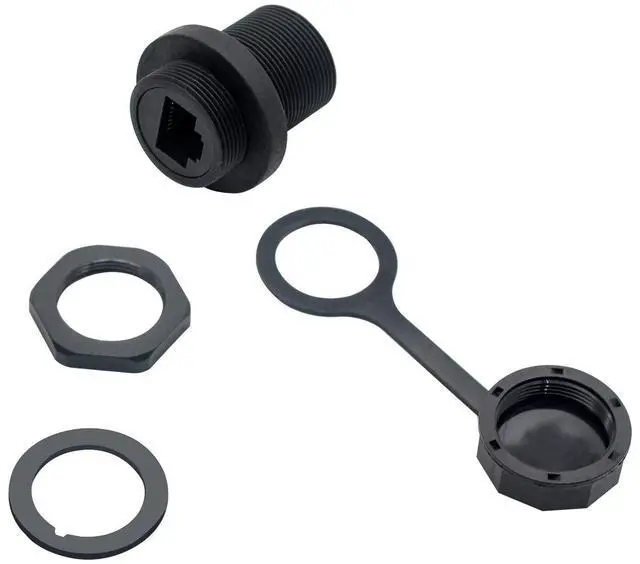

Product DescriptionProduct FeaturesThe cat 6 RJ45 shielded industrial panel mount is a female/female couple with 50 micron gold plated contact pins that are made to last on the panel mount bulkhead. Easy to install front panel mount. Solid connections system can provide the solutions for harsh environments like factories or outdoor areas where they need to be run through wet locations. It is a dual RJ-45 coupling connector for panel mounting. It can accommodate any standard RJ45 plug and can be mounted on the housing. The shielded industrial panel mount bulkhead includes a water/dust cap that meets IP67 Water Protection.
The bulkhead comes with two o-rings to ensure water cant get in.
Color: BlackCNBTR
Material: Plastic +
MetalConnect Port: RJ45Cable
Core:
8Pins: 8P8CWorking
Temperature: -40C-105CTotal

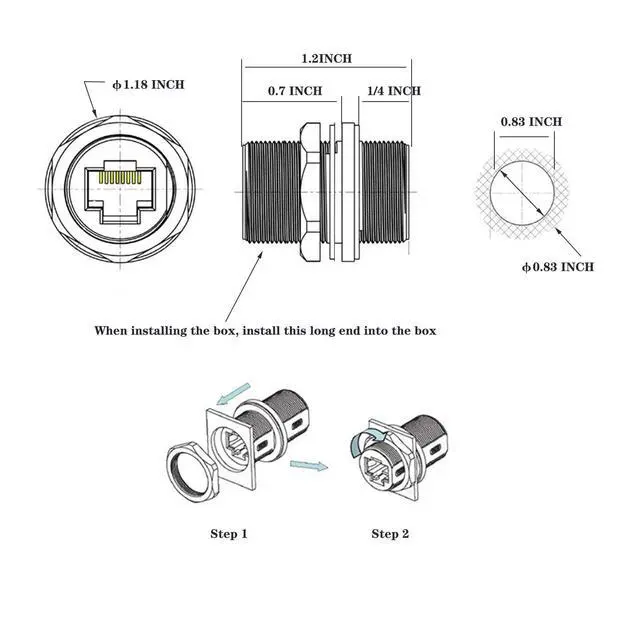

Length: approx. 30mm/ 1.2 inchMounting panel thickness: 1.5 ~10mm (not included)
Hole Size: 21mmPackage
Included: 5 x RJ45 Female Connector + 5 PCS Waterproof Connector
The bulkhead comes with two o-rings to ensure water cant get in.
Specifications
:Color: BlackCNBTR
Material: Plastic +
MetalConnect Port: RJ45Cable
Core:
8Pins: 8P8CWorking
Temperature: -40C-105CTotal
Length: approx. 30mm/ 1.2 inchMounting panel thickness: 1.5 ~10mm (not included)
Hole Size: 21mmPackage
Included: 5 x RJ45 Female Connector + 5 PCS Waterproof Connector
