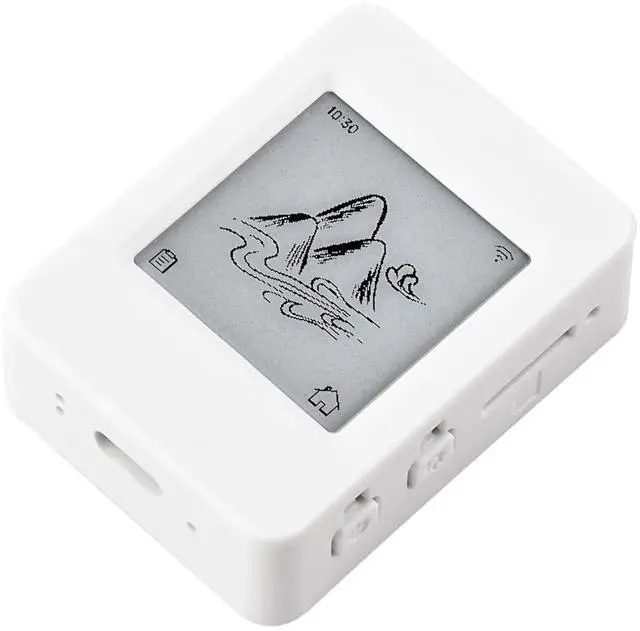

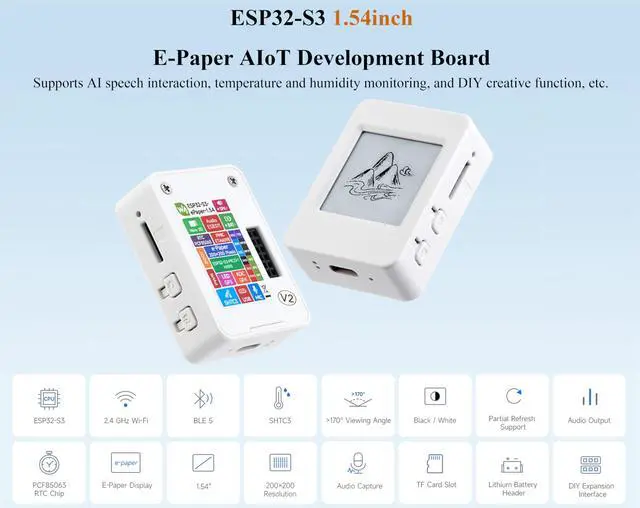

ESP32-S3 1.54inch e-Paper AIoT Development Board, Supports AI Speech Interaction, Temperature and Humidity Monitoring, DIY, etc. 200 x 200, Black/White, Wi-Fi and BLE Dual-Mode Communication

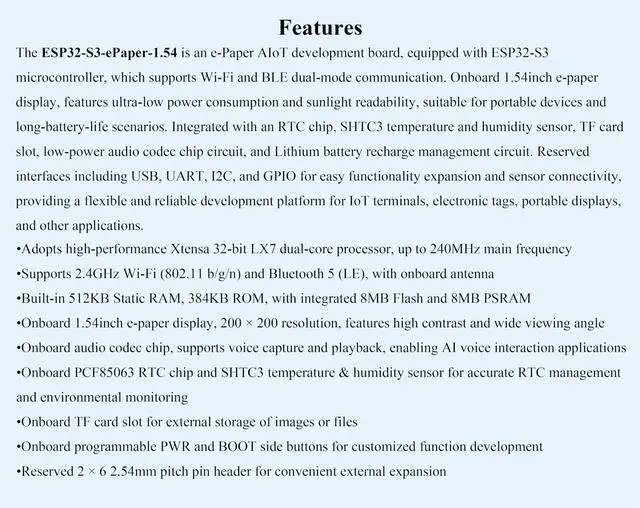

The ESP32-S3-ePaper- 1.54 is an e-Paper AIoT development board, equipped with ESP32-S3 microcontroller, adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Suitable for Voice Interaction and e-Reader, etc ^^ Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB Static RAM, 384KB ROM, with integrated 8MB Flash and 8MB PS-RAM. ^^ Onboard 1.54 inch e-paper display, 200 200 resolution, features high contrast and wide viewing angle. Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications.

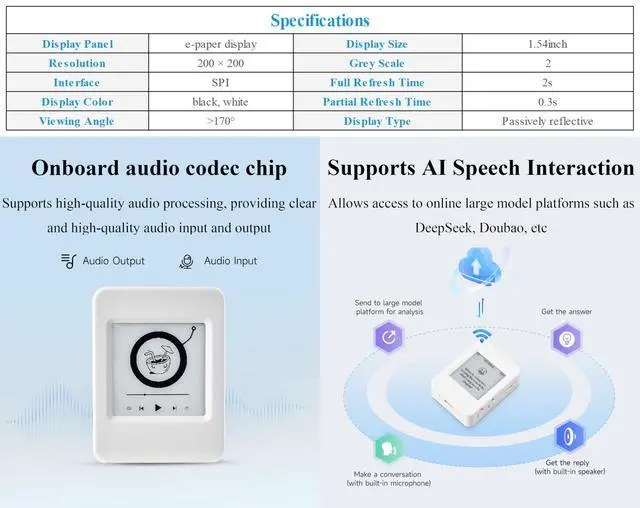

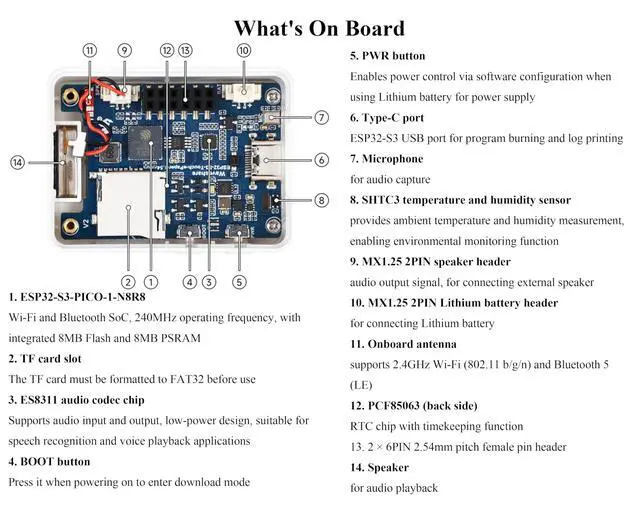

Supports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, Doubao, etc. ^^ Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring. Onboard TF card slot for external storage of images or files. Onboard programmable PWR and BOOT side buttons for customized function development. Reserved 2 6 2.54 mm pitch pin header for convenient external expansion. ^^ Supports ESP-IDF, Ardui
IDE: Comprehensive SDK, dev resources, and tutorials to help you easily get started, please
check: n9. cl/tseakv
