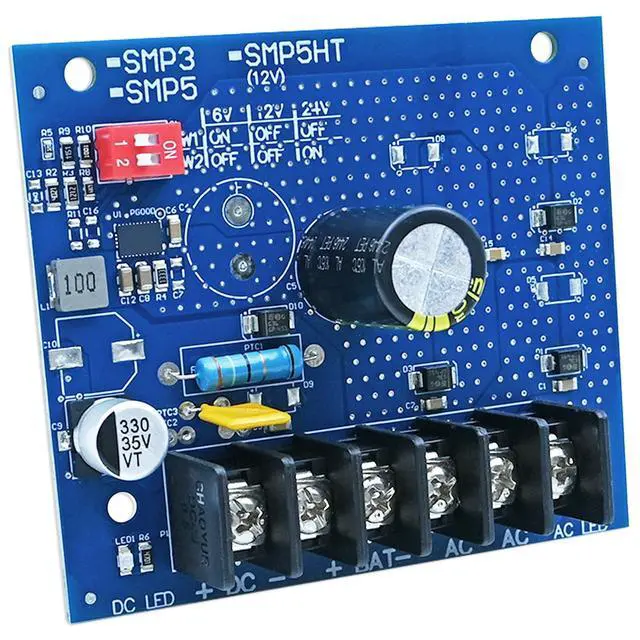

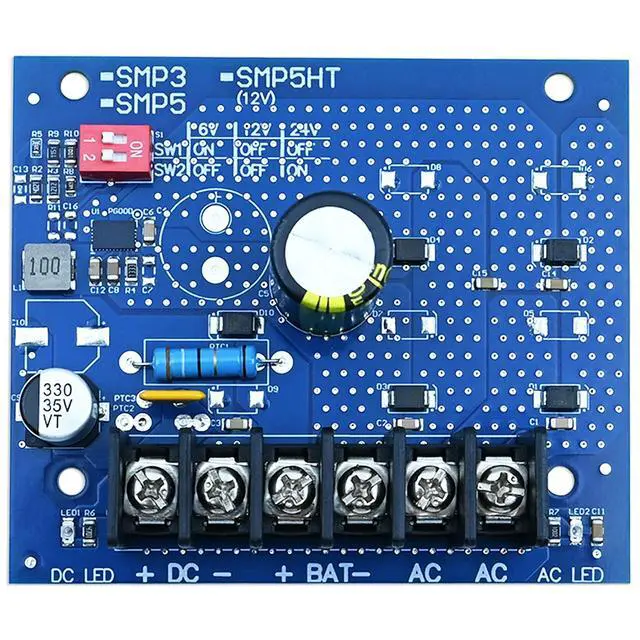

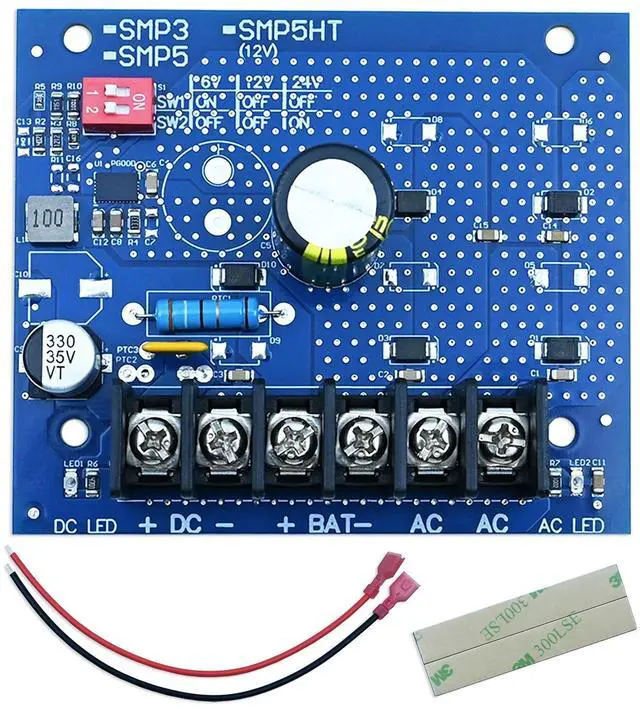

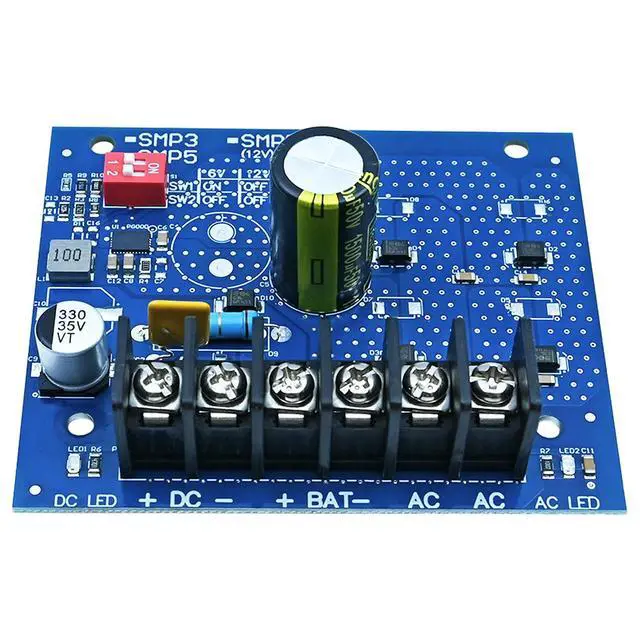

SMP3 Power Supply Charger, Compatible with Altronix SMP3 6 12 OR 24VDC @ 2.5 AMP, A Security Power Solution with Multi-Voltage Output and Battery Backup
- Compatible with Altronix Systems: This power supply (model SMP3) can convert low-voltage AC from 16VAC to 28VAC into continuous power supply, including 24vdc power supply, 6VDC, and 12VDC, all delivering 2.5A current. As a reliable 24 volt power supply, it meets the power needs of devices in multiple scenarios such as security and access control
- Compatible with Altronix Battery Solutions: It features a sealed lead-acid or gel-type battery backup function, with a maximum charging current of 350mA. When AC is cut off, it supports automatic switching to battery powerthis ensures the 24v power supply remains stable and the system operates uninterrupted, making it a dependable 24v dc power supply for critical applications
- Installation Specifications: It offers two installation options: Snap Track and DIN Rail (some require additional ordering). Built-in electronic voltage regulation and filtering circuits guarantee stable output, which is essential for maintaining consistent performan
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SMP3 Power Supply/Charger Versatile Low-Voltage Power Conversion & Battery Backup WIDE VOLTAGE RANGE ^^ BATTERY CHARGING CAPABILITY ^^ COMPACT & DURABLEWHY CHOOSE OUR SMP3 POWER SUPPLY/CHARGER? FLEXIBLE POWER CONVERSIONConverts 16VAC28VAC input to 6VDC/12VDC/24VDC ( 2.5A continuous output)Switch-selectable output voltage (factory-set to 12VDC)Works with multiple transformer types (16VAC/40VA, 28VAC/100VA, etc. see selection table) RELIABLE BATTERY BACKUPCharges sealed lead-acid or gel-type batteries (max 550mA charge current) Automatically switches to battery power during AC loss (for security/CO systems needing backup) EASY INSTALLATION & MONITORINGLED diagnostics (DC/AC status: green = normal AC; red = DC/backup mode)Terminal labeling (clear function guides: AC input, DC output, battery connections)Compact design ( 3.3 x 3.5 x 2.2 in) + mounting options (enclosure included; Din Rail/Bin Rail available) INDUSTRIAL-GRADE RELIABILITYFiltered & electronically regulated output (stable power delivery) Overcharge protection (prevents battery damage) Extremely compact layout (fits tight spaces) COMPATIBILITYWorks with systems requiring 6VDC/12VDC/24VDC power (security, CO detectors, etc. )Supports transformers with higher power (16VAC/40VA) as long as input voltage is 28VAC/45VDC EXPERT SUPPORT & SAFETYPre-tested performance (each unit built for durability)
Safety caution: Professional installation recommended (no user-serviceable parts)
Safety caution: Professional installation recommended (no user-serviceable parts)
