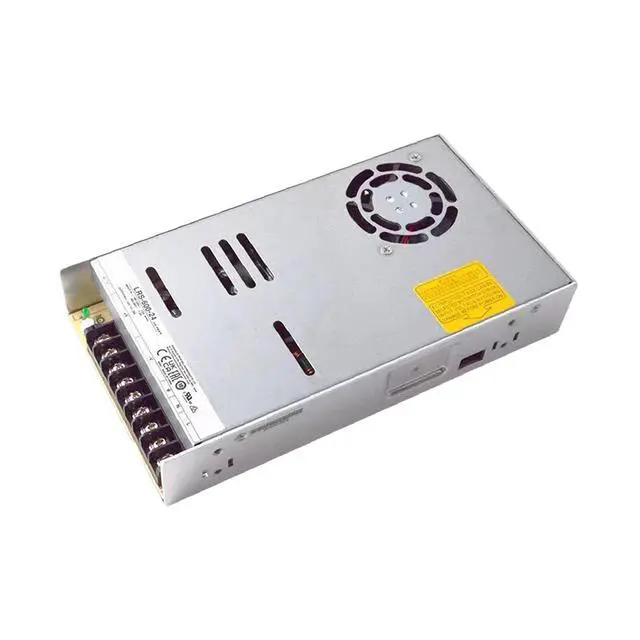

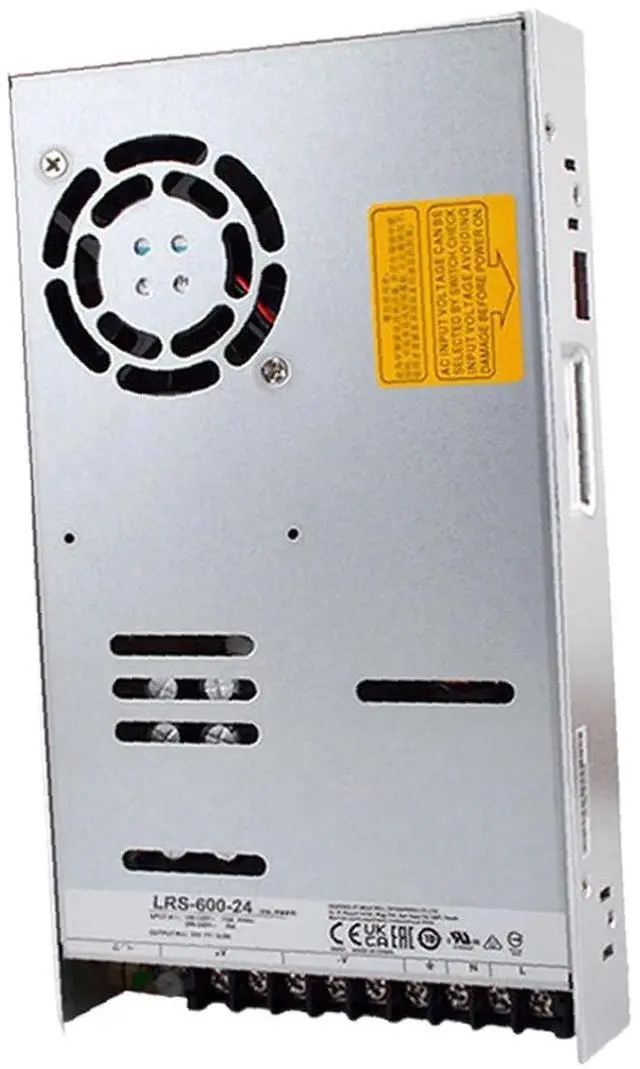

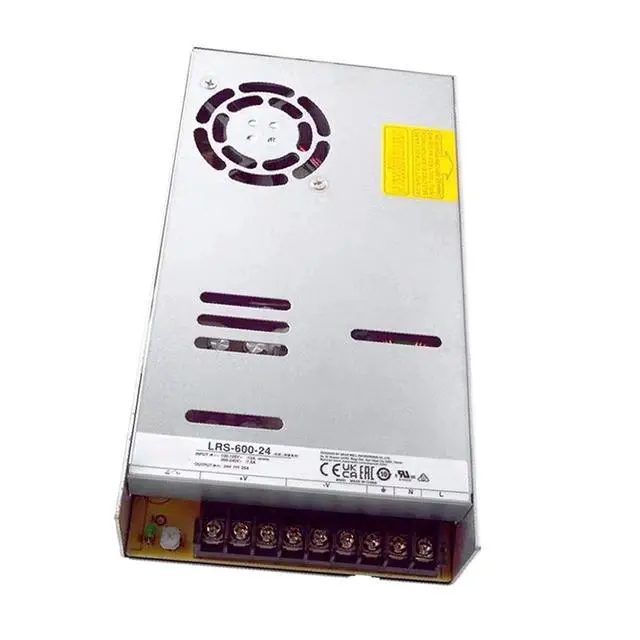

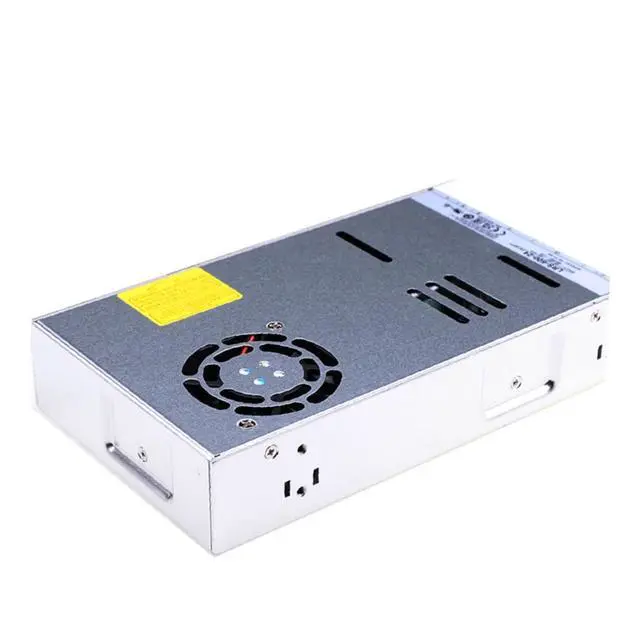

LRS-600-24 24V 25A 600W Industrial Switching Power Supply for Automation/Telecom/LED Systems
- High-Efficiency 24VDC Output: Delivers stable 24V voltage with 25A current capacity (600W total power) and 91% conversion efficiency, optimized for industrial equipment requiring reliable DC power supply with minimal energy loss.
- Wide Input Voltage Range: Supports 90-132VAC/180-264VAC (switch-selectable) and 255-370VDC input, compatible with global power standards and renewable energy systems for flexible installation scenarios.
- Robust Protection System: Features automatic overload protection (105-150% power range), over-voltage cutoff, and thermal shutdown with auto-recovery function, ensuring equipment safety in demanding environments.
- Industrial-Grade Durability: Operates in -20C to +65C temperature range with 20-90% humidity tolerance (non-condensing), designed for 24/7 operation in manufacturing plants, telecom stations, and outdoor applications.
- Compact & Safe Design: Measures 21511550mm (WHD) with low leakage current (<2mA) and built-in EMI filter, meeting industrial
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The LRS-600-24 industrial switching power supply provides 24VDC/25A output (600W max) with 91% high efficiency, making it ideal for powering automation systems, LED arrays, and telecom infrastructure. This unit accepts wide-range AC input (90-264VAC via voltage selector switch) and DC input (255-370VDC), supporting global power compatibility.
Advanced circuit protection includes: 1) Smart overload protection maintaining constant current output (105-150% capacity) for 3 seconds before safe shutdown 2) Automatic recovery after fault conditions 3) Multi-stage over-voltage protection 4) Thermal shutdown at 85C5C.
Technical specifications: Input current 7.5A @230VAC (12A@115VAC), inrush current 60A@230VAC (35A@115VAC), operating altitude 2000m. The IP20-rated metal housing (21511550mm) features screw terminal connections and convection cooling design. Certified with CE/EN62368 safety standards, it's suitable for powering PLC systems, CNC machines, security devices, and broadcast equipment requiring stable DC power. Includes short-circuit protection, output voltage adjustment (10%), and power good signal. 3-year warranty supported by industrial-grade components rated for 100, 000+ hours MTBF.
Advanced circuit protection includes: 1) Smart overload protection maintaining constant current output (105-150% capacity) for 3 seconds before safe shutdown 2) Automatic recovery after fault conditions 3) Multi-stage over-voltage protection 4) Thermal shutdown at 85C5C.
Technical specifications: Input current 7.5A @230VAC (12A@115VAC), inrush current 60A@230VAC (35A@115VAC), operating altitude 2000m. The IP20-rated metal housing (21511550mm) features screw terminal connections and convection cooling design. Certified with CE/EN62368 safety standards, it's suitable for powering PLC systems, CNC machines, security devices, and broadcast equipment requiring stable DC power. Includes short-circuit protection, output voltage adjustment (10%), and power good signal. 3-year warranty supported by industrial-grade components rated for 100, 000+ hours MTBF.
