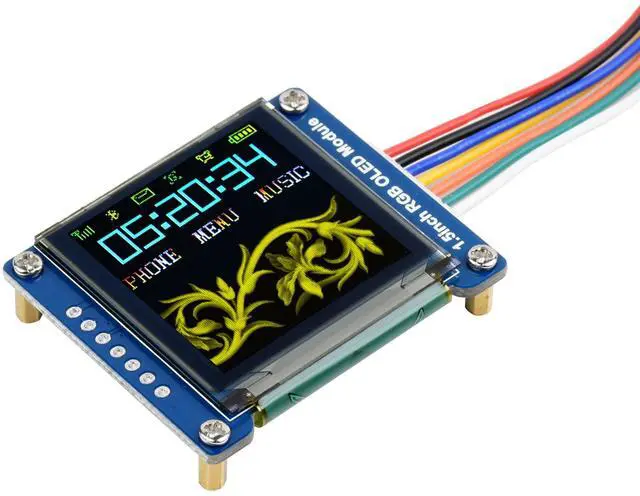

Main image of 1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) 1351 Driver, SPI Interface, Compatible with Arduino Raspberry Pi Ardui Jetson Nano STM32,etc.

Alt view image 2 of 5 - 1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) 1351 Driver, SPI Interface, Compatible with Arduino Raspberry Pi Ardui Jetson Nano STM32,etc.

Alt view image 3 of 5 - 1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) 1351 Driver, SPI Interface, Compatible with Arduino Raspberry Pi Ardui Jetson Nano STM32,etc.

Alt view image 4 of 5 - 1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) 1351 Driver, SPI Interface, Compatible with Arduino Raspberry Pi Ardui Jetson Nano STM32,etc.

Alt view image 5 of 5 - 1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) 1351 Driver, SPI Interface, Compatible with Arduino Raspberry Pi Ardui Jetson Nano STM32,etc.

Shop All GSM Outdoors Products | Visit DuronTechnologies Store

1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) 1351 Driver, SPI Interface, Compatible with Arduino Raspberry Pi Ardui Jetson Nano STM32,etc.

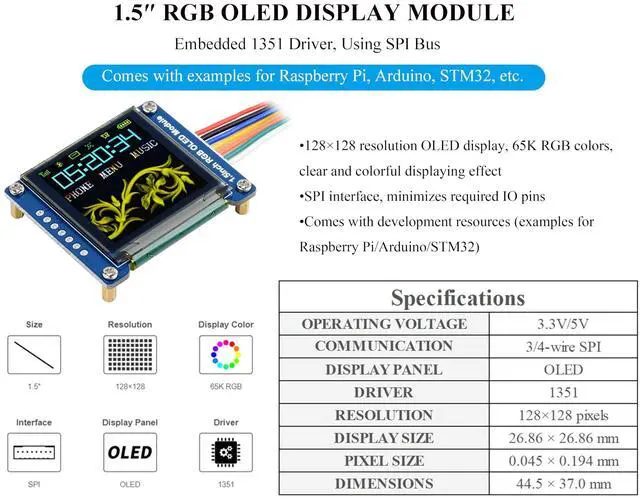

1.5inch RGB OLED Display Module, 128x128 Resolution, 65K RGB Colors, clear and colorful displaying effect.

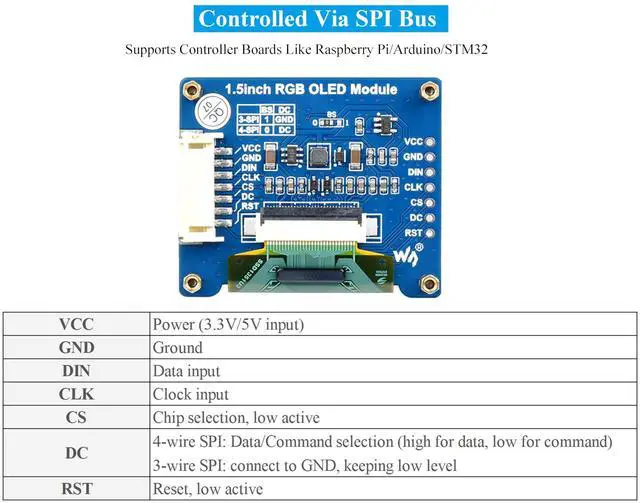

SPI Interface, minimizes required IO pins. (Note: This module only has SPI interface, please pay attention when using it. )

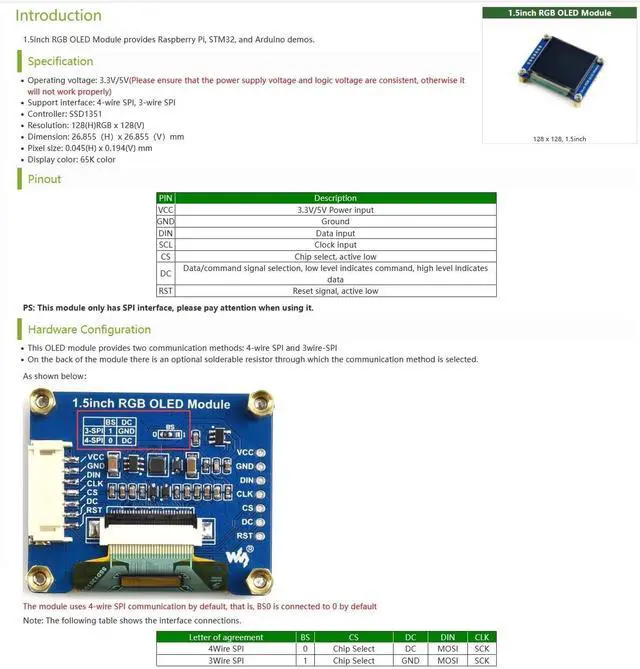

This OLED module provides two communication methods: 4-wire SPI and 3wire-SPI. On the back of the module there is an optional solderable resistor through which the communication method is selected.
1351 Driver. 3.3V/5V Operating voltage. (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly). Dimension: 26.855Hx 26.855Vmm
Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3TriWqs

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

1.5 inch RGB OLED Display Module, 128x128 Resolution, 65K RGB Colors, clear and colorful displaying effect. ^^ SPI Interface, minimizes required IO pins.
(Note: This module only has SPI interface, please pay attention when using it. ) ^^ This OLED module provides two communication methods: 4-wire SPI and 3wire-SPI. On the back of the module there is an optional solderable resistor through which the communication method is selected. ^^ 1351 Driver. 3.3V /5V Operating voltage. (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly).
Dimension: 26.855H x 26.855V mm ^^ Comes with relevant resources and tutorials to help you get started quickly: bit. ly/3TriWqs
