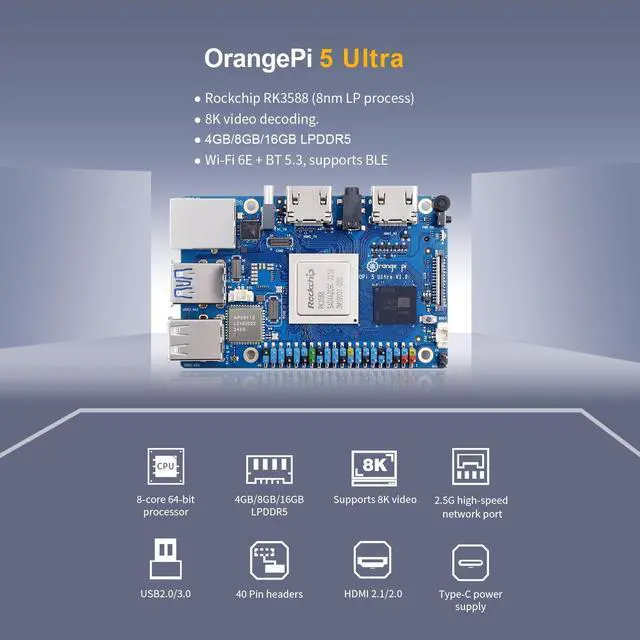

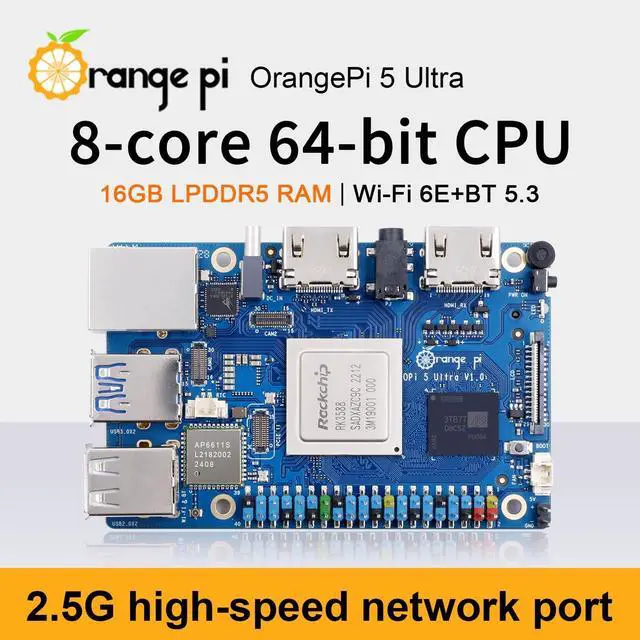

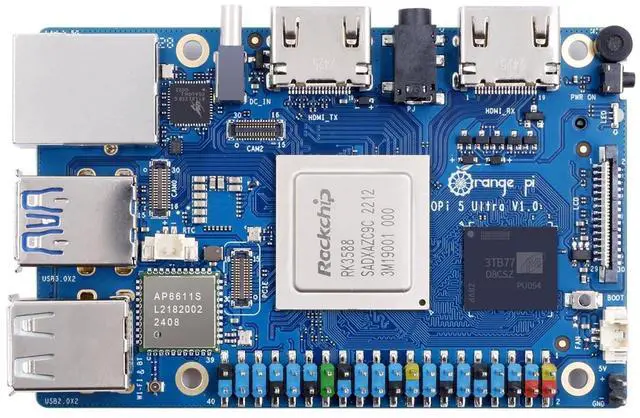

    Orange Pi 5 Ultra 8GB/16GB LPDDR5 Rockchip RK3588 8-Core 64-Bit Single Board Computer, Wi-Fi 6E/Bluetooth 5.3/BLE, Development Board Run Linux/Ubuntu/Debian/Android (8GB) (16GB)

    Be the first to review this product...
    • [LPDDR 5 Memorry Standard]: Orange Pi 5 Ultra is equipped with a Rockchip RK3588 8-core 64-bit processor. It offers 4GB, 8GB, or 16GB of LPDDR5 RAM and supports an eMMC socket for connecting 32GB, 64GB, or 256GB eMMC module.
    • [Efficient Artificial Intelligence NPU]: Equipped with a built-in 6TOPS NPU, it supports INT4/INT8/INT16 hybrid computing, making it ideal for developing AI applications. Whether it's image recognition, natural language processing, or machine learning, this board provides robust support.
    • [Powerful Wireless Communication]: Supporting Wi-Fi 6E and Bluetooth 5.3, it offers faster wireless transmission speeds and more stable connectivity. Additionally, it supports low energy Bluetooth (BLE), meeting various wireless communication needs.
    • [Rich Display Interfaces]: With dual HDMI 2.1 ports supporting up to 8K@60FPS resolution and a 4-Lane MIPI DSI interface, its suitable for high-end applications such as VR cameras and deep vision. Dual 4-La
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Hardware ParametersMaster Chip: Rockchip RK3588 (8nm LP process)
    CPU: 8-core 64-bit processor 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor Cortex-A76 at 2.4GH z, Cortex-A55
    at 1.8GH zGPU: Integrated ARM Mali-G610 Built-in 3D GPU Fully compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2.
    NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
    PMU:
    RK806-1RAM: LPDDR5
    496PIN4GB8GB16GB optionalMemory: eMMC flash socket eMMC
    IC Note: Either eMMC flash socket or eMMC IC, support: 32GB, 64GB, 128GB, 256GB optional
    QSPI nor flash: 16MB MicroSD card slot M.
    2 M-KEY slot: support
    NVMe SSD (PCIe 3.0 4Lane)USB: 2USB
    3.02USB 2.0V ideo: 1* HDMI 2.1 out up to 8k@60FPS 1* HDMI 2.0 in up to 4k@60FPS 1* MIPI DSI TX 4
    LaneCamera: 2* MIPI CSI 4 Lane 1* MIPI D-PHY RX 4 LaneAudioCODECES8388 1* Audio 3.5 mm jack with mic 1MIC In 1HDMI 2.1 eARC
    Ethernet: 1PCIe 2.5G LANRTL8125BG )Wi-Fi+BT
    Module: Onboard Wi-Fi 6E+BT 5.3 /BLE module: AP6611Wi-Fi
    interface: SDIO
    3.0BT interface: UART/PCM
    Expansion Port: Dual-row
    pin: 2.54 mm 40PinSupports DC 5V and 3.3V power outputConfigurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
    Button: 1 MaskRom key, 1 On/Off keyPower
    Source: Supports Type-C power supply, 5V
    @ 5ALED: RGB LED side
    IlluminationFAN: 5V
    2PIN 1.25 mm socketRTC: 3V
    2PIN 1.25 mm socketDebugging: Debug serial UART included in 40PIN expansion portSupported
    OS: Orangepi OS (Droid) Orangepi OS (Arch) Orangepi OS (OH)
    UbuntuDebianAndroid13PCB: 89mm57mm*
    1.6 mmWeight: 60.5 g
