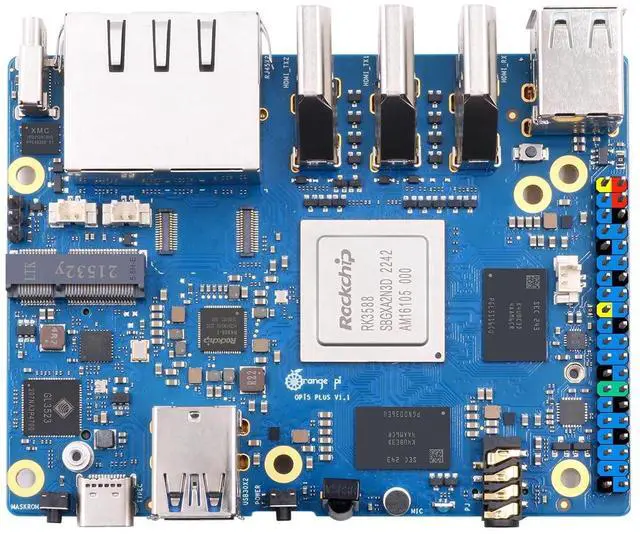

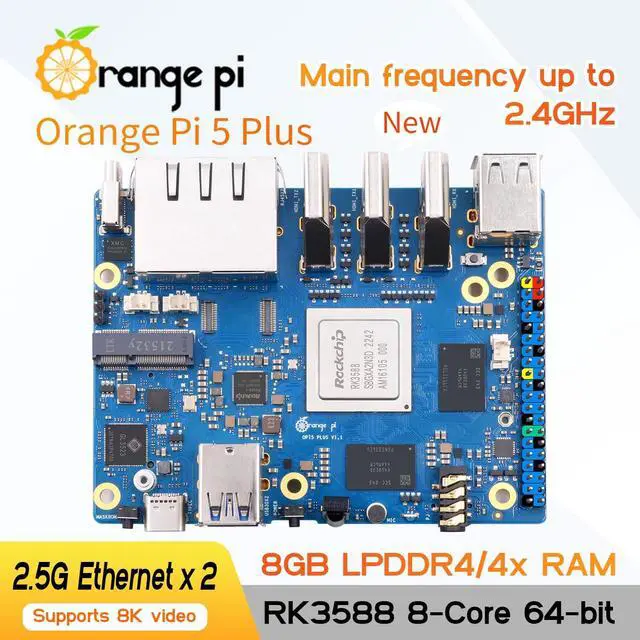

Orange Pi 5 Plus 8GB RK3588 8 Core 64 Bit Single Board Computer, 2.4GHz Frequency 8K Video Decoding Open Source Development Board Run Orange Pi OS, Android, Debian, Ubuntu
- Orange Pi 5 Plus 8GB adopts a Rockchip RK3588 8-core 64 bit processor, specifically a quadcore A76+quadcore A55, designed using an 8nm process, with a main frequency of up to 2.4GHz. It integrates ARM Mali-G610, has a built-in 3D GPU, and is compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2; There is 4GB/8GB/16GB LPDDR4/4x memory and eMMC flash socket, which can be externally connected to 16GB/32GB/64GB/128GB/256GB eMMC modules(NO Include).
- The embedded NPU of Ornage pi 5 plus 8gb mini pc supports the hybrid operation of INT4/INT8/INT16/FP16, with the computing power up to 6Tops, which can meet the edge computing requirements of most terminal devices. Orange Pi 5 Plus supports the official operating system Orange Pi OS developed by Orange Pi, as well as operating systems such as Android 12, Debian 11, and Ubuntu 22.04.
- Orange pi 5 Plus Single Board Computer has rich interfaces, 2 HDMl output ports, 1 input HDMl port, and can be decoded up to 8K@60P Video, two PCIe
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

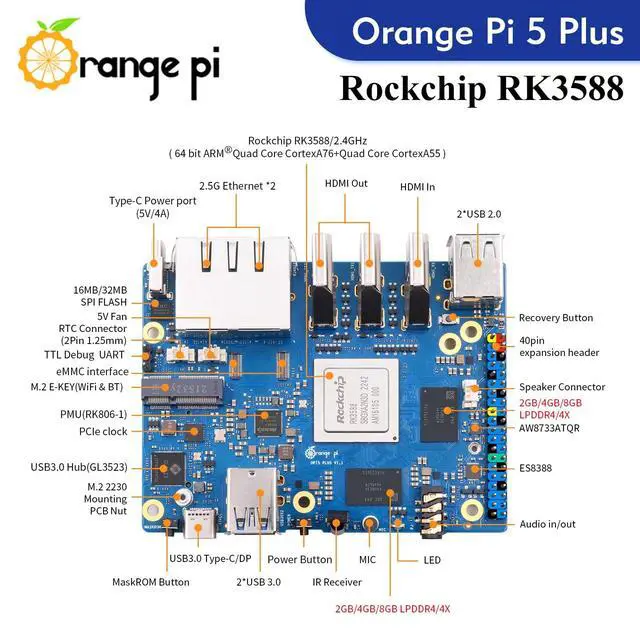

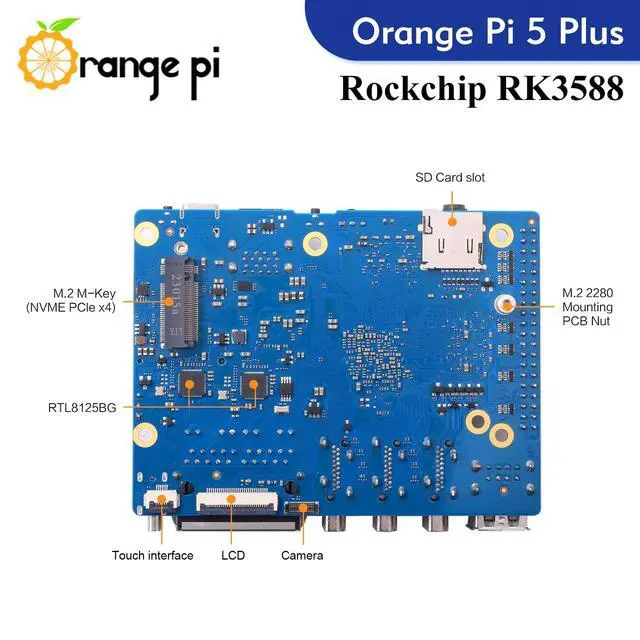

Product ParametersMain control chip: Rockchip RK3588 (8nm LP process)
CPU: 8-core 64-bit processor; Four Cortex-A76s and four Cortex-A55s and separate NEON coprocessorsThe Cortex-A76 clocked at 2.4GH z and the
Cortex-A55 clocked at 1.8GH zGPU: Integrated ARM Mali-G610Built-in 3D GPU
Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and
Vulkan 1.2NPU: The embedded NPU supports INT4/INT8/INT16/FP16 hybrid operation, with a computing power up to 6TopPMU:
RK806-1RAM: 4GB/8GB/16GB
(LPDDR4/4x)Storage: QSPI
Nor FLASH: 16MB/32MBMicroSD
card slot: up to 128GBeMMC flash socket, can external 16 gb / 32 gb / 64 gb / 128 gb / 256 gb eMMC moduleThe M. 2 2280 slot for NVMe SSDS (PCIe 3.0 x4) is up to 2, 000
MB/sUSB: 2xUSB 3.0; 2xUSB 2.0; 1xType-CVideo
Output: 2x HDMI 2.1 output up to 8K@60FPS1x Type-C (DP 1.4A ) output, up to 8K@30FPS1x HDMI input, up to 4K@60FPS1 x MIPI DSI 4 Lane output, up to 4K@60HzTP
Interface: 1x6Pin
FPC socketCamera: 1xMIPI CSI 4
LaneAudio:
CODEC: ES83881x3. Audio input/output with 5mm headphone jack1xMIC input1xHDMI 2.1 eARC1x speakerEthernet: 2xPCIe 2.5G LAN (RTL8125BG)

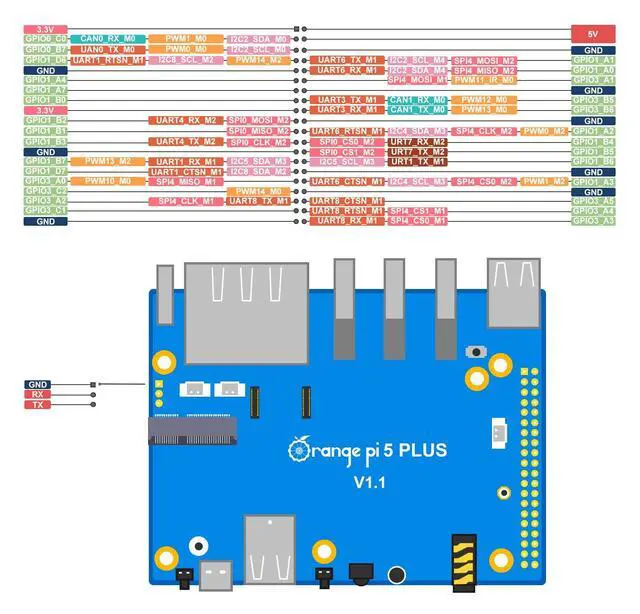

Expansion port: 40Pin double-row pin, with
the following reuse functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO. PCIe M.
2 m-key Socket: M. 2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSDPC
Ie M.
2 e-key Socket: M. 2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB 2.0, supporting the 2230
Wi-Fi6 /BT moduleKey: 1x MaskROM key, 1xRECOVERY, 1x
switch on/off keyPower supply: Type
CPU: 8-core 64-bit processor; Four Cortex-A76s and four Cortex-A55s and separate NEON coprocessorsThe Cortex-A76 clocked at 2.4GH z and the
Cortex-A55 clocked at 1.8GH zGPU: Integrated ARM Mali-G610Built-in 3D GPU
Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and
Vulkan 1.2NPU: The embedded NPU supports INT4/INT8/INT16/FP16 hybrid operation, with a computing power up to 6TopPMU:
RK806-1RAM: 4GB/8GB/16GB
(LPDDR4/4x)Storage: QSPI
Nor FLASH: 16MB/32MBMicroSD
card slot: up to 128GBeMMC flash socket, can external 16 gb / 32 gb / 64 gb / 128 gb / 256 gb eMMC moduleThe M. 2 2280 slot for NVMe SSDS (PCIe 3.0 x4) is up to 2, 000
MB/sUSB: 2xUSB 3.0; 2xUSB 2.0; 1xType-CVideo
Output: 2x HDMI 2.1 output up to 8K@60FPS1x Type-C (DP 1.4A ) output, up to 8K@30FPS1x HDMI input, up to 4K@60FPS1 x MIPI DSI 4 Lane output, up to 4K@60HzTP
Interface: 1x6Pin
FPC socketCamera: 1xMIPI CSI 4
LaneAudio:
CODEC: ES83881x3. Audio input/output with 5mm headphone jack1xMIC input1xHDMI 2.1 eARC1x speakerEthernet: 2xPCIe 2.5G LAN (RTL8125BG)
Expansion port: 40Pin double-row pin, with
the following reuse functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO. PCIe M.
2 m-key Socket: M. 2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSDPC
Ie M.
2 e-key Socket: M. 2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB 2.0, supporting the 2230
Wi-Fi6 /BT moduleKey: 1x MaskROM key, 1xRECOVERY, 1x
switch on/off keyPower supply: Type
