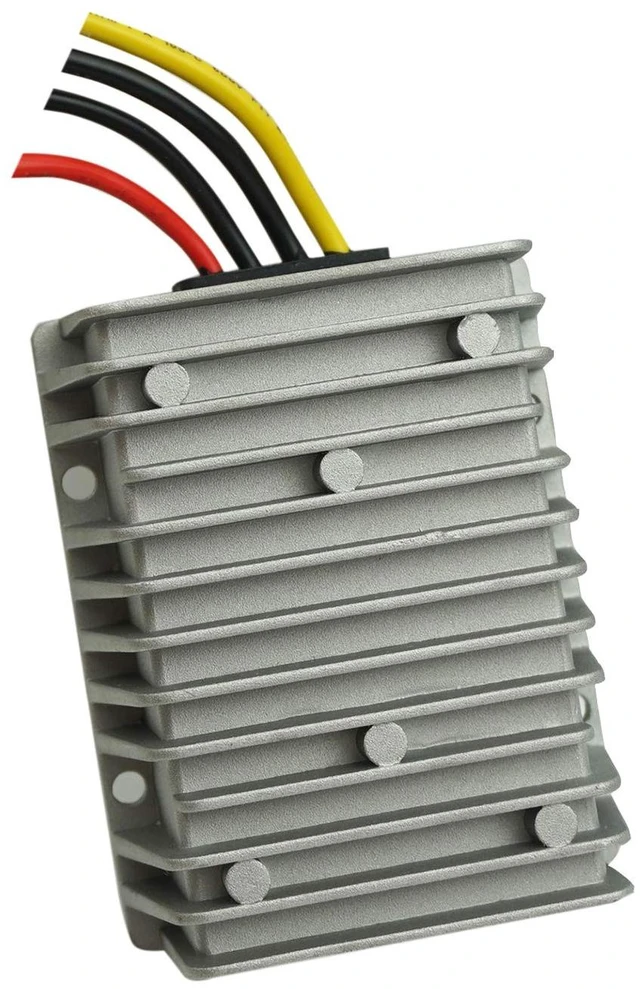

Proshopping Golf Cart DC Converter Regulator, 36V 48V Step Down to 12V 30A
- Wide DC duck converter regulator DC 36V 48V to DC 12V 30A 360W - input voltage range DC 30-60V; output voltage: DC 12V(non-adjustable); output current: 30A(max.); output power 360W.
- High and stable conversion efficiency - synchronization rectification technology-multiple intelligent protection function. Die-cast aluminum shell, expoxy potting, cooling by free air convection. High conversion efficiency up to 96%. 100% full rated power and stable output voltage.
- 5 Safty Protections - Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operating, over 100,000 hours lifetime
- Waterproof and portable - with aluminum alloy shell, silicone gel package, IP68 waterproof rating, 100% waterproof , can work in rain; small and portable, easy to install
- Wide application - fits golf cart (ezgo) LED light bar, club car (yamaha) headlights and taillight, forklifts, electric bike, bus, cmb, large trucks, LED strip lig
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

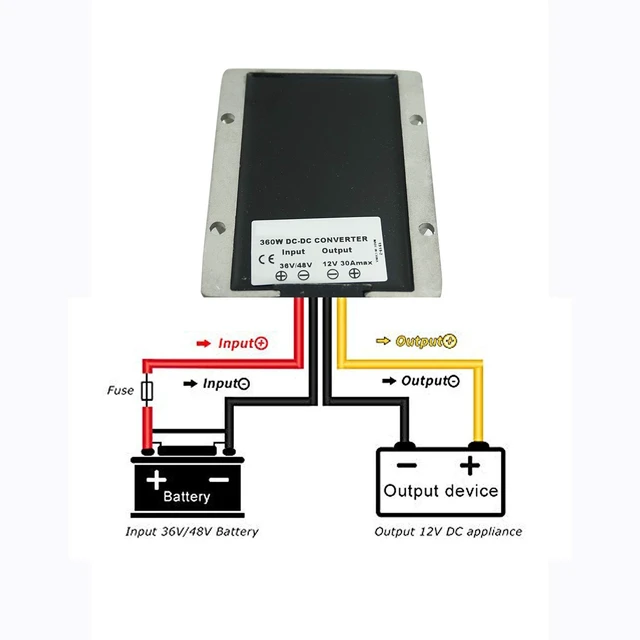

This dc-dc converter regulator is designed for 36V or 48V vehicles. It can step down DC 36V/48V to constant DC 12V voltage driving 12V appliancesHigh conversion efficiency and waterproof. High quality DC 36V 48V to 12V step-down converter, 30A, 360WHigh and stable conversion efficiency up to 96% maxWaterproof die-cast aluminum housing with epoxy sealed containersAnti-shock protection, lifetime up to 100, 000 hoursSmall compact size, light weight, convenient to install5
Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operatingNon-Isolated
ModuleApplications: fits golf cart (ezgo) LED light bar, club car (yamaha) headlights and taillight, forklifts, electric bike, bus, cmb, large trucks, LED strip lights, display moniter screen of bus and taxi, car radio audio device, LCD TV, DVD, speaker system, GPS, motor, air-conditioner, electric fan and any 12v
DC appliancesInput voltage: 36V/48V
DCInput range: 30-60V
DCOutput voltage: 12V
DCOutput current: 30AOutput
Rated Power:
360WEfficiency: 96%
maxOperating temperature: -40
~ 80Waterproof rating:
IP68MTBF: 100, 000

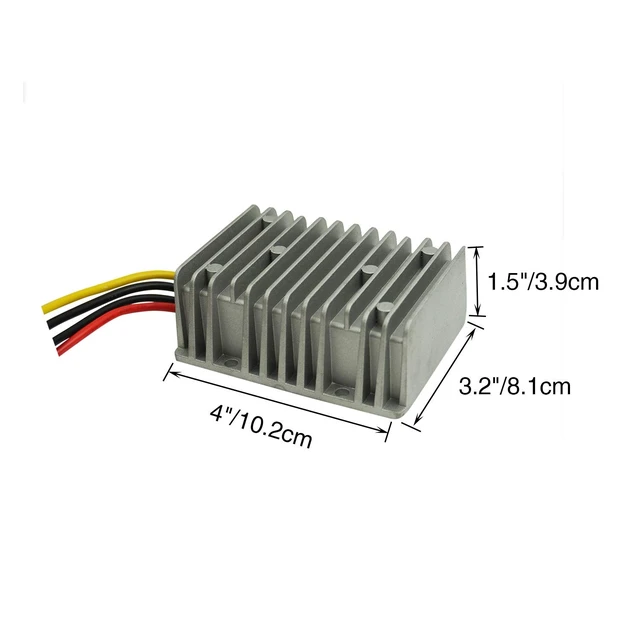

hoursDimensions (WxDxH): 4"x 3.2" x 1.5" / 10.2 x 8.1 x 3.9 cmFixing
Hole Diameter: 5mm(
0.2 inch)Net weight18oz/510gPackage included: 1 x
DC converterTips: 1. Can not used long time under the max listed load power. Choose the twice bigger ampere than your machine need is perfect. Because it can avoid long time max load workenhance the converter's work lifetime2. Please ensure enough input voltage and power so that the module will output enough voltage and power
Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operatingNon-Isolated
ModuleApplications: fits golf cart (ezgo) LED light bar, club car (yamaha) headlights and taillight, forklifts, electric bike, bus, cmb, large trucks, LED strip lights, display moniter screen of bus and taxi, car radio audio device, LCD TV, DVD, speaker system, GPS, motor, air-conditioner, electric fan and any 12v
DC appliancesInput voltage: 36V/48V
DCInput range: 30-60V
DCOutput voltage: 12V
DCOutput current: 30AOutput
Rated Power:
360WEfficiency: 96%
maxOperating temperature: -40
~ 80Waterproof rating:
IP68MTBF: 100, 000
hoursDimensions (WxDxH): 4"x 3.2" x 1.5" / 10.2 x 8.1 x 3.9 cmFixing
Hole Diameter: 5mm(
0.2 inch)Net weight18oz/510gPackage included: 1 x
DC converterTips: 1. Can not used long time under the max listed load power. Choose the twice bigger ampere than your machine need is perfect. Because it can avoid long time max load workenhance the converter's work lifetime2. Please ensure enough input voltage and power so that the module will output enough voltage and power
