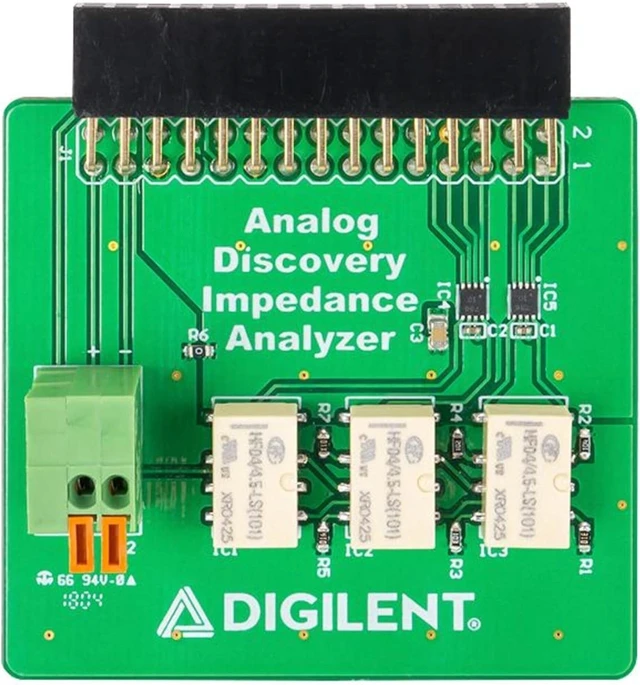

Digilent Impedance Analyzer for Analog Discovery
- 2-wire Impedance Analyzer integrates with the Impedance Analyzer tool in WaveForms
- 50pF - 500F Capacitance Measurement Range
- 10H - 1000mH Inductance Measurement Range
- 1Hz - 15MHz Excitation Frequency Range
- Note: Use of this adapter requires WaveForms version 3.8.2 or later.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The Impedance Analyzer for Analog Discovery was designed with automaticallyadjusting reference resistors and relays to aid in use of the ImpedanceAnalyzer tool in WaveForms. With the Impedance Analyzer accessory, theAnalog Discovery will automatically select the most appropriateconfiguration for the attached unknown impedance. The Impedance Analyzer isloaded with the 215 Analog Discovery connector, which makes it compatiblewith Analog Discovery 2 as well as Analog Discovery Legacy.
